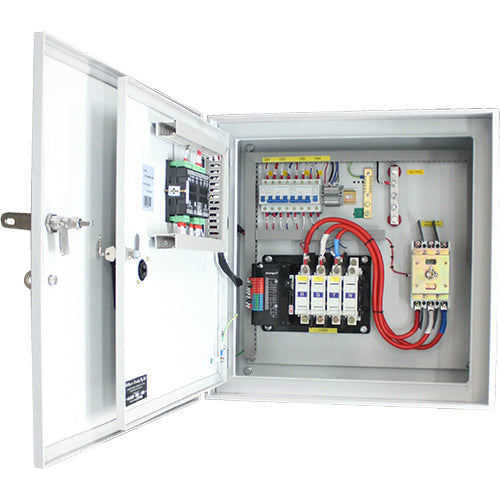

Automatic transfer switch buying guide for Australia

Automatic Transfer Switch: How to Choose the Right Generator Transfer Switch in Australia

Byline: Prepared by Mick’s Gone Bush power specialists. Reviewed by a senior licensed electrician. Last reviewed: 14 February 2026.

Introduction: automatic transfer switch basics and why outages cost Aussies

Blackouts can stop homes, farms, and shops. They can ruin stock, halt milking, and break equipment. An automatic transfer switch (ATS) keeps power on by sensing a mains fault and changing supply to a generator fast. It protects people and gear. In Australia, a generator transfer switch Australia setup must be installed to AS/NZS 3000 and AS/NZS 3010 by a licensed electrician. This guide explains how a transfer switch generator system works, what to choose, and how to stay compliant.

• What it is: an ATS detects mains loss and switches load to a backup genset in seconds without operator input.

• Why it matters: reduces downtime and protects sensitive electronics; modern ATS units can transfer in under 100 ms.

• Where it fits: homes, farms, retail, aged care, telecom, and industrial sites.

• Compliance: design and installation must meet AS/NZS 3000 and AS/NZS 3010.

Sources: (source) (source) (source)

What Is a Generator Transfer Switch? (generator transfer switch)

A generator transfer switch is a safety device that connects your load to only one source at a time. It isolates the utility (mains) from the generator and selects the source safely. This stops dangerous backfeed and allows clean changeover.

• Automatic transfer switch (ATS): monitors mains, starts the genset, and transfers power without you touching anything.

• Auto generator transfer switch: another name for ATS. It watches voltage, frequency, and phase. It transfers when limits are out.

• Use cases: homes, small business, farms (water pumps, cool rooms), larger plants, telecom racks, and medical spaces.

In simple terms, a generator transfer switch is your safety gate. It lets only one power source feed your wiring at any time.

Sources: (source) (source)

Core Components of an Automatic Transfer Switch (automatic transfer switch)

Knowing the parts helps you compare models and features.

• Control unit: Measures mains voltage, frequency, and phase. Decides when to start the genset and when to switch.

• Power contacts: Heavy-duty contactors or motorised changeover switches. They connect your load to either mains or generator. Built to withstand fault currents.

• Voltage and frequency sensors: Detect undervoltage, overvoltage, phase loss, and frequency drift. Trigger action when out of limits.

• Transfer mechanism: Executes open-transition (break-before-make) or closed-transition (make-before-break) changeover.

• Status indicators/HMI: Lights, displays, or touch panels show “source available”, “load on”, alarms, and test mode.

• Protection and interlocks: Electrical and mechanical interlocks prevent both sources from being connected at once.

• RCD/RCBO integration: Many residential ATS boards include or work with RCD/RCBOs. They keep earth-leakage protection working on mains and on generator.

Sources: (source) (source)

How an Automatic Transfer Switch Works (auto generator transfer switch)

Here is the step-by-step flow in plain terms.

• Normal mode: Mains is healthy. The ATS feeds your load from mains and keeps monitoring voltage, frequency, and phase.

• Detect problem: If mains sags, a phase is lost, or power drops out, the controller decides to act.

• Start the generator: The ATS sends the start signal. The genset starts and warms up to stable values (per generator class, often referenced in ISO 8528).

• Transfer: When generator voltage and frequency are stable, the ATS opens the mains side, then connects the generator to the load.

• Return to normal: When mains returns and stays stable for the set time, the ATS transfers back. It starts a cool-down and then stops the genset.

• Speed: Many modern ATS units complete transfer in under 100 ms, which limits disruption to sensitive electronics.

Sources: (source) (source)

Switching Configurations and Transition Types for Transfer Switch Generator Setups (transfer switch generator)

Pick the right configuration to match your supply and loads.

Single-phase vs three-phase

• Single-phase ATS: For 230/240 V Australian homes and small sites.

• Three-phase ATS: For commercial and industrial boards or bigger loads.

Pole configurations

• 2P: Active and neutral switching for single-phase where design calls for it (or active-only where neutral arrangements permit).

• 3P/4P: Three-phase switching. Choose 4P if a switched neutral is part of the design.

Transition types

• Open-transition (break-before-make): Brief break in supply; simplest and most cost-effective.

• Closed-transition (make-before-break): Millisecond overlap for “bumpless” transfer; needs sync control.

• Delayed transition: Adds a dwell time to allow generator warm-up or controlled retransfer.

Practical tip: Use open-transition for general loads (lights, fridges, pumps). Choose closed-transition for critical processes or sensitive equipment where even a flicker is a problem.

Sources: (source) (source)

Integrations With Modern Power Systems (auto generator transfer switch)

Many sites now run mixed power sources. Make sure your ATS plays nicely with them.

• Inverter generators: Some controllers struggle with variable frequency/voltage waveforms. Check ATS compatibility for inverter outputs before you buy.

• Solar + battery + generator hybrids: Use an ATS or hybrid controller that gives solar/battery priority and starts the genset only when needed. Add load shedding to keep within generator kW.

• Remote monitoring: RS485, Ethernet, or web dashboards let you view status, alarms, and history. Great for unmanned or remote sites.

• Load shedding: Program non-critical circuits to drop if generator capacity is exceeded during start-up or heavy loads.

Sources: (source) (source) (source)

Automatic vs Manual Transfer Switch for Generators (manual transfer switch)

Both options can be safe if installed correctly. The right choice depends on outage risk, budget, and who will operate the system.

When to choose a manual transfer switch for generator

A manual transfer switch for generator can suit sites with portable gensets, low outage risk, and a trained person always on site.

• Start the generator.

• Isolate mains first (mechanical interlock prevents cross-connection).

• Change over to generator supply.

• On mains return, switch back, then cool down and stop the genset.

Always use a licensed electrician for design and installation. This is required under AS/NZS standards and by most insurers.

Sources: (source) (source) (source)

How to Select the Right Transfer Switch for Generator in Australia (transfer switch for generator australia)

Compliance first

• All work must meet AS/NZS 3000 (Wiring Rules) and AS/NZS 3010 (Generating Sets).

• Only a licensed electrician may design and install permanently connected generator systems.

• Check any local supply authority requirements (e.g., Energex, Ergon Energy, state distributors) before works.

Sizing the switch

• Rate the ATS for the highest of: maximum load current, service/main switch rating, and generator output.

• Rule-of-thumb headroom: add 20–25% for motor inrush and future growth.

• Three-phase example: 10 kVA ≈ 15 A per phase at ~0.8 PF. Choose at least a 20 A 3Φ ATS.

• Single-phase example: 10 kVA ≈ 40–50 A. Choose a 63–80 A 1Φ ATS.

• Quick refresher:

• I (A) ≈ kVA × 1000 / (√3 × V × PF) for three-phase

• I (A) ≈ kVA × 1000 / (V × PF) for single-phase

Neutral and earthing

• Australia uses MEN (Multiple Earthed Neutral). Do not switch the neutral on mains supply unless the design requires otherwise.

• A switched neutral may be needed when on generator to avoid circulating currents and to maintain correct earthing.

• Ensure RCD/RCBOs operate correctly on both power sources. Use ATS boards designed for RCD compatibility or add external protection.

Environment and enclosures

• Indoor/dry: IP54–IP65 metal boards.

• Outdoor/corrosive: stainless or premium coated enclosures; higher IP rating.

• Dusty/wet: sealed cabinets, drainage, elevated mounting.

Feature checklist

• Exercise timer for routine genset runs.

• Phase rotation protection.

• Load priority and shedding.

• Surge protection devices.

• Remote monitoring (RS485/Ethernet/web).

• Adjustable voltage/frequency thresholds and delays.

Sources: (source) (source) (source)

ATS and Manual Transfer Switch Options in Australia (generator transfer switch australia)

Australia has options from simple, budget switches to advanced, high-amp systems with monitoring.

Residential (40–200 A)

• Single-phase 40 A ATS boards with integrated RCDs and outlet distribution are common for retrofit standby systems.

• Manual switches remain a budget-friendly pick for portable generators and infrequent outages.

Commercial/Industrial (200–1600 A)

• Three-phase ATS with open or closed-transition controllers.

• Bypass-isolation variants for critical uptime and safe maintenance.

• Well-supported brands are stocked locally with service back-up.

Lead times and indicative pricing

• Stocked ATS: usually 2–5 business days in Australia.

• Custom builds: around 4–8 weeks depending on complexity.

• Budget manual switches: about AUD $300–$800 + installation.

• Mid-range 40 A single-phase ATS: about AUD $1,200–$2,500 + installation.

• Premium industrial ATS with monitoring: about AUD $4,000–$15,000+ + installation.

• Typical installation labour: around AUD $1,500–$5,000 depending on scope and switchboard condition.

Explore generator transfer switch australia options and real-world generator considerations as part of planning.

Sources: (source) (source)

Installation and Commissioning of an Automatic Transfer Switch (generator transfer switch)

In Australia, this is licensed work. It must comply with AS/NZS 3000 and AS/NZS 3010. Your electrician will also check any local supply authority rules.

Process overview

• Site assessment: supply type, load profile, generator location, environment.

• Switch selection: rating, poles, transition type, features.

• Permits/approvals: confirm with your supply authority if required.

• Wiring: mains/generator/load cabling into the ATS per AS/NZS. Earthing and MEN considerations.

• Controller setup: set voltage/frequency thresholds, delays, cool-down time.

• Testing: simulate failures and restorations. Check indicators and alarms.

• Notification: log or notify the authority if the jurisdiction requires it.

Commissioning tests to document

• Phase loss detection and correct transfer/retransfer timing.

• Generator start/stop and cool-down logic.

• RCD/RCBO test in both supply modes.

• Load transfer under realistic site loads.

Routine maintenance

• Monthly visual checks of enclosures, lights, and signs of heat or moisture.

• Annual functional test and generator exercise under load.

• Every three years: full inspection and compliance check by a licensed electrician.

Sources: (source) (source)

Safety Essentials and Common Mistakes (manual transfer switch and automatic transfer switch)

• Backfeed hazards: Never connect a generator without a compliant transfer method. Backfeed can energise utility lines, endanger workers, and void insurance. It is illegal. Use an ATS or a properly installed manual transfer switch.

• Interlock kits vs true transfer switches: Interlocks are cheaper but depend on correct steps. A dedicated ATS adds logic and safer operation for standby systems.

• Labelling and isolation: Fit warning labels. Mark isolators clearly. Use lockout/tagout for maintenance.

• Generator safety: Do not run generators indoors. Ensure ventilation and clearances. Keep fuel lines secure and use non-return check valves.

Sources: (source)

Real-World Use Cases for Automatic Transfer Switch Solutions (generator transfer switch)

• Medical and care facilities: Closed-transition ATS avoids even split-second interruptions for sensitive equipment. Higher cost, but continuity is critical.

• Retail cold chain: ATS with load shedding keeps fridges and freezers on while dropping non-critical loads if the genset is near capacity.

• Construction and telecom cabinets: Rugged, high-IP ATS with surge protection suits dusty or coastal sites. Remote monitoring reduces site visits.

• Solar + battery + generator hybrids: Controllers prioritise solar and battery discharge, then start the genset. This saves fuel and adds resilience on bush blocks and stations.

Sources: (source) (source)

Frequently Asked Questions

1) What is an automatic transfer switch and how does it differ from a manual transfer switch?

An automatic transfer switch monitors mains and switches to the generator when it detects a fault. A manual transfer switch needs a person to operate the handle and change sources.

Sources: (source) (source)

2) Do I need a manual transfer switch for generator if I use a portable genset?

Yes. You need a compliant manual transfer switch or interlock to prevent backfeed and meet AS/NZS rules.

Source: (source)

3) What is an auto generator transfer switch and will it work with inverter generators?

It is another name for ATS. Many work with inverter generators, but you must confirm the controller accepts inverter-style outputs before purchase.

Source: (source)

4) How much does a generator transfer switch Australia installation cost?

As a guide, the switch may range from about AUD $300 for basic manual units to $15,000+ for large industrial ATS, plus installation of about AUD $1,500–$5,000 depending on scope.

5) Can I install a transfer switch for generator Australia myself?

No. A licensed electrician must design and install it to AS/NZS 3000 and AS/NZS 3010, and any local authority rules.

Sources: (source) (source)

6) What size ATS do I need for a 10 kVA generator?

Three-phase 10 kVA is about 15 A per phase. Choose at least a 20 A 3Φ ATS. Single-phase 10 kVA is about 40–50 A. Choose a 63–80 A 1Φ ATS with headroom.

Closing: choosing the right transfer switch generator setup in Australia

Power fails happen across Australia, from coastal storms to inland heatwaves. A well-sized, compliant ATS or manual changeover keeps lights on and gear safe. Match the switch to your load, pick the right transition type, allow headroom, and design earthing correctly for MEN. Ensure RCDs work in both modes. Integrate with solar, batteries, or inverter generators only when the controller is compatible. Above all, use a licensed electrician and follow AS/NZS 3000 and AS/NZS 3010. With the right plan, your backup system will be ready when you need it.
