How to Size and Choose a 3 Phase Diesel Generator

3 Phase Diesel Generator 101: Complete Technical Guide for Workshops, Industry & Backup Power

The key to smooth, reliable electricity in high-demand environments often circles back to the 3 phase diesel generator. These generators stand as the gold standard for preventing power failures and minimizing equipment trips. By the end of this post, you'll have the knowledge to properly size, choose, and operate a generator that can power anything from CNC machines to data-centre chillers. With over 100 years of adoption in utilities, three-phase systems are unrivaled in their ability to handle large loads efficiently (Source).

Electrical Phase Fundamentals – Single vs Split vs Three

Understanding the differences between single-phase, split-phase, and three-phase power is crucial for determining your generator needs:

• Single Phase Diesel Generator: Uses a single sinusoidal AC waveform, typically found in residential environments with 120 V/240 V power delivery (Source).

• Split Phase Generator: Common in North America, offering two 120 V legs 180° apart for medium loads and better versatility than single-phase (Source).

• Three Phase Generator: Utilizes three conductors, each 120° apart, providing 1.732 times the power of a single-phase system at the same current. Ideal for industrial settings that demand balanced power distribution.

A quick comparison can highlight the key specifications like voltage capacity, kVA limits, motor starting torque, and load balancing capabilities.

Inside a 3 Phase Diesel Generator

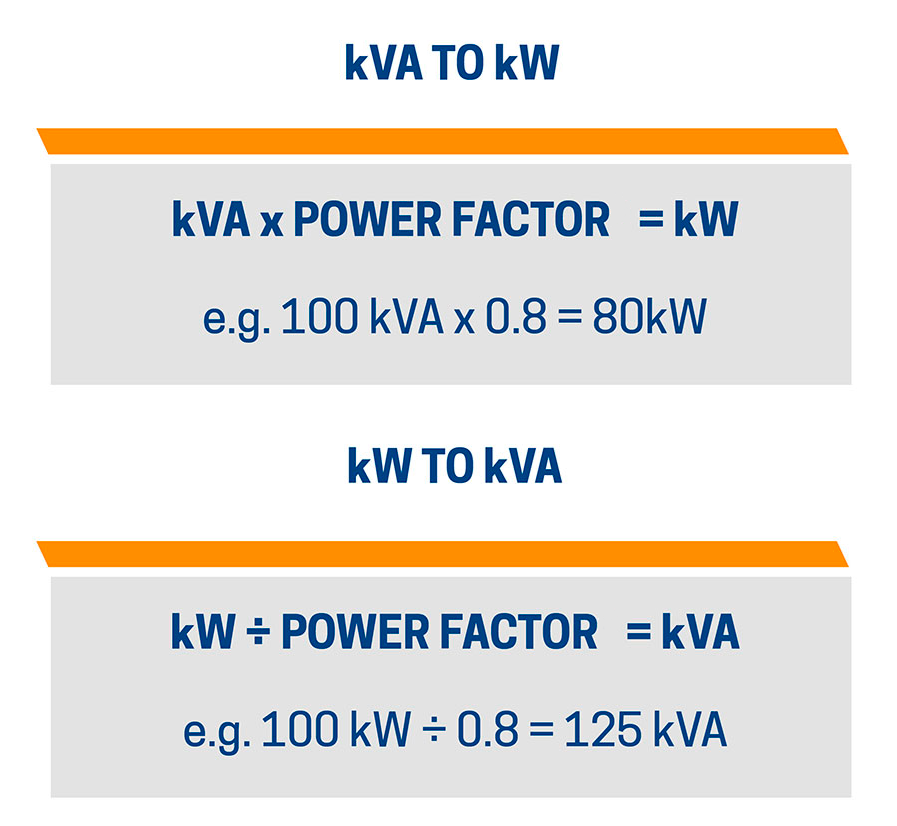

The mechanical-to-electrical journey within a 3 phase diesel generator begins with a diesel engine driving an alternator with three isolated windings. Each winding phase is 120° offset, ensuring consistent power delivery at all times. By using the equation P_total = √3 × V_line × I_line × PF, a lower current is achieved for the same kW output, allowing for smaller cables.

This overlap of waves results in continuous output, crucial for industrial machinery operations. It's crucial to address cooling, automatic voltage regulation (AVR), and governor systems, which are finely tuned for industrial duty, ensuring operational longevity and efficiency.

Key Applications & Real-World Use Cases

• Industrial & Manufacturing: These setups often require three-phase power to handle multi-motor conveyors and injection molding machines. The inrush currents are usually less than 300% of the generator's short-time rating, ensuring performance stability.

• Commercial Buildings: Essential for powering elevators, HVAC systems, and large office equipment with balanced 480 V/415 V supplies as a three phase backup generator solution.

• Specialized Applications: For high-load operations like welding, a three phase welder generator is necessary to handle 300-amp stick or MIG welding equipment.

Voltage Choices – 240 V vs 415 V & the “High-Voltage” Question

A foundational decision when selecting a generator involves understanding regional voltage standards. The choice between using a 415v diesel generator versus its 240 V counterpart often rests on the application and efficiency requirements.

• 240V Supply Generators: Suit smaller systems with moderate requirements.

• 415V Supply Generators: These high voltage generators allow for efficient heavy machinery operation by reducing current and therefore losses, while supporting larger electrical installations (e.g., 50 kW at 0.8 PF with 150 A at 240 V vs 70 A at 415 V).

Converting Existing Single-Phase Facilities

If you're upgrading existing infrastructure, there are several conversion options to consider:

• Static Phase Converter: Simple and cost-effective but limited in handling large inrush currents.

• Rotary Phase Converter: Provides more balanced power but at a higher cost and maintenance requirement.

• Variable-Frequency Drive Generation: Efficiently converts power but requires careful configuration and ongoing management.

• Full Generator Set: Installing a new three-phase setup ensures optimal performance but comes with the highest cost of entry.

When comparing phase converter vs generator, consider factors such as cost, surge handling, continuous rating, and maintenance needs.

Sizing & Load Balancing Best Practices

Proper generator sizing is key, typically sizing at 125% of the largest motor's Locked Rotor Amps (LRA) plus the running kW of other loads. Load balancing is also essential for balancing loads on three phase generator, with each phase kept within ±10% of the current to optimize efficiency and compliance.

For 3 phase motors on generator tips, your generator should be oversized by up to 2× the motor HP for across-the-line starts, or alternatively, with soft-starters or VFD configurations.

Installation, Safety & Compliance

• Earthing/Grounding: Adhere to IEEE 142, understanding neutral vs floating-wye considerations.

• Automatic Transfer Switch (ATS): Understand open-transition versus closed-transition for critical load durability.

• Emissions & Noise Regulations: Utilize Tier 4 Final diesel engines where applicable.

• Local Codes: Compliance with NEC Article 445 in the US and AS/NZS 3000 in Australia is imperative for legal and safety standards.

Operation & Maintenance Schedule

• Daily Checks: Verify fuel level, oil pressure, and coolant levels.

• 250-Hour Service: Change oil and filters, and perform insulation resistance tests.

• Annual Load-Bank Test: Conduct an 80% rated kW test for 2 hours to ensure reliability under load.

• Recordkeeping: Maintain meticulous records for warranty purposes and E-E-A-T trust signals.

Frequently Asked Technical Questions (FAQ Snippets)

• “Can I parallel two single phase diesel generators to mimic a 3-phase?” – It's technically unfeasible without a phase-shifting inverter.

• “What’s the efficiency drop when running light loads?” – Diesel inefficiency increases with wet-stacking below 30% kW.

• “How to retrofit 3 phase home workshop power legally?” – Requires proper permits and lock-out tag procedures.

Conclusion & Action Steps

Understanding and utilizing a 3 phase diesel generator is paramount for ensuring smooth power delivery, easier motor start-ups, and scalability for the future. It’s advised to consult with a qualified electrician or engineer to determine your exact requirements and ensure a properly sized system from the outset.

Remember to pay particular attention to three phase backup generators and 3 phase industrial generator options as you prepare for your power needs.
