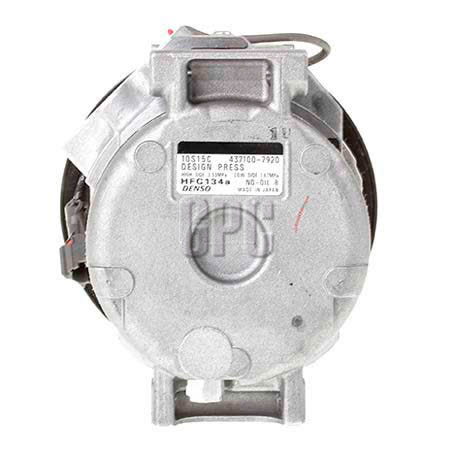

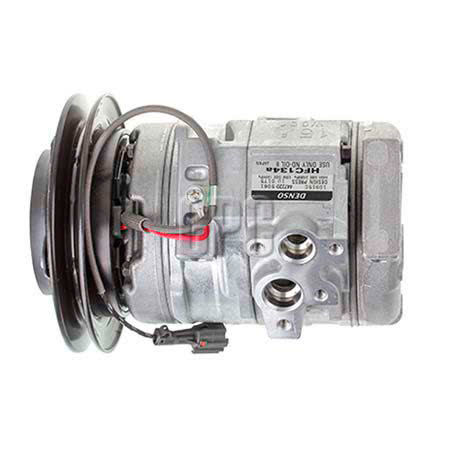

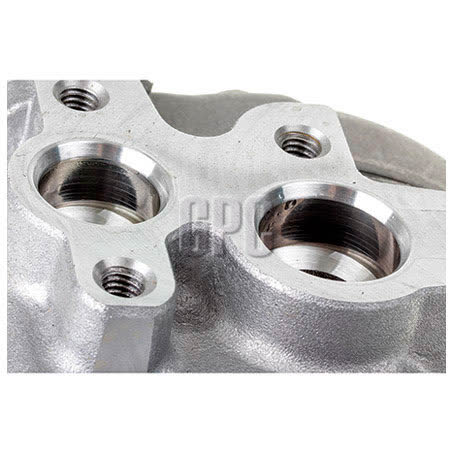

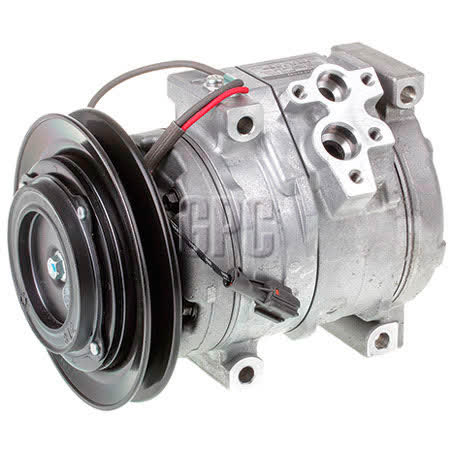

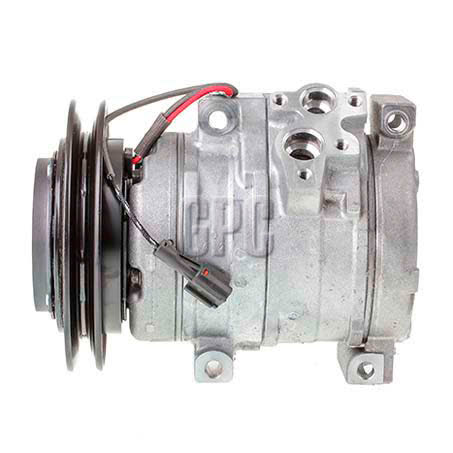

Denso Air Conditioning Compressor 24V Direct Mount 10S15C CXD6421

The Denso Air Conditioning Compressor 24V Direct Mount 10S15C, part number CXD6421, is a pad-mount compressor listed with a 143mm clutch diameter and a 24V electrical setup. It is supplied as an individual unit and carries a one year warranty.

This compressor is noted as a Denso unit with series 10S15C, pulley section A, and a direct mount fitting type. The listed application is Isuzu Giga 15.7L from 01/2007 onward, so matching the compressor style and vehicle application is important before ordering.

Other useful identifiers include a gauge line of 65mm, a top mount dimension of 90mm, a bottom mount dimension of 83mm, and oil type PAG 46. The unit weighs 6.9kg and does not include a dust cover.

Key Features

• 24V air conditioning compressor
• Denso 10S15C series
• Direct mount with pad fitting type
• 143mm clutch diameter
• Pulley section A
• Suitable for Isuzu Giga 15.7L from 01/2007 onward

Specifications

• Brand: Denso
• Part No.: CXD6421
• Product type: Air conditioning compressor
• Voltage: 24V
• Compressor mounting: Direct mount
• Fitting type: Pad
• Series: 10S15C
• Clutch diameter: 143mm

Verified fitment details

• Isuzu Giga 15.7L from 01/2007 onward

Application and Buying Notes

Before ordering, compare the part number CXD6421 and the compressor series 10S15C against the unit being replaced. The mounting style is direct mount with a pad fitting type, so the physical layout needs to match the vehicle’s existing air conditioning setup.

The listed application is Isuzu Giga 15.7L from 01/2007 onward. If the vehicle is outside that application, or if the existing compressor uses a different mount, clutch size, or pulley arrangement, the part should be checked carefully before purchase.

Key dimensions provided here are the 143mm clutch diameter, 65mm gauge line, and the 90mm top mount and 83mm bottom mount notes. These measurements matter when confirming clearance, bracket alignment, and whether the replacement unit matches the removed compressor.

The compressor is a 24V unit, so it is intended for a 24V system. If the electrical system, connector arrangement, or refrigerant service details differ from the existing installation, confirm those details with a qualified parts adviser or technician before fitting.

Oil type is listed as PAG 46. Correct oil specification and quantity are important when installing an air conditioning compressor, and the surrounding system should be inspected for contamination, leaks, or other damage before the replacement part is put into service.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXD6421 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Compressor Mounting Direct Mount, Pulley Section A, Suits Unit Make Denso, Note Oil Type Pag 46, C - C Top mount 90mm, C -C Bottom mount 83mm, Dust Cover Y/N No, Product Group 2 AC COMPONENTS.

Additional published details for cross-checking include Part No. CXD6421, Brand DENSO, Description Denso Air Conditioning Compressor 24V Direct Mount 10S15C, Clutch Diameter 143mm, Fitting Type Pad, Series 10S15C, Voltage 24, Gauge Line 65mm, Weight 6.9kg, Product Group 1 COOLING.

Denso Air Conditioning Compressor 24V Direct Mount 10S15C. Part number CXD6421 should be checked first. Listed voltage is 24. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is A. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXD6421, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Confirm fitment by matching part number CXD6421, the 10S15C series, 24V system requirement, direct mount pad fitting, and the stated Isuzu Giga 15.7L from 01/2007 onward application before buying.

FAQ

What is the part number for this compressor?

The listed part number is CXD6421. For this listing, part number CXD6421 is the main reference point. Listed voltage is 24. Published fitment references include ISUZU C/E SERIES, ISUZU C/E SERIES 1999, ISUZU C/E SERIES 2000. These details should still be checked against the original unit before ordering.

What vehicle application is provided for this compressor?

It is listed to suit Isuzu Giga 15.7L from 01/2007 onward. For this listing, part number CXD6421 is the main reference point. Listed voltage is 24. Published fitment references include ISUZU C/E SERIES, ISUZU C/E SERIES 1999, ISUZU C/E SERIES 2000. These details should still be checked against the original unit before ordering.

What voltage is this compressor?

It is a 24V compressor. For this listing, part number CXD6421 is the main reference point. Listed voltage is 24. Published fitment references include ISUZU C/E SERIES, ISUZU C/E SERIES 1999, ISUZU C/E SERIES 2000. These details should still be checked against the original unit before ordering.

What series is the compressor?

The compressor series is 10S15C. For this listing, part number CXD6421 is the main reference point. Listed voltage is 24. Published fitment references include ISUZU C/E SERIES, ISUZU C/E SERIES 1999, ISUZU C/E SERIES 2000. These details should still be checked against the original unit before ordering.

Does it use a direct mount fitting?

Yes. The compressor mounting is listed as direct mount, with a pad fitting type. For this listing, part number CXD6421 is the main reference point. Listed voltage is 24. Published fitment references include ISUZU C/E SERIES, ISUZU C/E SERIES 1999, ISUZU C/E SERIES 2000. These details should still be checked against the original unit before ordering.

What warranty is supplied?

It carries a one year warranty. For this listing, part number CXD6421 is the main reference point. Listed voltage is 24. Published fitment references include ISUZU C/E SERIES, ISUZU C/E SERIES 1999, ISUZU C/E SERIES 2000. These details should still be checked against the original unit before ordering.
