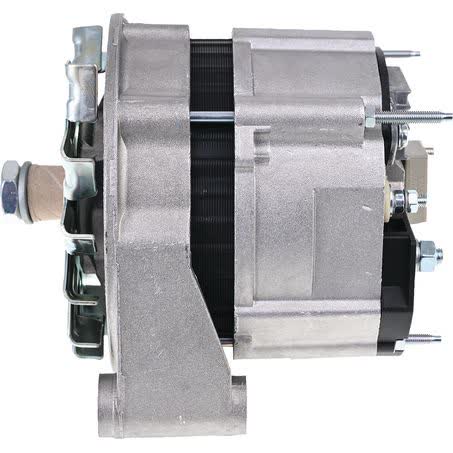

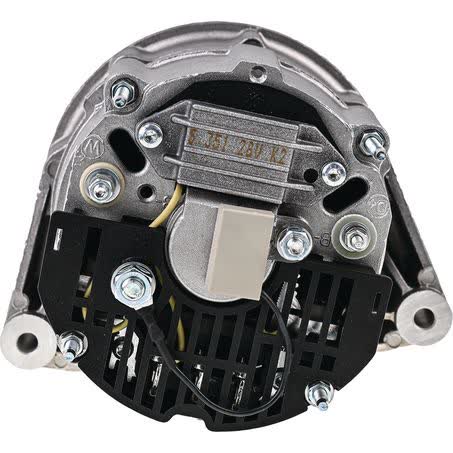

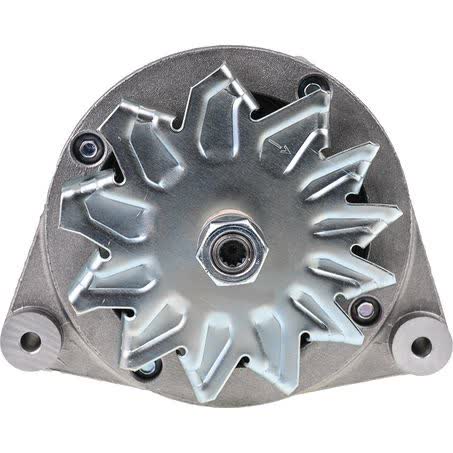

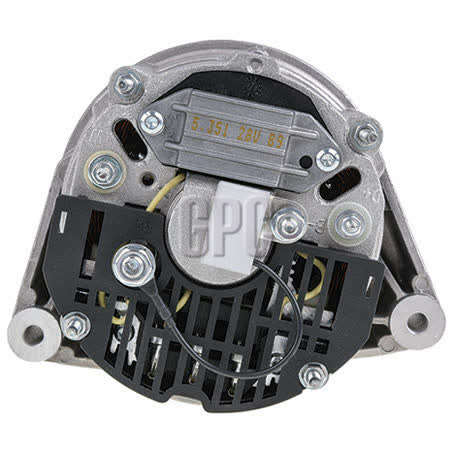

Mahle Alternator 24V 55A MG384

This MAHLE alternator is a new 24V, 55A unit under part number MG384. It is listed with an internal regulator, clockwise rotation, a single leg alternator mount, and no belt pulley fitted, so it suits buyers who need those exact physical and electrical details matched before ordering.

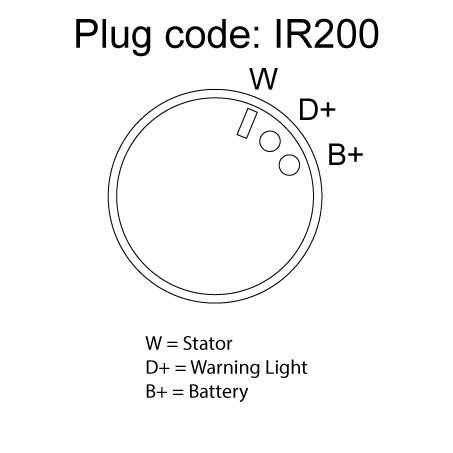

The unit is supplied each and carries a one year warranty. Key mounting checks include a 56mm mount leg thickness, 56.0mm mounting bores distance, 156mm mount centre to centre, two mounting bores, an 8mm pivot hole diameter, and an 8mm adjusting hole diameter. The shaft diameter is 17mm and the connector / clamp is W.

With a 24V system and 55A charge current, this alternator is intended for applications that call for that exact voltage and output. It is a MAHLE branded part, described as Mahle Alternator 24V 55A, and the product is identified as rotating electrical in the supplied specifications.

Packaging details are also listed for handling and storage: 24.8 length, 17.50 height, and a weight of 4.84kg. If you are comparing against a removed unit, the part number MG384, rotation direction, pulley arrangement, and mounting dimensions are the most useful checkpoints.

Key Features

• 24V alternator with 55A charge current
• New unit, supplied each
• Internal regulator
• Clockwise rotation
• Single leg alternator mount
• Without belt pulley

Specifications

• Voltage: 24V
• Charge current: 55A
• Power rating: 55 amp
• Part No.: MG384
• New / Reman.: New
• Warranty: One year
• Rotation: CW
• Regulator type: Internal

Verified fitment applications

• DAF 85 CF
• DEUTZ BF4M1011F
• FORD CARGO
• JOHN DEERE 1050C
• JOHN DEERE 1050J
• JOHN DEERE 655C
• JOHN DEERE 655C-II
• JOHN DEERE 755C

Application and Buying Notes

Before ordering, confirm the removed alternator matches the key identifiers here: MG384, 24V, 55A, CW rotation, internal regulator, single leg mount, and without belt pulley. Those details are the quickest way to reduce the risk of receiving a unit that looks similar but does not match electrically or mechanically.

The mounting figures matter just as much as the electrical rating. Check the 56mm mount leg thickness, 56.0mm mounting bores distance, 156mm mount centre to centre, 8mm pivot hole, 8mm adjusting hole, and 17mm shaft diameter against the old unit or the vehicle application. Even a small difference in these measurements can affect installation.

This alternator is listed for specific applications including DAF 85 CF, DEUTZ BF4M1011F, FORD CARGO, selected JOHN DEERE machines, and selected LIEBHERR equipment. Use those applications as a guide only, then verify by part number, mounting style, connector type W, and whether your existing unit uses a belt pulley or a no-pulley arrangement.

If the existing alternator has a different regulator type, rotation direction, or mounting layout, do not rely on appearance alone. A 24V 55A alternator is only suitable where the system voltage, charge output, and physical mounting all line up with the replacement requirement.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MG384 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Mount Leg Thickness 56mm, Pivot Hole Diameter 8, Pulley Section Not Applicable, Rotation CW, Suits Unit Make Mahle, Alternator Mount Single Leg, New / Reman. New.

Additional published details for cross-checking include Alternator Charge Current [A] 55, Connector / Clamp W, Mounting Bores Distance 56.0, Packaging length 24.8, Packaging height 17.50, Weight 4.84kg, Product Group 1 ROTATING ELECTRICAL, Part No. MG384, Brand MAHLE, Description Mahle Alternator 24V 55A.

Mahle Alternator 24V 55A. Part number MG384 should be checked first. Listed voltage is 24. Listed output rating is 55. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Single Leg. Regulator type is Internal. Pulley configuration is Not Applicable. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number MG384, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 and output 55 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include DAF 85 CF, DAF 85 CF 1998, DAF 85 CF 1999, DAF 85 CF 2000, DEUTZ BF4M1011F, DEUTZ BF4M1011F 1980. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm fitment by matching part number MG384, voltage, charge current, rotation, regulator type, connector / clamp, and all mounting dimensions against the vehicle or machine application before purchase.

FAQ

What is the part number for this alternator?

The supplied part number is MG384.

What voltage and output does it have?

It is a 24V alternator with a 55A charge current, and the power rating is also listed as 55 amp.

Does it come with a pulley?

No. The listing states pulleys are without belt pulley.

What type of regulator does it use?

It uses an internal regulator.

Which way does it rotate?

Rotation is listed as clockwise, abbreviated CW.

What should I check before buying?

Confirm MG384, 24V, 55A, CW rotation, single leg mount, connector / clamp W, and the mounting measurements including 56mm mount leg thickness, 56.0mm mounting bores distance, 156mm mount centre to centre, and 17mm shaft diameter.
