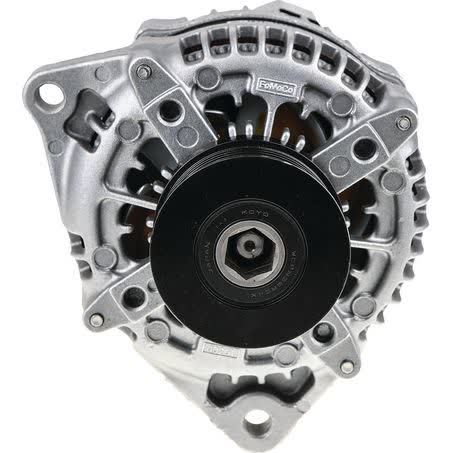

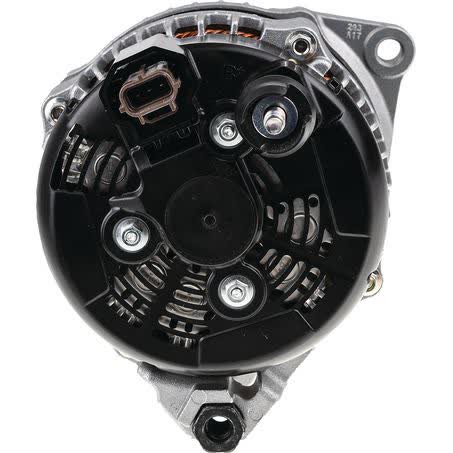

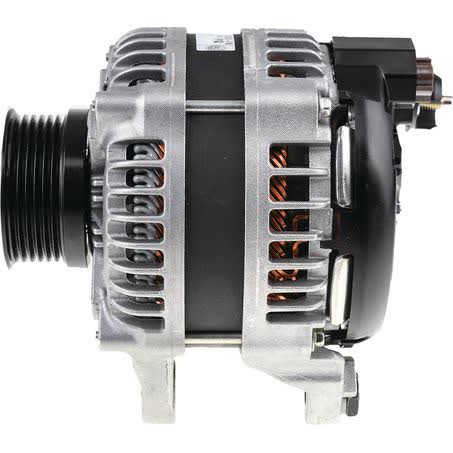

Genuine Alternator 12V 180A JR3Z10346D

This Genuine Alternator is a 12V, 180A unit supplied as new, with internal regulation and a 6 groove pulley. It is listed with part number JR3Z10346D and is identified as an OE product in the Genuine Products range.

The alternator is described as a twin leg mount with inside mounting legs measuring 57mm, a pivot hole diameter of M10x1.5 / 11, and an adjusting hole diameter of 10mm. It weighs 7.6kg and is supplied as each, which makes the physical mounting details important when comparing it to the original unit.

A 66.5mm pulley outside diameter and Denso unit make-up are also listed, along with pin code IR187. These details matter when you are matching the replacement to the vehicle’s charging system and mounting arrangement, particularly where the original alternator needs to be cross-checked by part number and dimensions rather than by appearance alone.

The unit carries a one year warranty and sits in the rotating electrical product group. For buyers replacing a worn alternator, the key points to confirm are the 12V system, 180 amp output, internal regulator, 6 groove pulley, and the JR3Z10346D part number.

Key Features

• Genuine Products OE product
• 12V alternator with 180A output
• New unit, not remanufactured
• Internal regulator type
• 6 groove pulley design

Specifications

• Part No.: JR3Z10346D
• Voltage: 12V
• Power Rating: 180A
• Condition: New
• Warranty: One Year
• Alternator Mount: Twin Leg
• Inside Mounting Legs: 57mm
• Pivot Hole Diameter: M10x1.5 / 11

Fitment guidance

• Fitment data provided includes Ford and Ford Mustang applications.
• Sample applications listed include Ford Mustang 2014, 2015, 2016, 2017 and 2018.
• Use the listed part number JR3Z10346D, mounting style and pulley details to confirm the correct match before ordering.

Application and Buying Notes

When replacing an alternator, the most reliable starting point is the part number. JR3Z10346D is the clearest identifier here, and it should be matched with the vehicle application, mounting layout and pulley specification before purchase. The alternator is 12V and rated at 180A, so it is intended for a charging system designed around those figures.

Mounting details are just as important as electrical output. This unit uses a twin leg mount, with inside mounting legs of 57mm, a pivot hole diameter of M10x1.5 / 11 and an adjusting hole diameter of 10mm. If those dimensions do not line up with the original alternator or bracket arrangement, the unit should not be assumed to fit.

The pulley specification also needs checking. A 66.5mm outside diameter and 6 groove pulley section are listed, which means belt alignment and belt type must suit the vehicle’s original setup. An alternator can look similar from the outside and still be wrong if the pulley count, pulley size or regulator arrangement differs.

The regulator is internal, the unit is new, and it is identified as suitable for a Denso unit make-up. Those are useful comparison points for replacement work, but they do not replace vehicle-specific confirmation. If the original alternator has a different regulator style, mounting pattern or pulley arrangement, measure and compare carefully before ordering.

For practical workshop use, the weight of 7.6kg is also worth noting when handling and fitting the unit. It is supplied with a one year warranty, which provides a defined period of coverage, but the correct application still needs to be confirmed from the vehicle details and the removed alternator.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number JR3Z10346D helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Inside Mounting Legs 57mm, Pivot Hole Diameter M10x1.5 / 11, Pulley Outside Diameter 66.5mm, Regulator Type Internal, Voltage 12, New / Reman. New.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. JR3Z10346D, Brand GENUINE PRODUCTS, Description Genuine Alternator 12V 180A, Adjusting Hole Diameter 10, Pin Code IR187, Power Rating (Amp) 180, Pulley Section 6 Groove, Suits Unit Make Denso, Alternator Mount Twin Leg.

Genuine Alternator 12V 180A. Part number JR3Z10346D should be checked first. Listed voltage is 12. Listed output rating is 180. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number JR3Z10346D, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 180 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm compatibility using the part number JR3Z10346D, the 12V 180A specification, twin leg mounting details, 6 groove pulley, and the listed Ford / Ford Mustang application information before ordering.

FAQ

What is the part number for this alternator?

The part number listed is JR3Z10346D.

What voltage and output does it have?

It is a 12V alternator with a 180A power rating.

Is this alternator new or remanufactured?

It is listed as new.

What type of regulator does it use?

The regulator type is internal.

What pulley specification is listed?

The alternator has a 66.5mm pulley outside diameter and a 6 groove pulley section.

What fitment information is provided?

Fitment information provided includes Ford and Ford Mustang applications, with sample listings for Ford Mustang 2014 through 2018.
