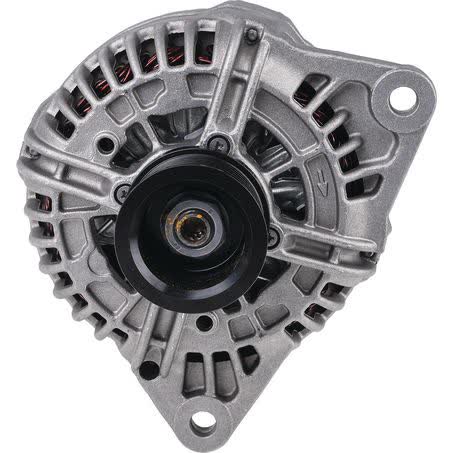

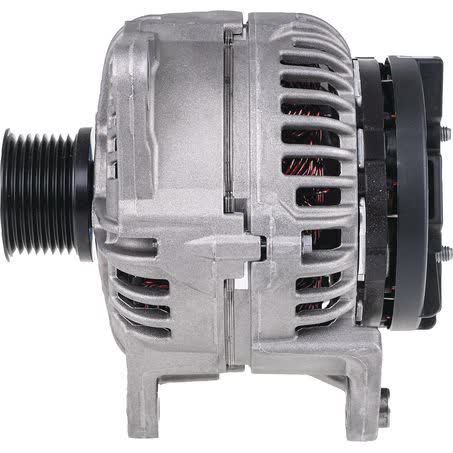

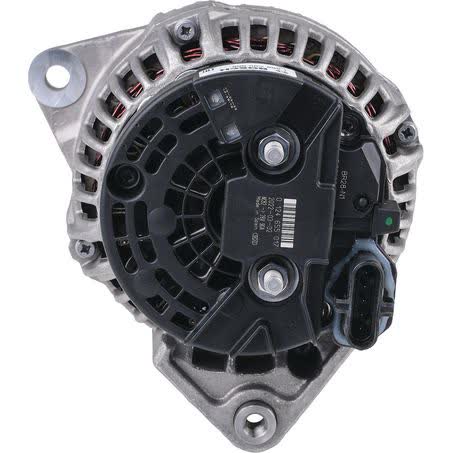

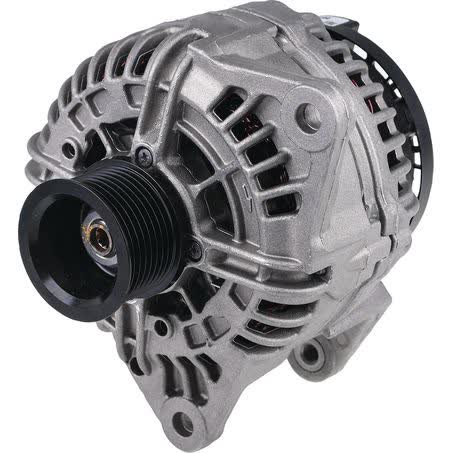

Bosch Alternator 24V 90A New – Part No. 1986A00966

The Bosch Alternator 24V 90A is a new unit supplied under part number 1986A00966. It is an alternator for 24 volt systems with a 90 amp power rating, internal regulator, and an 8 groove pulley, making it a specific match for applications that require those exact electrical and mounting details.

This unit is listed as an alternator excl. vacuum pump, with clockwise rotation, a double pivot lever fastening type, and inside mounting legs measuring 82mm. The mounting centre to centre is 162mm and the adjusting hole diameter is 11mm, so those dimensions should be checked carefully against the original unit before ordering.

Manufactured in Spain and backed by a 12 month warranty, this Bosch alternator weighs 7.56kg and is intended as a replacement rotating electrical component for the correct application. Because alternators are application-specific, the part number and physical measurements are the most reliable checks when confirming suitability.

Key Features

• New Bosch alternator
• 24V system with 90A output
• Internal regulator
• 8 groove pulley
• Clockwise rotation
• Double pivot lever fastening type

Specifications

• Brand: Bosch
• Part No.: 1986A00966
• Type: Alternator
• Voltage: 24V
• Power rating: 90A
• Alternator charge current: 100A
• Regulator type: Internal
• Rotation: CW

Known fitment applications

• IVECO Eurocargo
• IVECO Eurocargo 2000
• IVECO Eurocargo 2001
• IVECO Eurocargo 2002
• IVECO Eurocargo 2003
• IVECO Eurocargo 2004
• IVECO Eurocargo 2005
• IVECO Eurocargo 2006

Application and Buying Notes

Before ordering, compare the Bosch part number 1986A00966 with the number on your existing alternator, and confirm the unit is for a 24V electrical system with a 90A rating. Those are the first checks that usually save time, especially on commercial vehicles where similar-looking alternators can differ in regulator type, pulley arrangement, or mounting layout.

Physical fit matters just as much as the electrical rating. This alternator has an 8 groove pulley, clockwise rotation, an inside mounting leg measurement of 82mm, a mount centre to centre dimension of 162mm, and an 11mm adjusting hole diameter. If any of those measurements differ from the original unit, fitment may not be correct even if the alternator looks close.

The alternator is listed as an excl. vacuum pump design, so it should only be used where that configuration is required. It also uses an internal regulator and a double pivot lever fastening type, which are important details when matching the replacement to the vehicle’s charging system and bracket arrangement.

A 12 month warranty is supplied with the part, and it is a new Bosch unit manufactured in Spain. If you are replacing an existing alternator, it is sensible to inspect the belt condition at the same time, as a V-Belt or V-Ribbed Belt may also need attention depending on the wear you find during removal and refit.

For the listed Iveco applications, model and year details should still be checked against the vehicle’s build data and the old alternator’s specifications. Eurocargo and Tector variants can share broad descriptions but still differ in pulley, amperage, or mounting details, so the part number and measurements remain the safest confirmation points.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 1986A00966 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 12 Months, Inside Mounting Legs 82mm, Power Rating (Amp) 90, Pulley Section 8 Groove, Rotation CW, Voltage 24, New / Reman. New, Fastening Type Double Pivot Lever.

Additional published details for cross-checking include Recommended additional repairs V-Belt/V-Ribbed Belt, Packaging width 18.5, Manufactured in Spain, Product Group 2 ALTERNATORS, Part No. 1986A00966, Brand BOSCH, Description Bosch Alternator 24V 90A, Adjusting Hole Diameter 11, Pin Code IR98.

Bosch Alternator 24V 90A. Part number 1986A00966 should be checked first. Listed voltage is 24. Listed output rating is 90. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Regulator type is Internal. Pulley configuration is 8 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number 1986A00966, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 and output 90 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include IVECO EUROCARGO, IVECO EUROCARGO 2000, IVECO EUROCARGO 2001, IVECO EUROCARGO 2002. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 12 Months. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment using Bosch part number 1986A00966, 24V system requirements, 90A output, pulley section, rotation, and all mounting measurements before ordering.

FAQ

What is the Bosch part number for this alternator?

The Bosch part number is 1986A00966.

Is this alternator new or remanufactured?

It is listed as new.

What voltage and amperage does it have?

It is a 24V alternator with a 90A power rating. The alternator charge current is listed as 100A.

Does it have an internal regulator?

Yes. The regulator type is internal.

What fitment applications are listed?

Listed applications include Iveco Eurocargo, Eurocargo 2000 through Eurocargo 2010, and Iveco Tector.

What should I check before buying?

Check the part number 1986A00966, 24V system requirement, 90A rating, 8 groove pulley, clockwise rotation, and the mounting dimensions of 82mm inside mounting legs, 162mm centre to centre, and 11mm adjusting hole diameter.
