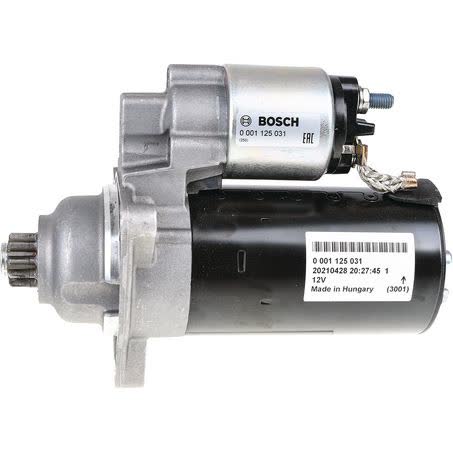

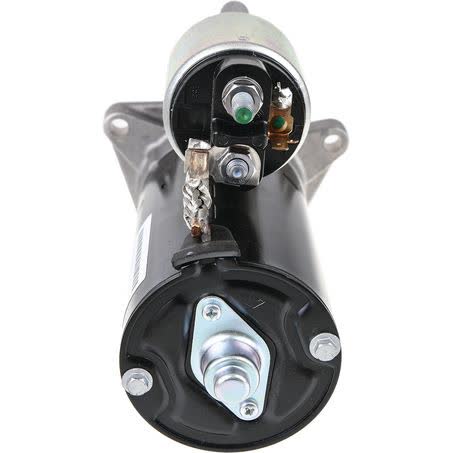

Bosch Starter Motor 12V 10 Tooth CCW 2KW 0001125031

This Bosch starter motor is a 12V unit with 10 teeth, counter-clockwise rotation, and a 2kW power rating. It is listed as a new starter motor for the Bosch unit make, with part number 0001125031 and a 3-hole starter mount type.

Key dimensional points include a 76mm flange diameter, 106mm mount centres A, 102mm mount centres B and C, and a 234mm overall length. The pinion diameter is 28mm, pinion at rest is 53mm, and the mounting hole diameter is 9mm.

Key Features

• 12V Bosch starter motor
• 10-tooth pinion
• Counter-clockwise rotation
• 2kW power rating
• New unit, not remanufactured
• 3-hole starter mount type

Specifications

• Brand: Bosch
• Product type: Starter motor
• Voltage: 12V
• Power rating: 2kW
• Rotation: CCW
• Number of teeth: 10
• Starter mount type: 3 hole
• Flange diameter: 76mm

Fitment guidance

• Volkswagen Transporter
• Volkswagen Transporter / Caravelle
• Volkswagen Transporter / Caravelle 1990
• Volkswagen Transporter / Caravelle 1991
• Volkswagen Transporter / Caravelle 1992
• Volkswagen Transporter / Caravelle 1993
• Volkswagen Transporter / Caravelle 1994
• Volkswagen Transporter / Caravelle 1995

Application and Buying Notes

Before ordering, compare the part number 0001125031 and the physical details on your original starter motor. The important matching points here are 12V, 10 teeth, CCW rotation, 3-hole mounting, 76mm flange diameter, and the 106mm / 102mm mount-centre measurements.

The 2kW rating and 28mm pinion diameter are useful checks when comparing units that may look similar but differ in output or engagement dimensions. The dry clutch listing is also worth confirming, because starter application details can vary even within the same vehicle family.

If you are replacing a Bosch starter, confirming the unit make and the mounting pattern is sensible before purchase. The listed 9mm mounting hole diameter, 53mm pinion at rest, and 234mm overall length give practical reference points for checking fit against the removed unit or the vehicle mounting space.

Although Volkswagen Transporter and Transporter / Caravelle applications are shown, the safest approach is still to match by part number and the exact starter specifications above. That is the best way to avoid ordering a unit that is close in appearance but different in tooth count, rotation, or mounting layout.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 0001125031 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 106mm, Mount Centres C 102mm, Number of Teeth 10, Pinion at Rest 53mm, Power Rating 2kW, Suits Unit Make Bosch, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Number of Thread Bores 0, Bore O 3 9, Number of mounting bores 3, Packaging length 32.5, Packaging height 13.9, Mounting hole angle measurement [Degree] 60, Product Group 1 ROTATING ELECTRICAL, Part No. 0001125031, Brand BOSCH.

Bosch Starter Motor 12V 10Th CCW. Part number 0001125031 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number 0001125031, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include VOLKSWAGEN TRANSPORTER, VOLKSWAGEN TRANSPORTER / CARAVELLE, VOLKSWAGEN TRANSPORTER / CARAVELLE 1990, VOLKSWAGEN TRANSPORTER / CARAVELLE 1991. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using part number 0001125031 and the full application details, including 12V, 10 teeth, CCW rotation, 3-hole mounting, and the listed mount-centre and flange measurements before purchase.

FAQ

What is the part number for this Bosch starter motor?

The part number listed is 0001125031. For this listing, part number 0001125031 is the main reference point. Listed voltage is 12. Published fitment references include VOLKSWAGEN TRANSPORTER, VOLKSWAGEN TRANSPORTER / CARAVELLE, VOLKSWAGEN TRANSPORTER / CARAVELLE 1990. These details should still be checked against the original unit before ordering.

Is this a 12V or 24V starter motor?

It is a 12V starter motor. For this listing, part number 0001125031 is the main reference point. Listed voltage is 12. Published fitment references include VOLKSWAGEN TRANSPORTER, VOLKSWAGEN TRANSPORTER / CARAVELLE, VOLKSWAGEN TRANSPORTER / CARAVELLE 1990. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The starter has 10 teeth. For this listing, part number 0001125031 is the main reference point. Listed voltage is 12. Published fitment references include VOLKSWAGEN TRANSPORTER, VOLKSWAGEN TRANSPORTER / CARAVELLE, VOLKSWAGEN TRANSPORTER / CARAVELLE 1990. These details should still be checked against the original unit before ordering.

What rotation does this starter motor have?

It is counter-clockwise (CCW). For this listing, part number 0001125031 is the main reference point. Listed voltage is 12. Published fitment references include VOLKSWAGEN TRANSPORTER, VOLKSWAGEN TRANSPORTER / CARAVELLE, VOLKSWAGEN TRANSPORTER / CARAVELLE 1990. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured unit?

It is listed as new, not remanufactured. For this listing, part number 0001125031 is the main reference point. Listed voltage is 12. Published fitment references include VOLKSWAGEN TRANSPORTER, VOLKSWAGEN TRANSPORTER / CARAVELLE, VOLKSWAGEN TRANSPORTER / CARAVELLE 1990. These details should still be checked against the original unit before ordering.

Which vehicle applications are shown with this listing?

Volkswagen Transporter and Volkswagen Transporter / Caravelle applications are shown, including years 1990 through 1999 in the supplied fitment preview. For this listing, part number 0001125031 is the main reference point. Listed voltage is 12. Published fitment references include VOLKSWAGEN TRANSPORTER, VOLKSWAGEN TRANSPORTER / CARAVELLE, VOLKSWAGEN TRANSPORTER / CARAVELLE 1990. These details should still be checked against the original unit before ordering.
