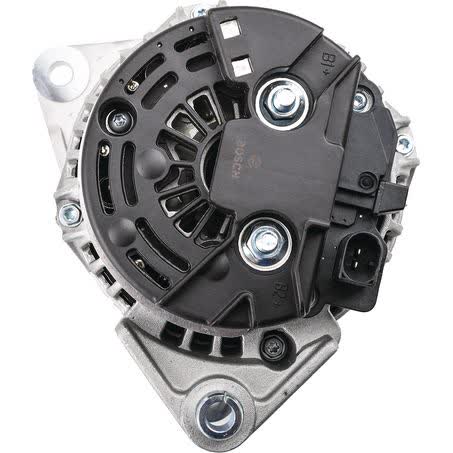

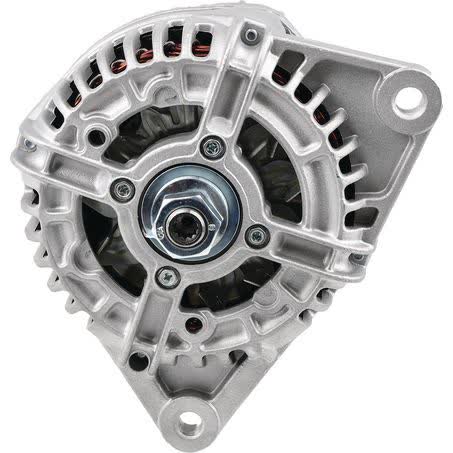

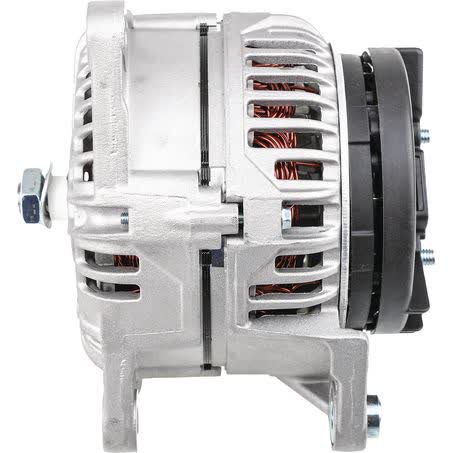

Bosch Alternator 12V 140A, Part No. 1986A00875

The Bosch alternator listed here is a new 12V, 140A unit with internal regulator and clockwise rotation. It is identified by part number 1986A00875 and is supplied as an alternator excluding vacuum pump, so the application needs to match that configuration before purchase.

Key mounting details include a twin leg alternator mount, 80mm inside mounting legs, 164mm centre-to-centre mounting dimension, 11mm adjusting hole diameter and a 17mm shaft diameter. The note also records a shaft length of 21.5mm, which is important when comparing against the unit being replaced.

This alternator is described as suitable for Bosch units and carries a 12 month warranty. The feature note states it contains non-recycled copper, which is relevant for buyers comparing component quality as well as physical fitment.

Fitment references supplied with the listing include Fiat Ducato and Iveco Daily applications across multiple model years, but the exact vehicle match still needs to be confirmed against the part number, mounting dimensions and alternator type before ordering.

Key Features

• 12V alternator with 140A charge current
• Internal regulator
• New unit
• Clockwise rotation
• Twin leg mounting
• Excludes vacuum pump

Specifications

• Part No.: 1986A00875
• Brand: Bosch
• Type: Alternator
• Voltage: 12V
• Power rating: 140A
• Alternator type: excl. vacuum pump
• Mount: Twin leg
• Inside mounting legs: 80mm

Confirmed fitment references supplied

• Fiat Ducato
• Fiat Ducato 2006 to 2016
• Iveco Daily
• Iveco Daily 2004 to 2014

Application and Buying Notes

Use the part number 1986A00875 first, then compare the alternator mounting layout, because the listed dimensions are specific: twin leg mount, 80mm inside mounting legs, 164mm mount centre to centre, 11mm adjusting hole and 17mm shaft diameter. Those measurements matter as much as the 12V 140A electrical rating when checking a replacement unit.

The alternator is noted as excluding a vacuum pump, so it should only be considered where the original unit shares that arrangement. A vehicle may be listed in the fitment references and still require a different alternator if the mounting style, pulley arrangement or accessory configuration is not the same.

The current rating is 140A and the regulator type is internal, which are important checks for the charging system setup on the vehicle. The pulley section is marked not applicable, so do not assume a pulley specification beyond the details provided here.

If you are replacing a worn alternator, the listing also recommends additional attention to the V-belt or V-ribbed belt. That is practical because belt condition and alternator installation are closely linked, especially where the charging system has been apart for service.

This unit is supplied new and carries a 12 month warranty, but the safest purchase is still the one matched by part number and measurements. When in doubt, compare the old unit in hand before fitting, including the shaft length of 21.5mm and the fastening type recorded as double pivot lever.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 1986A00875 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 12 Months, Inside Mounting Legs 80mm, Power Rating (Amp) 140, Regulator Type Internal, Shaft Diameter 17mm, Voltage 12, Alternator Mount Twin Leg, New / Reman. New.

Additional published details for cross-checking include Fastening Type Double Pivot Lever, Recommended additional repairs V-Belt/V-Ribbed Belt, Packaging width 20, Manufactured in China, Product Group 1 ROTATING ELECTRICAL, Part No. 1986A00875, Brand BOSCH, Description Bosch Alternator 12V 140A, Adjusting Hole Diameter 11, Pin Code IR205.

Bosch Alternator 12V 140A. Part number 1986A00875 should be checked first. Listed voltage is 12. Listed output rating is 140. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is Not Applicable. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number 1986A00875, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 140 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FIAT DUCATO, FIAT DUCATO 2006, FIAT DUCATO 2007, FIAT DUCATO 2008, IVECO DAILY, IVECO DAILY 2004. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm compatibility using part number 1986A00875, the 12V 140A specification, the twin leg mount dimensions, and whether your original alternator is the version excluding a vacuum pump. Fitment references for Fiat Ducato and Iveco Daily are provided as application guidance only and should be checked against the vehicle and removed unit.

FAQ

What is the part number for this Bosch alternator?

The part number is 1986A00875.

Is this alternator new or remanufactured?

It is listed as new.

What voltage and output does it have?

It is a 12V alternator with a 140A power rating and 140A charge current.

Does it have an internal regulator?

Yes. The regulator type is listed as internal.

Which vehicles are referenced for fitment?

Fitment references include Fiat Ducato and Iveco Daily applications across the years listed in the product data. Final compatibility still needs to be confirmed by part number and matching dimensions.

What mounting and shaft details should I check?

Check the twin leg mount, 80mm inside mounting legs, 164mm mount centre to centre, 11mm adjusting hole diameter, 17mm shaft diameter and 21.5mm shaft length.
