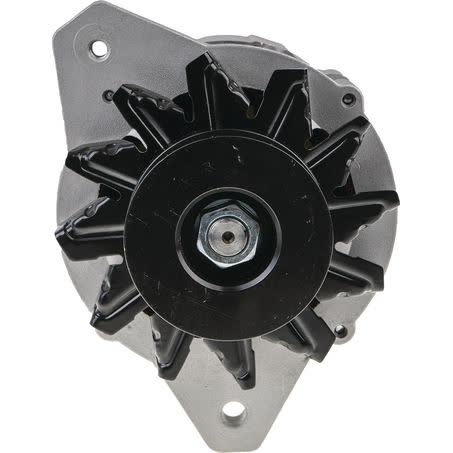

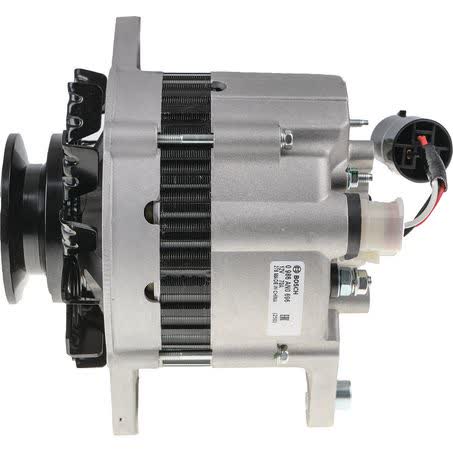

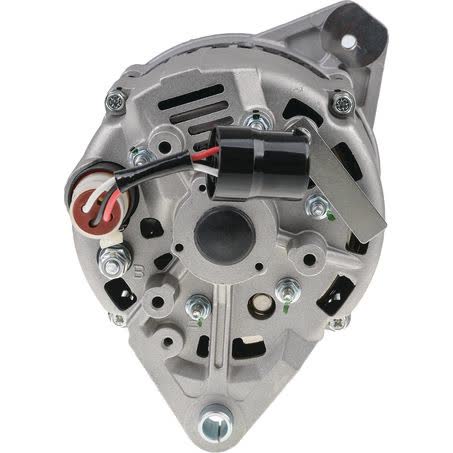

Bosch Alternator 12V 70A 0986AN0696

The Bosch alternator 0986AN0696 is a new 12V unit with a 70A charge current and an internal regulator. It is listed as an alternator type excl. vacuum pump, with a twin leg alternator mount and direct fastening arrangement.

Key mounting details include 81mm inside mounting legs, 167mm mount centre to centre, a 10mm pivot hole diameter, and an M8x1.25 adjusting hole. The pulley outside diameter is 82mm with a B section pulley, so matching the belt drive setup matters when confirming suitability.

This unit is specified as Bosch brand, made in China, and supplied with a 12 month warranty. It is described as using high quality raw materials, non-recycled copper, application-designed regulators, and long lasting premium quality bearings.

Key Features

• 12V alternator with 70A charge current
• Internal regulator
• Twin leg alternator mount
• Direct fastening
• Excludes vacuum pump
• New unit

Specifications

• Voltage: 12V
• Alternator charge current: 70A
• Power rating: 70A
• Part number: 0986AN0696
• Regulator type: Internal
• Alternator type: Excl. vacuum pump
• Alternator mount: Twin leg
• Fastening type: Direct fastening

Verified fitment guidance

• Fitment data includes Toyota Land Cruiser applications across 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991 and 1992 model years.
• Toyota Land Cruiser is listed in the supplied fitment information, but the exact engine and model variant must still be checked against the vehicle.
• Match the part number 0986AN0696 and the alternator mounting and pulley details before ordering.

Application and Buying Notes

Before buying, confirm the vehicle uses a 12V charging system and a 70A alternator specification, as this unit is listed with those exact electrical details. The alternator is a Bosch 0986AN0696, so the part number should be checked first wherever the original unit or catalogue reference is available.

The mounting and drive details are just as important as the electrical rating. This alternator has 81mm inside mounting legs, 167mm mount centre to centre, a 10mm pivot hole, an M8x1.25 adjusting hole, and an 82mm B section pulley. Those measurements need to line up with the existing bracket and belt arrangement on the vehicle.

This is an alternator excl. vacuum pump with an internal regulator and direct fastening. If the existing unit includes a vacuum pump, or if the mounting style differs from twin leg/direct fastening, this part may not suit without further verification.

The unit is supplied new and carries a 12 month warranty. It is also listed with recommended additional repairs of V-belt/V-ribbed belt, which is worth considering if the existing belt shows wear, glazing, cracking, or incorrect tension while the alternator is being replaced.

For Toyota Land Cruiser applications, use the model year and the physical alternator details together rather than relying on the make alone. Matching the vehicle application, part number, voltage, amperage, mount type, and pulley section gives the best chance of confirming the correct replacement.

If you are comparing against an existing alternator, measure the mount points and check the pulley section before purchase. Small differences in leg spacing, hole size, or pulley profile can prevent a straightforward installation even when the vehicle family appears similar.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 0986AN0696 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 12 Months, Inside Mounting Legs 81mm, Pivot Hole Diameter 10, Pulley Outside Diameter 82mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 167mm, Alternator Charge Current [A] 70.

Additional published details for cross-checking include Alternator Type excl. vacuum pump, Packaging length 28, Packaging height 22.5, Weight 6.24kg, Product Group 1 ROTATING ELECTRICAL, Part No. 0986AN0696, Brand BOSCH, Description Bosch Alternator 12V 70A, Adjusting Hole Diameter M8x1.25, Pin Code IR7.

Bosch Alternator 12V 70A. Part number 0986AN0696 should be checked first. Listed voltage is 12. Listed output rating is 70. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is B. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number 0986AN0696, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 70 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm fitment with Bosch part number 0986AN0696 and the vehicle’s application details, including 12V system, 70A output, twin leg mounting, 82mm B section pulley, and whether the original alternator is excl. vacuum pump.

FAQ

What is the part number for this alternator?

The Bosch part number is 0986AN0696.

What voltage and output does it have?

It is a 12V alternator with a 70A charge current and 70A power rating.

Does it have an internal regulator?

Yes. The regulator type is listed as internal.

Is this alternator for units with a vacuum pump?

No. It is listed as alternator type excl. vacuum pump.

What mounting details are listed?

It has a twin leg alternator mount, direct fastening, 81mm inside mounting legs, 167mm mount centre to centre, a 10mm pivot hole, and an M8x1.25 adjusting hole.

What vehicles are listed in the fitment information?

The supplied fitment information includes Toyota Land Cruiser applications across 1984 to 1992 model years. The exact vehicle variant should still be checked against the part number and mounting details.
