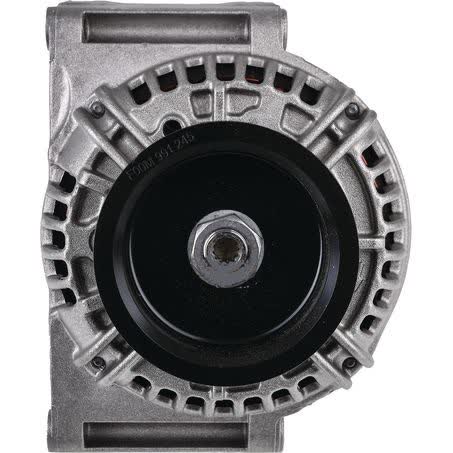

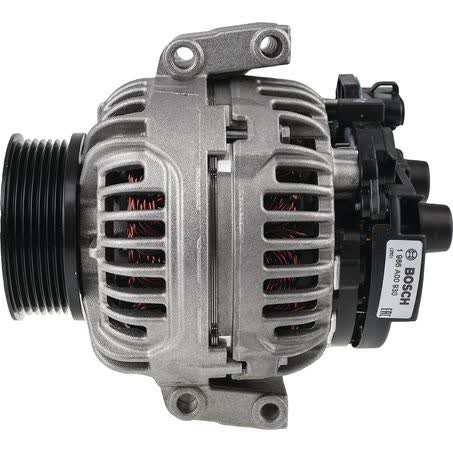

Bosch Alternator 24V 80A Pad Mount 7 Groove Part No. 1986A00930

This Bosch alternator is a new 24V, 80A unit with a pad mount and direct fastening. It suits Bosch applications and carries part number 1986A00930, with a 7 groove pulley and 86mm pulley outside diameter for installations that match those details.

The alternator is listed as excluding a vacuum pump and uses an internal regulator. Mount leg thickness is 97mm and the mount hole diameter is 9mm, so the physical mounting points need to be checked carefully against the vehicle setup before ordering.

Manufactured in Spain and sold as an each unit, this alternator weighs 7.6kg and comes with a 12 month warranty. The recommended additional repair is the V-belt or V-ribbed belt, which is worth inspecting whenever an alternator is being replaced.

For buyers comparing options, the key identifiers here are 24V charging, 80A output, Bosch application, pad mounting, and part number 1986A00930. Those details are the main checkpoints when confirming whether the unit matches the existing alternator in the vehicle.

Key Features

• New Bosch alternator
• 24V system voltage
• 80A charge current
• 7 groove pulley
• Internal regulator
• Pad mount with direct fastening

Specifications

• Part No.: 1986A00930
• Brand: Bosch
• Type: Alternator
• Unit of measure: Each
• Power rating: 80 amp
• Alternator charge current: 80A
• Voltage: 24V
• Alternator type: excl. vacuum pump

Fitment guidance

• Fitment information supplied for DAF applications including DAF CF 85 and DAF XF 105.
• DAF CF 85 applications are shown across model years 2005 to 2015 in the supplied fitment preview.
• Confirm the alternator part number, mounting style, pulley specification, and voltage before fitting to any DAF application.

Application and Buying Notes

The most important check on this Bosch alternator is the part number 1986A00930, followed by the 24V electrical system and 80A output. Those three details must line up with the vehicle requirements, because a different voltage, charge current, or mounting arrangement can make the unit unsuitable even where the housing appears similar.

The alternator uses a pad mount with direct fastening, a 97mm mount leg thickness, and a 9mm mount hole diameter. Those dimensions matter because alternators in heavy vehicle applications are often close in appearance but differ in fixing layout, pulley line-up, or regulator setup.

The pulley is a 7 groove design with an 86mm outside diameter, and the unit is specified as excluding a vacuum pump. That combination is important when matching to the existing belt drive and engine accessory arrangement, particularly if the old alternator has a different pulley section or includes vacuum pump provision.

When replacing an alternator, it is sensible to inspect the V-belt or V-ribbed belt as well. Wear in the belt or a mismatch in belt profile can affect installation and running condition, so checking the drive system at the same time helps avoid unnecessary repeat work.

This unit is listed as new, weighs 7.6kg, and uses an internal regulator with a pin code of IR98. Those details are useful for identification and comparison at the bench, especially when verifying the replacement against the removed part before final installation.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number 1986A00930 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 12 Months, Mount Leg Thickness 97mm, Power Rating (Amp) 80, Pulley Section 7 Groove, Suits Unit Make Bosch, Alternator Mount Pad, Alternator Charge Current [A] 80, Alternator Type excl. vacuum pump.

Additional published details for cross-checking include Packaging length 28, Packaging height 22.5, Weight 7.6kg, Product Group 1 ROTATING ELECTRICAL, Part No. 1986A00930, Brand BOSCH, Description Bosch Alternator 24V 80A, Mount Hole Diameter 9, Pin Code IR98, Pulley Outside Diameter 86mm.

Bosch Alternator 24V 80A. Part number 1986A00930 should be checked first. Listed voltage is 24. Listed output rating is 80. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Pad. Regulator type is Internal. Pulley configuration is 7 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number 1986A00930, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 and output 80 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include DAF CF 85, DAF CF 85 2005, DAF CF 85 2006, DAF CF 85 2007. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching part number 1986A00930, 24V voltage, 80A output, pad mount, 7 groove pulley, and the vehicle application details before ordering. Fitment should always be verified against the existing alternator and vehicle requirements.

FAQ

What is the part number for this Bosch alternator?

The part number is 1986A00930.

What voltage and output does it have?

It is a 24V alternator with an 80A charge current and 80 amp power rating.

Does this alternator include a vacuum pump?

No. It is listed as an alternator excl. vacuum pump.

What type of mounting does it use?

It uses a pad mount with direct fastening. The mount leg thickness is 97mm and the mount hole diameter is 9mm.

What pulley setup does it have?

It has a 7 groove pulley with an 86mm pulley outside diameter.

What warranty is provided?

The alternator carries a 12 month warranty.
