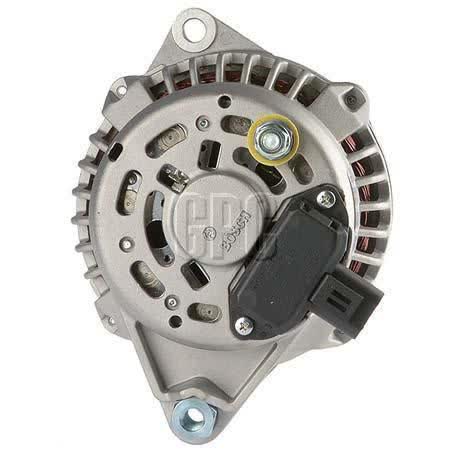

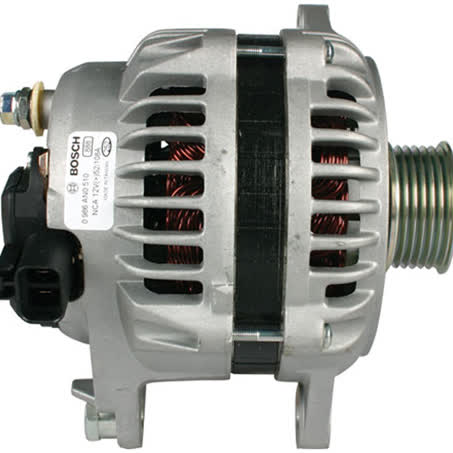

Bosch Alternator 12V 108A BXF1260A

The Bosch Alternator BXF1260A is a new 12V, 108A rotating electrical unit with an internal regulator and a 6 groove pulley. It is listed as a twin leg alternator mount, with an inside mounting legs measurement of 66mm, a pivot hole diameter of M10, and a mount centre to centre dimension of 173mm.

This alternator is supplied as a Bosch unit and is described as having the same rigorous production standard as OE parts. It is a 6.6kg assembly, with a pulley outside diameter of 56mm and an adjusting hole diameter of 11mm, so matching the mounting and pulley details is an important step before ordering.

For buyers needing a replacement alternator with a known Bosch part number, BXF1260A is the key identifier to check against the vehicle application and the physical unit removed from the vehicle. The one year warranty applies to this new alternator, and the listed 108 amp output is the main electrical specification to confirm for the job at hand.

Key Features

• New Bosch alternator
• 12V, 108A output
• Internal regulator
• 6 groove pulley
• Twin leg alternator mount
• Part number BXF1260A

Specifications

• Voltage: 12V
• Power rating: 108A
• Part No.: BXF1260A
• Type: Alternator
• Unit of measure: Each
• New / Reman.: New
• Regulator type: Internal
• Alternator mount: Twin Leg

Fitment and application details

• Supplied fitment references include Ford
• Supplied fitment references include Ford Fairlane
• Supplied fitment references include Ford Fairmont
• Supplied fitment references include Ford Falcon
• Supplied fitment references include Ford LTD

Application and Buying Notes

Before ordering, compare the Bosch part number BXF1260A and the physical dimensions against the alternator you are replacing. The critical checks here are the 12V system voltage, 108A output, twin leg mount, 66mm inside mounting legs, and the 173mm mount centre to centre measurement.

The pulley details also need to match the vehicle setup. This unit uses a 6 groove pulley with a 56mm outside diameter, so belt style and pulley alignment should be checked carefully against the original alternator.

Because the unit uses an internal regulator, the charging system arrangement on the vehicle should be confirmed before purchase. Matching the regulator type, mounting pattern, and the pivot and adjusting hole diameters helps avoid installation issues and return freight costs.

This alternator is listed against Ford applications in the supplied fitment references, but the fitment list shown is not enough on its own to confirm every vehicle variant. Always verify the application details, the removed unit, and the part number together, especially where model years or engine combinations may differ.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXF1260A helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Inside Mounting Legs 66mm, Pivot Hole Diameter M10, Pulley Outside Diameter 56mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 173mm, Weight 6.6kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. BXF1260A, Brand BOSCH, Description Bosch Alternator 12V 108A, Adjusting Hole Diameter 11, Pin Code IR49, Power Rating (Amp) 108, Pulley Section 6 Groove, Suits Unit Make Bosch, Alternator Mount Twin Leg.

Bosch Alternator 12V 108A. Part number BXF1260A should be checked first. Listed voltage is 12. Listed output rating is 108. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number BXF1260A, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 108 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment using Bosch part number BXF1260A, the 12V 108A specification, and the mounting and pulley measurements before ordering. If the vehicle’s original alternator differs in mount style, pulley section, or regulator type, do not assume it will be the same replacement.

FAQ

What is the part number for this alternator?

The listed Bosch part number is BXF1260A. For this listing, part number BXF1260A is the main reference point. Listed voltage is 12. Listed output rating is 108. Published fitment references include FORD FAIRLANE, FORD FAIRLANE 1988, FORD FAIRLANE 1989. These details should still be checked against the original unit before ordering.

Is this alternator new or remanufactured?

It is listed as new. For this listing, part number BXF1260A is the main reference point. Listed voltage is 12. Listed output rating is 108. Published fitment references include FORD FAIRLANE, FORD FAIRLANE 1988, FORD FAIRLANE 1989. These details should still be checked against the original unit before ordering.

What output does this alternator have?

It is a 12V alternator with a 108A power rating. For this listing, part number BXF1260A is the main reference point. Listed voltage is 12. Listed output rating is 108. Published fitment references include FORD FAIRLANE, FORD FAIRLANE 1988, FORD FAIRLANE 1989. These details should still be checked against the original unit before ordering.

Does it have an internal regulator?

Yes. The regulator type is listed as internal. For this listing, part number BXF1260A is the main reference point. Listed voltage is 12. Listed output rating is 108. Published fitment references include FORD FAIRLANE, FORD FAIRLANE 1988, FORD FAIRLANE 1989. These details should still be checked against the original unit before ordering.

What pulley configuration does it use?

It has a 6 groove pulley with a 56mm outside diameter. For this listing, part number BXF1260A is the main reference point. Listed voltage is 12. Listed output rating is 108. Published fitment references include FORD FAIRLANE, FORD FAIRLANE 1988, FORD FAIRLANE 1989. These details should still be checked against the original unit before ordering.

What should I check before buying?

Check the part number BXF1260A, the 12V 108A specification, the twin leg mount, and the measured dimensions including 66mm inside mounting legs and 173mm mount centre to centre. For this listing, part number BXF1260A is the main reference point. Listed voltage is 12. Listed output rating is 108. Published fitment references include FORD FAIRLANE, FORD FAIRLANE 1988, FORD FAIRLANE 1989. These details should still be checked against the original unit before ordering.
