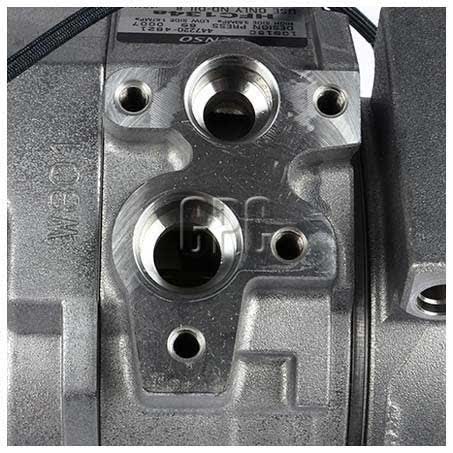

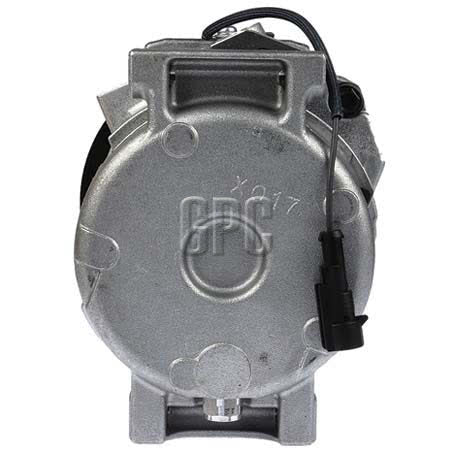

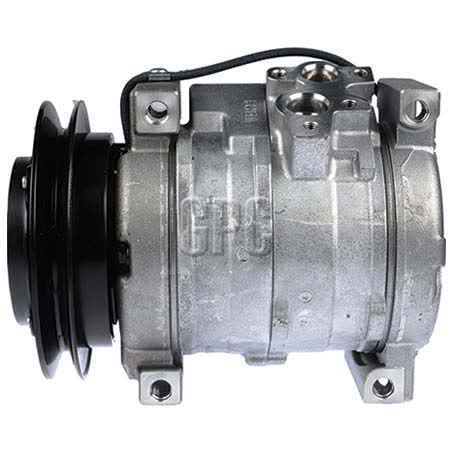

Denso Air Conditioning Compressor 12V Direct Mount 10S15C CXD6380

This Denso air conditioning compressor is a 12V direct mount unit in the 10S15C series, supplied as part number CXD6380 and body number 447220-4620. It is listed with a pad fitting type, a clutch diameter of 133mm, and a pulley section A, which are the key physical checks to make before purchase.

The compressor is specified for Denso air conditioning applications and uses PAG46 oil. It is sold as one each and carries a one year warranty. The unit weight is 6.48kg, which can be useful when comparing replacement units or confirming you are handling the correct style of compressor for the application.

Fitment information supplied with this unit includes Fendt tractor applications, with references to Fendt Tractor 204/306/600 from 01/1960, Fendt Tractor Farmer 200 - 400 from 01/1974, and Fendt Tractor 930 7.1L from 01/2006. Because compressor fitment can vary by mounting style, pulley arrangement, and model details, the part number and specifications should be checked carefully before ordering.

Key Features

• Denso air conditioning compressor
• 12V electrical specification
• 10S15C series
• Direct mount compressor mounting
• Pad fitting type
• 133mm clutch diameter

Specifications

• Brand: Denso
• Part number: CXD6380
• Body number: 447220-4620
• Product type: Air conditioning compressor
• Voltage: 12V
• Series: 10S15C
• Compressor mounting: Direct mount
• Fitting type: Pad

Known fitment references

• Fendt Tractor 204/306/600 from 01/1960
• Fendt Tractor Farmer 200 - 400 from 01/1974
• Fendt Tractor 930 7.1L from 01/2006
• Fendt applications are also referenced under Fendt Farmer, Fendt Favorit and Fendt Vario groups in the supplied fitment data

Application and Buying Notes

Before ordering, confirm the compressor matches the existing unit by part number CXD6380 and body number 447220-4620, then compare the mounting style, pad fitting type, 133mm clutch diameter and pulley section A. Those details are often the quickest way to rule a unit in or out when replacing an air conditioning compressor on a tractor application.

The listed oil type is PAG46, so the lubricant specification should be treated carefully during installation and commissioning. If the vehicle already contains another oil type, check the system requirements before fitting, as air conditioning components are sensitive to the correct oil choice and the compressor should be prepared according to the vehicle’s service requirements.

The supplied fitment references point to Fendt tractors across several model groups and years, including Fendt Tractor 204/306/600 from 01/1960, Farmer 200 - 400 from 01/1974 and 930 7.1L from 01/2006. That still does not replace a direct check against the existing compressor, because tractors in the same model family can differ in compressor setup, brackets or pulley arrangement.

This compressor is a Denso unit with direct mount configuration and no dust cover, which makes the physical details especially important. If you are replacing a worn compressor, compare the old unit carefully rather than relying on model name alone. The one year warranty covers the part as supplied, but correct identification and installation remain essential for a successful repair.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number CXD6380 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type AIR CONDITIONING COMPRESSOR, Unit of Measure EACH, Warranty One Year, Clutch Diameter 133mm, Fitting Type Pad, Series 10S15C, Voltage 12, Dust Cover Y/N No, Product Group 2 AC COMPONENTS.

Additional published details for cross-checking include Part No. CXD6380, Brand DENSO, Description Denso Air Conditioning Compressor 12V Direct Mount 10S15C, Body Number 447220-4620, Compressor Mounting Direct Mount, Pulley Section A, Suits Unit Make Denso, Note Oil Type Pag46, Weight 6.48kg, Product Group 1 COOLING.

Denso Air Conditioning Compressor 12V Direct Mount 10S15C. Part number CXD6380 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Pulley configuration is A. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number CXD6380, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a air conditioning compressor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FENDT FARMER, FENDT FARMER 1974, FENDT FARMER 1979, FENDT FARMER 1980. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is One Year. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm fitment using part number CXD6380, body number 447220-4620, the 12V direct mount configuration, pad fitting, 133mm clutch diameter and pulley section A before ordering.

FAQ

What is the part number for this compressor?

The part number supplied for this Denso air conditioning compressor is CXD6380. The body number is 447220-4620.

What voltage does this compressor use?

It is a 12V compressor.

What type of mounting does it have?

It is listed as a direct mount compressor with a pad fitting type.

What clutch diameter is specified?

The clutch diameter is 133mm.

What oil type is specified?

The listed oil type is PAG46.

Which fitment references are supplied?

The supplied fitment references include Fendt Tractor 204/306/600 from 01/1960, Fendt Tractor Farmer 200 - 400 from 01/1974 and Fendt Tractor 930 7.1L from 01/2006.
