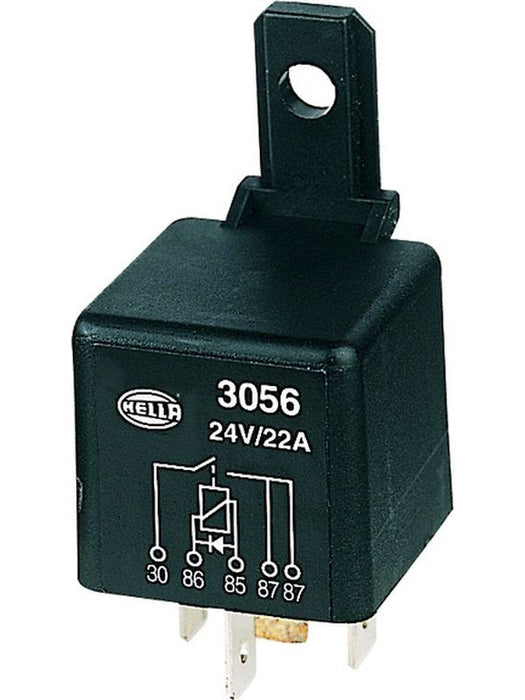

Hella Relay 24V 22A 5 Pin N/Open Diode Protection 3056

Hella Relay 24V 22A 5 Pin N/Open Diode Protection

The Hella Relay 24V 22A 5 Pin N/Open Diode Protection is a reliable component designed for automotive and industrial applications. Ideal for DIY enthusiasts, tradies, and fleet operators, this relay ensures efficient power management and protection for your electrical systems. With Hella's renowned engineering and quality assurance, you can trust this product to perform in various environments.

This relay features a diode protection system that safeguards against voltage spikes, making it suitable for use in a wide range of vehicles and machinery. Whether you are upgrading your vehicle's electrical system or maintaining fleet equipment, this relay is a dependable choice.

Key features

• 5-pin configuration for versatile installation options.
• Diode protection to prevent back EMF and voltage spikes.
• Rated for 24V and 22A, suitable for heavy-duty applications.
• Durable construction designed to withstand harsh conditions.
• Compact design for easy integration into existing systems.
• Compatible with various automotive and industrial applications.

Technical details

• Voltage rating: 24V
• Current rating: 22A
• Pin configuration: 5 pins
• Type: Normally open (N/Open)
• Protection: Diode integrated
• Material: High-quality plastic housing

Applications / fitment

This relay is typically used in automotive and industrial electrical systems for switching applications.

• Passenger vehicles
• 4x4 and off-road vehicles
• Heavy machinery
• Marine applications
• Fleet vehicles
• Workshops and service centres

Why buy from Mick’s Gone Bush?

• Trusted Australian business focused on reliable power, auto-electrical, and service parts.
• Stock sourced from reputable distributors and brands.
• Practical support for trade, off-grid, and fleet customers.
• Clear shipping, warranty, and customer service.
• Expertise in power products tailored for Australian conditions.

Frequently asked questions

How do I install the Hella Relay?

Installation involves connecting the relay to your vehicle's electrical system according to the pin configuration. Ensure to follow the wiring diagram for proper connections.

What is the purpose of the diode in this relay?

The diode protects the relay from voltage spikes generated when the relay is switched off, helping to extend its lifespan and maintain system integrity.

Can this relay be used in marine applications?

Yes, the Hella Relay is suitable for marine applications, provided it is installed correctly and protected from excessive moisture.

Is this relay compatible with all 24V systems?

While the relay is rated for 24V systems, it's important to check your specific application for compatibility, especially regarding current requirements.

What is the warranty on this product?

Mick's Gone Bush offers a warranty on this product, covering manufacturing defects. Please refer to our warranty policy for more details.
