Revolution Power 12V 100Ah Slimline High Draw Lithium Battery LiFePO4

Revolution Power 12V 100Ah Ultra Slim Lithium Battery – Compact LiFePO₄ Deep Cycle Power

The Revolution Power 12V 100Ah Ultra Slim Lithium Battery delivers the same exceptional performance as the standard deep-cycle range, now in a compact, space-efficient design. Engineered for tight installations such as dual cab utes, canopies, caravans, and marine compartments, this ultra-slim LiFePO₄ battery provides high current output, lightweight construction, and unmatched reliability in Australian off-grid conditions.

Backed by Revolution Power Australia’s advanced Battery Management System (BMS), the battery ensures complete protection against over-voltage, under-voltage, over-current, and temperature extremes—guaranteeing safe operation in every environment. With a 5-year replacement warranty and proven deep-cycle technology, it’s the perfect solution for compact off-grid energy systems and mobile power setups.

Key Features & Advantages

• Ultra-Slim Design: Compact 500 × 72 × 260 mm size fits behind seats, under trays, or in canopy dead space without compromising capacity.
• High Continuous Discharge: Supports 100 A continuous draw—ideal for fridges, inverters, and 12V accessories.
• Lighter Weight: Weighs just 11.5 kg—around one-third the weight of comparable AGM batteries.
• Faster Recharge: Up to 5× faster charge rate than lead-acid batteries, reducing generator or solar recharge time.
• Longer Life Cycle: Up to 5000 cycles at 50% depth of discharge for long-term durability and cost efficiency.
• Low Self-Discharge: Retains charge for extended periods, perfect for seasonal use or emergency backup.
• Advanced BMS Protection: Monitors cell balancing, over/under-voltage, thermal management, and short-circuit protection.
• Proven Parallel Capability: Combine multiple batteries to expand total energy capacity and runtime.
• Flat Discharge Curve: Consistent voltage output for stable operation of sensitive electronics and appliances.
• Safe LiFePO₄ Chemistry: Non-toxic, non-gassing, and thermally stable—ideal for internal or enclosed use.
• Proudly Australian Owned & Supported: Backed by local expertise, warranty, and service support.

Applications

The Revolution Power 12V 100Ah Ultra Slim Lithium Battery is designed for versatility and easy installation in compact spaces while maintaining high current delivery for demanding applications:

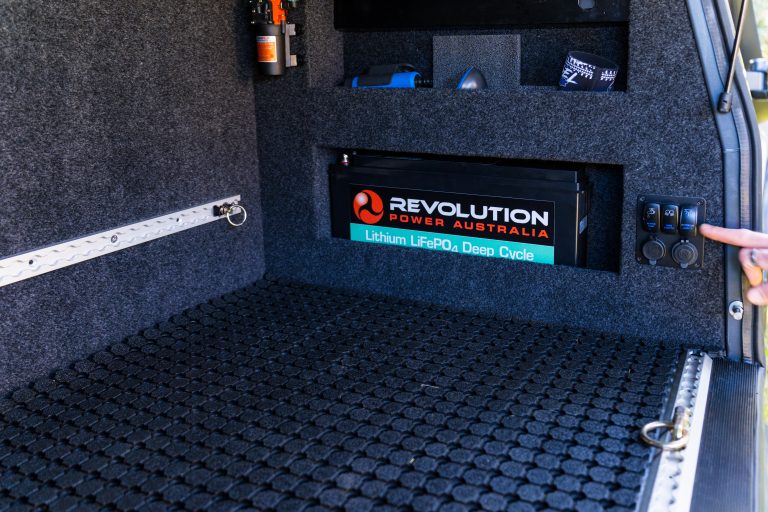

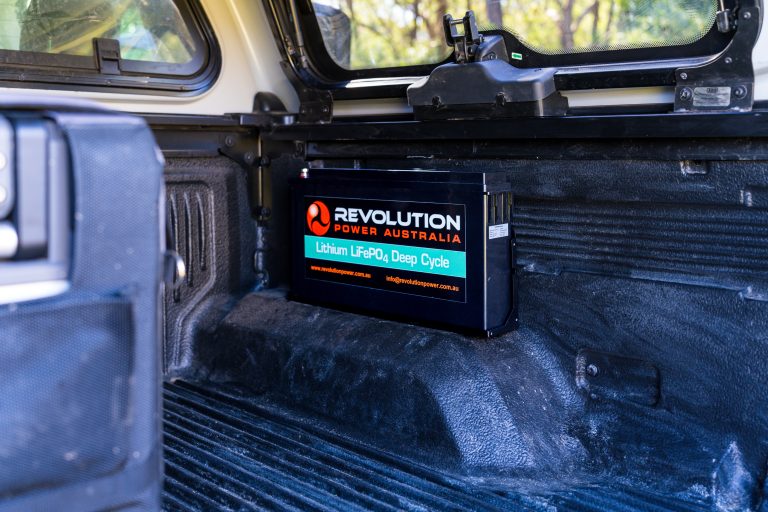

• Behind-seat mounting in dual cab utes or 4WD canopies.
• Energy storage for caravans, camper trailers, and motorhomes.
• Marine and boating systems – lightweight, vibration-resistant, and waterproof housing.
• Work vehicles and trade setups needing compact auxiliary power.
• Solar and off-grid power systems where installation space is limited.

Technical Specifications

• Nominal Voltage: 12.8 V
• Capacity: 100 Ah / 1280 Wh
• Cell Chemistry: LiFePO₄ (Lithium Iron Phosphate)
• Dimensions (L × W × H): 500 × 72 × 260 mm
• Weight: 11.5 kg
• Continuous Discharge Current: 100 A
• Recommended Charge Voltage: 14.6 V ± 0.2 V
• Discharge Cut-Off Voltage: 10.0 V
• Cycle Life: Up to 5000 cycles @ 50% DOD
• Operating Temperature – Charge: 0 °C to 45 °C
• Operating Temperature – Discharge: –20 °C to 60 °C
• Self-Discharge Rate: ≤ 3 % per month
• Terminal Type: M8
• Case Material: Fire-retardant ABS housing
• Ingress Protection: IP65 (Dust and Water Resistant)
• Warranty: 5-Year Replacement

Battery Management System (BMS)

The inbuilt Battery Management System is designed to maintain safety and performance in demanding Australian conditions. It balances individual cells, protects against over-discharge and overcharge, and monitors internal temperature during high draw cycles. The result is a maintenance-free system that delivers stable power and prolonged life expectancy.

Performance & Installation Benefits

Thanks to its ultra-slim form factor, the Revolution Power 12V 100Ah Lithium Battery can be mounted vertically or horizontally in spaces where traditional batteries cannot fit. Whether tucked behind a seat or installed under a tray, it delivers powerful, reliable energy without sacrificing capacity or safety.

When paired with a quality solar charging system, it provides a complete off-grid power solution for 4WD, marine, and mobile living environments.

Environmental & Safety Advantages

Built using LiFePO₄ chemistry, this battery is non-hazardous, non-gassing, and recyclable, making it both safe and environmentally responsible. Its low self-discharge rate allows for long-term storage without performance loss—ideal for backup or seasonal use.

Available Configurations

• Battery Only: Standard configuration for direct installation.
• Battery with Mounting Bracket: Secure fitment option for vertical or canopy installation.

Why Choose Revolution Power?

• Proven LiFePO₄ reliability and deep-cycle performance.
• Engineered for Australian conditions and compact spaces.
• Advanced BMS protection and stable high current output.
• Lightweight, efficient, and maintenance-free design.
• Backed by Australian technical support and a 5-year replacement warranty.

FAQs – Revolution Power 12V 100Ah Ultra Slim Lithium Battery

Q: What makes the Ultra Slim battery different from standard lithium models?
A: Its slim 72 mm profile allows it to fit in narrow or hidden spaces, such as behind seats or inside canopies, without losing capacity or output performance.

Q: Can this battery power an inverter?
A: Yes, the 100 A continuous discharge rate makes it ideal for running inverters, fridges, lighting, and other high-draw devices.

Q: Is it safe for enclosed installations?
A: Yes. The LiFePO₄ chemistry is non-gassing and thermally stable, making it suitable for internal or canopy-mounted systems.

Q: Can I mount this battery vertically?
A: Yes, the compact casing and robust BMS allow vertical or horizontal installation depending on your setup.

Q: What warranty does this battery include?
A: Every Revolution Power battery includes a 5-year full replacement warranty, backed by Australian support.
