Revolution Power 12V 60Ah Slimline LiFePO₄ Battery – Lightweight High-Draw Deep

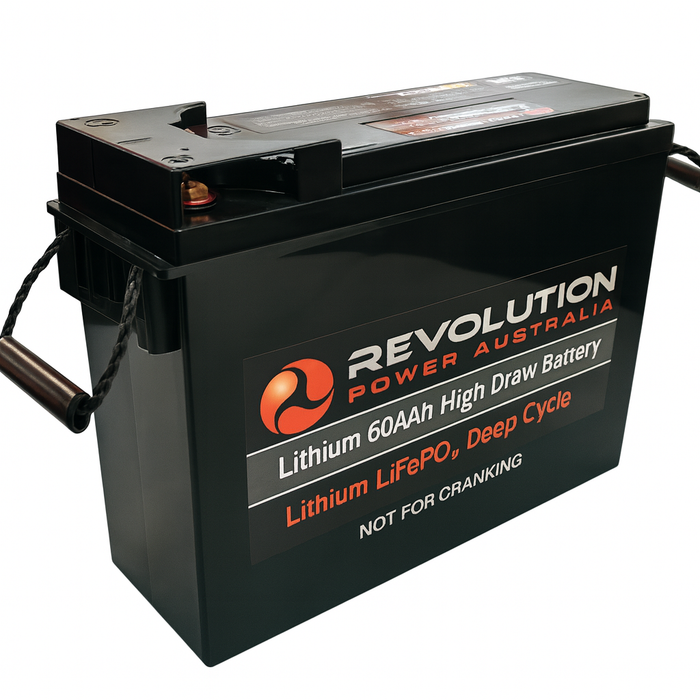

Revolution Power 12V 60Ah Slimline High Draw Lithium Battery

Revolution Power’s 12V 60Ah Slimline Lithium Battery is engineered for serious off-grid and high-draw applications across Australia’s toughest environments. Leveraging state-of-the-art LiFePO₄ chemistry and an integrated Battery Management System (BMS), this compact powerhouse delivers exceptional energy density, safety, and lifespan. Whether installed in a caravan, 4WD canopy, marine vessel, or mobile workstation, it provides clean, stable power where reliability matters most.

As part of Revolution Power’s advanced deep-cycle lithium series, the 60Ah Slimline model offers five-times faster recharge times than AGM batteries and a service life exceeding 5,000 cycles at 50% depth of discharge. Proudly Australian-owned and operated, Revolution Power batteries are built to outperform in harsh climates — from coastal humidity to outback heat.

Lightweight, compact, and purpose-built for mobility

Weighing just 7.7 kg and measuring 291 × 106 × 223 mm, this slimline battery delivers heavyweight performance in a small footprint. The reduced mass and size simplify installation in tight compartments, while the low self-discharge rate ensures the battery stays ready even after months of inactivity.

Key features

• Ultra-Lightweight Design: Around one-third the weight of comparable AGM batteries for easier installation and improved efficiency.
• Rapid Recharge: Up to five times faster recharge capability compared with conventional deep-cycle lead-acid units.
• Extended Life Cycle: Up to 5,000 cycles at 50% depth of discharge — delivering years of dependable service.
• Built-in Battery Management System (BMS): Protects against over-charge, over-discharge, short circuit, and thermal overload while ensuring cell balance.
• High Discharge Capability: Maintains voltage under high load — ideal for compressors, inverters, and heavy DC appliances.
• Flat Discharge Curve: Provides consistent voltage output for longer runtime and stable inverter performance.
• Parallel Connectivity: Proven parallel ability for expanded capacity in larger off-grid or hybrid systems.
• Low Self-Discharge: Retains charge efficiently, even during long storage periods.
• Safe LiFePO₄ Chemistry: Non-volatile and thermally stable — the safest lithium configuration available.

Built for Australian conditions

Designed and tested locally, the Revolution Power 12V 60Ah Slimline Lithium Battery withstands Australia’s variable climate. It performs consistently across high-temperature regions and rugged terrains, offering a dependable solution for touring, commercial, and marine environments.

The integrated BMS actively manages cell balance and temperature protection, ensuring operational safety during extreme weather. For optimal performance, mount in a ventilated space away from direct radiant heat and always use chargers with a lithium-specific profile.

Applications

• Caravans and camper trailers
• Motorhomes and touring 4WDs
• Marine vessels and house banks
• Worksite utes, service vehicles, and tool power
• Off-grid solar and backup energy systems
• Portable lighting, pumps, and communications gear

Technical specifications

Nominal Voltage: 12.8 V
Nominal Capacity: 60 Ah
Energy Storage: ~768 Wh usable
Cycle Life: Up to 5,000 cycles @ 50% DoD
Charge Voltage: 14.5 ± 0.1 V
Float Voltage: 13.8 ± 0.1 V
Discharge Cut-off: 11.0 V
Maximum Charge Current: 60 A
Maximum Discharge Current: 100 A
Terminal Type: M8 bolts
Weight: 7.7 kg
Dimensions: 291 × 106 × 223 mm
Chemistry: LiFePO₄ (Lithium Iron Phosphate)
Temperature Range: Charge 0 °C – 45 °C / Discharge –20 °C – 60 °C
Enclosure: Slimline ABS case with integrated BMS
Warranty: 3-year manufacturer warranty

Installation & charging recommendations

• Use a LiFePO₄-compatible charger or MPPT controller set to 14.5 V bulk and 13.8 V float.
• Install upright in a ventilated, dry location away from direct heat sources.
• Fuse within 200 mm of the positive terminal and size cabling for ≤3 % voltage drop.
• Never charge below 0 °C — discharge is permissible to –20 °C within limits.
• For parallel installations, use identical models and equal cable lengths.

Shipping & support

Mick’s Gone Bush offers Australia-wide shipping through lithium-certified carriers. All batteries ship pre-tested with serial-number verification and safety documentation. Our support team can assist with system design, charger matching, and installation guidance for caravans, marine, or remote off-grid setups.

FAQs

1) Can this battery run a 1000W inverter?

Yes, the 12V 60Ah battery can comfortably support short-term loads up to 100A. For continuous high-draw use, ensure your inverter efficiency and BMS discharge limits are aligned.

2) How long will it last compared with an AGM?

At typical use levels, expect five to ten times the cycle life of AGM — up to 5,000 cycles versus 500–800 cycles for lead-acid equivalents.

3) Can I mount it on its side?

Yes, the Slimline design allows flexible mounting positions; however, upright installation is recommended for maximum heat dissipation and cable strain relief.

4) Does it require a special charger?

Use a charger with a LiFePO₄ charge profile. Standard lead-acid chargers may under- or over-charge the pack, affecting longevity.

5) Can I connect more than one battery?

Yes — the 60Ah Slimline supports parallel connection for higher capacity. Always connect batteries of identical type, age, and charge level.

6) Is it safe to use inside a vehicle or caravan?

Absolutely. LiFePO₄ chemistry is inherently stable, with no off-gassing. The integrated BMS adds multiple layers of electrical and thermal protection for safe indoor use.
