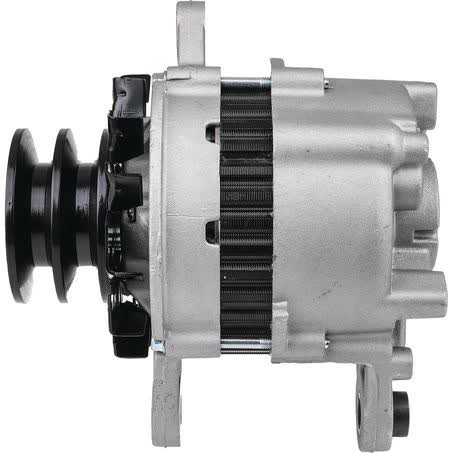

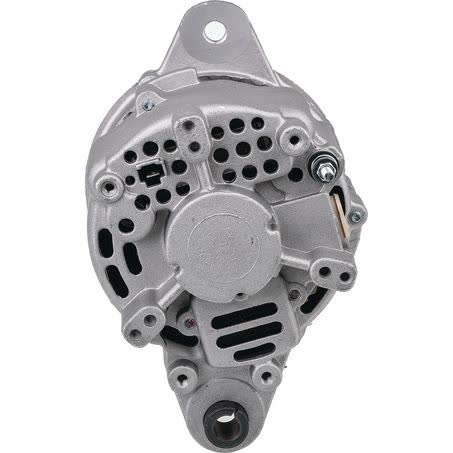

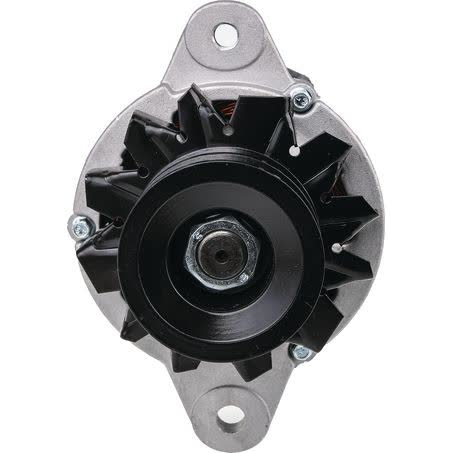

OEX Alternator 24V 30A Mitsubishi Style MXA9608

The OEX MXA9608 is a new 24V alternator rated at 30 amps, built in Mitsubishi style for applications that require that mounting and electrical format. It is listed as an alternator with an internal regulator, twin leg mounting, and a BB pulley section, so the key checks are voltage, output, and physical fit before ordering.

This unit carries an 82mm pulley outside diameter, 82mm inside mounting legs, a 175mm centre-to-centre mount, and a 12mm pivot hole diameter. The adjusting hole is M12x1.25, which makes the mounting pattern an important part of the identification process on the vehicle or machine.

OEX lists this part as part number MXA9608, with a pin code of IR15 and a weight of 6.06kg. It is supplied new and backed by a 3yr passenger / 1yr commercial warranty, which gives a clear reference point for buyers comparing replacement alternators in the 24V rotating electrical category.

Key Features

• 24V alternator, 30 amp output
• Mitsubishi style unit
• New replacement part
• Internal regulator
• Twin leg alternator mount
• BB pulley section

Specifications

• Brand: OEX
• Product type: Alternator
• Part No.: MXA9608
• Voltage: 24
• Power rating: 30 amp
• Regulator type: Internal
• Alternator mount: Twin leg
• Inside mounting legs: 82mm

Fitment and application checks

• Suits unit make: Mitsubishi
• Fitment data also references applications across Mitsubishi Fuso, Isuzu, Caterpillar, Kato, Kobelco and Sumitomo ranges
• Listed sample applications include CATERPILLAR E70, ISUZU F, K27 FH-SERIES, KATO HD1250V-II, KOBELCO K912/A and MITSUBISHI FUSO AERO BUS
• Because the listing identifies a Mitsubishi style alternator, confirm the mounting pattern, pulley, voltage and output against the original unit before ordering

Application and Buying Notes

The most important checks for this alternator are the 24V system voltage, 30A output, and the mounting measurements: 82mm inside mounting legs, 175mm centre-to-centre, and a 12mm pivot hole. If any one of these does not match the original unit, the alternator may not install correctly even if the vehicle family appears similar.

The pulley details also matter. This unit has an 82mm pulley outside diameter and a BB pulley section, so the belt profile and pulley size need to match the existing setup. The regulator is internal, which is another useful identifier when comparing it to a removed alternator or a parts listing from the machine.

This alternator is listed as a new OEX part, not a remanufactured unit, and it weighs 6.06kg. That weight and the IR15 pin code can help when checking against a removed alternator, but the part number MXA9608 and the physical measurements remain the safest way to confirm suitability.

The fitment information supplied includes Mitsubishi Fuso, Isuzu, Caterpillar, Kato, Kobelco and Sumitomo applications, but those group names are only a starting point. Confirm the exact application details, the mounting style, and the electrical specification on the machine before purchasing, especially where equipment may have been fitted with different charging components over its working life.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXA9608 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 82mm, Pivot Hole Diameter 12, Pulley Outside Diameter 82mm, Regulator Type Internal, Voltage 24, Mount Cnt to Cnt 175mm, Weight 6.06kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. MXA9608, Brand OEX, Description OEX Alternator 24V 30A Mitsubishi Style, Adjusting Hole Diameter M12x1.25, Pin Code IR15, Power Rating (Amp) 30, Pulley Section BB, Suits Unit Make Mitsubishi, Alternator Mount Twin Leg.

OEX Alternator 24V 30A Mitsubishi Style. Part number MXA9608 should be checked first. Listed voltage is 24. Listed output rating is 30. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is BB. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number MXA9608, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 and output 30 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm compatibility by matching the part number MXA9608, the Mitsubishi style mounting, and the listed measurements before ordering. Application references should be checked against the original alternator on the vehicle or machine, as fitment can vary within the same model family.

FAQ

What is the part number for this alternator?

The part number is MXA9608. For this listing, part number MXA9608 is the main reference point. Listed voltage is 24. Listed output rating is 30. Published fitment references include CATERPILLAR E70, CATERPILLAR E70 1995, ISUZU F. These details should still be checked against the original unit before ordering.

Is this alternator 24 volt?

Yes. It is listed as a 24V alternator. For this listing, part number MXA9608 is the main reference point. Listed voltage is 24. Listed output rating is 30. Published fitment references include CATERPILLAR E70, CATERPILLAR E70 1995, ISUZU F. These details should still be checked against the original unit before ordering.

What is the output rating?

The power rating is 30 amp. For this listing, part number MXA9608 is the main reference point. Listed voltage is 24. Listed output rating is 30. Published fitment references include CATERPILLAR E70, CATERPILLAR E70 1995, ISUZU F. These details should still be checked against the original unit before ordering.

Is the regulator internal or external?

It has an internal regulator. For this listing, part number MXA9608 is the main reference point. Listed voltage is 24. Listed output rating is 30. Published fitment references include CATERPILLAR E70, CATERPILLAR E70 1995, ISUZU F. These details should still be checked against the original unit before ordering.

Is this a new unit?

Yes. It is listed as new, not remanufactured. For this listing, part number MXA9608 is the main reference point. Listed voltage is 24. Listed output rating is 30. Published fitment references include CATERPILLAR E70, CATERPILLAR E70 1995, ISUZU F. These details should still be checked against the original unit before ordering.

What warranty is listed?

The listed warranty is 3yr Passenger / 1yr Commercial. For this listing, part number MXA9608 is the main reference point. Listed voltage is 24. Listed output rating is 30. Published fitment references include CATERPILLAR E70, CATERPILLAR E70 1995, ISUZU F. These details should still be checked against the original unit before ordering.
