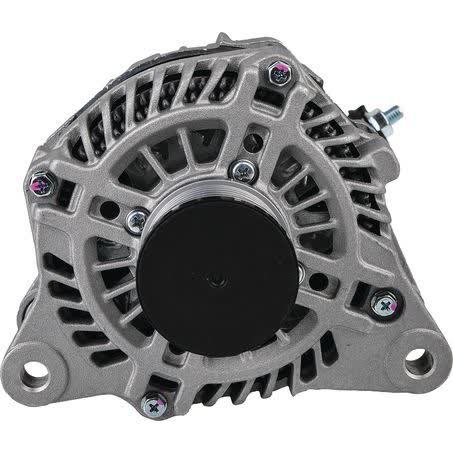

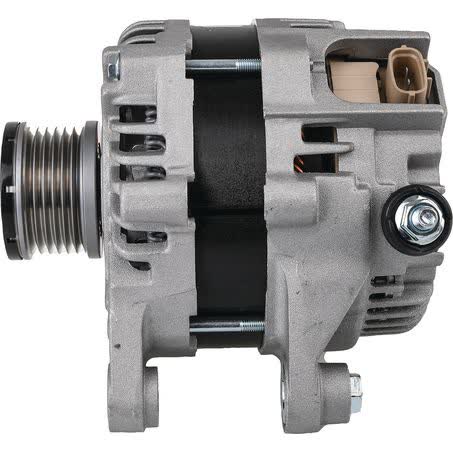

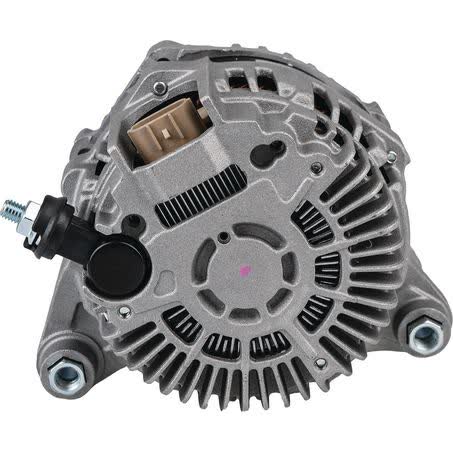

OEX Alternator 12V 150A Mitsubishi Style MXA2067

The OEX Alternator MXA2067 is a 12V, 150A unit in Mitsubishi style, supplied new and sold as each. It features an internal regulator, a 6 groove pulley, and a quad leg alternator mount, so the physical mounting and drive details are just as important as the electrical rating when checking replacement suitability.

This alternator uses inside mounting legs of 47mm, a mount centre-to-centre dimension of 146mm, and a pivot hole diameter of M10x1.25 / 10. The adjusting hole diameter is also M10x1.25 / 10. Those measurements should be compared carefully with the existing unit before purchase, especially where the alternator sits in a tight engine bay or where the bracket layout leaves little room for variation.

The listed pin code is IR140 and the unit is noted as stop/start compatible. For buyers comparing against the original alternator, the key identifiers to keep on hand are part number MXA2067, OEX brand, Mitsubishi suit make, and the 12V 150A power rating. These details help narrow the match to the correct electrical and mounting arrangement.

Key Features

• 12V alternator with 150A output
• New unit, supplied each
• Internal regulator
• 6 groove pulley
• Quad leg alternator mount
• Stop/start compatible

Specifications

• Part No.: MXA2067
• Brand: OEX
• Product type: Alternator
• Voltage: 12V
• Power rating: 150A
• Regulator type: Internal
• Pulley section: 6 groove
• Pulley outside diameter: 51mm

Fitment guidance

• MAZDA: CX-5, CX-5 2012, CX-5 2013, CX-5 2014, CX-5 2015, plus other listed applications

Application and Buying Notes

Before ordering, match the alternator by part number MXA2067, then confirm the physical dimensions against the unit being replaced. The 47mm inside mounting legs, 146mm mount centre-to-centre, M10x1.25 / 10 pivot hole, and M10x1.25 / 10 adjusting hole are all practical checkpoints that matter just as much as the 12V 150A electrical rating.

The pulley details also need to line up with the belt system already on the vehicle. This unit has a 51mm outside pulley diameter and a 6 groove pulley section, so belt type and pulley configuration should be checked before fitting. A mismatch here can stop the alternator from aligning correctly even if the electrical output appears suitable.

This alternator is described as Mitsubishi style and suited to Mitsubishi applications, with a stop/start compatible note. That helps narrow the search, but it is still important to compare the original unit, mounting style, and connector information. The pin code listed is IR140, which is another useful identifier when checking against the existing part.

The warranty listed is 3 years for passenger use and 1 year for commercial use. That warranty detail is useful, but it does not replace the need to confirm the application and physical fit. Alternators are best selected from a combination of part number, mounting pattern, pulley configuration, and electrical rating rather than from appearance alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXA2067 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 47mm, Pivot Hole Diameter M10x1.25 / 10, Pulley Outside Diameter 51mm, Regulator Type Internal, Voltage 12, Alternator Mount Quad Leg, New / Reman. New.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. MXA2067, Brand OEX, Description OEX Alternator 12V 150A Mitsubishi Style, Adjusting Hole Diameter M10x1.25 / 10, Pin Code IR140, Power Rating (Amp) 150, Pulley Section 6 Groove, Suits Unit Make Mitsubishi.

OEX Alternator 12V 150A Mitsubishi Style. Part number MXA2067 should be checked first. Listed voltage is 12. Listed output rating is 150. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Quad Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number MXA2067, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 150 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm compatibility using part number MXA2067, the Mitsubishi style application, and the listed mounting and pulley measurements before purchase. If the original alternator differs in mounting layout, pulley section, connector code, or overall dimensions, do not assume interchange.

FAQ

What is the part number for this alternator?

The part number is MXA2067. For this listing, part number MXA2067 is the main reference point. Listed voltage is 12. Listed output rating is 150. Published fitment references include MAZDA CX-5, MAZDA CX-5 2012, MAZDA CX-5 2013. These details should still be checked against the original unit before ordering.

What voltage and output does it have?

It is a 12V alternator with a 150A power rating. For this listing, part number MXA2067 is the main reference point. Listed voltage is 12. Listed output rating is 150. Published fitment references include MAZDA CX-5, MAZDA CX-5 2012, MAZDA CX-5 2013. These details should still be checked against the original unit before ordering.

Is this alternator new or remanufactured?

It is listed as new. For this listing, part number MXA2067 is the main reference point. Listed voltage is 12. Listed output rating is 150. Published fitment references include MAZDA CX-5, MAZDA CX-5 2012, MAZDA CX-5 2013. These details should still be checked against the original unit before ordering.

What type of regulator does it use?

It has an internal regulator. For this listing, part number MXA2067 is the main reference point. Listed voltage is 12. Listed output rating is 150. Published fitment references include MAZDA CX-5, MAZDA CX-5 2012, MAZDA CX-5 2013. These details should still be checked against the original unit before ordering.

What pulley setup does it have?

It has a 6 groove pulley and a 51mm pulley outside diameter. For this listing, part number MXA2067 is the main reference point. Listed voltage is 12. Listed output rating is 150. Published fitment references include MAZDA CX-5, MAZDA CX-5 2012, MAZDA CX-5 2013. These details should still be checked against the original unit before ordering.

What should I check before buying?

Check part number MXA2067, the 47mm inside mounting legs, 146mm mount centre-to-centre, M10x1.25 / 10 pivot and adjusting holes, and the 6 groove pulley section against the original unit. For this listing, part number MXA2067 is the main reference point. Listed voltage is 12. Listed output rating is 150. Published fitment references include MAZDA CX-5, MAZDA CX-5 2012, MAZDA CX-5 2013. These details should still be checked against the original unit before ordering.
