OEX Alternator 12V 110A Bosch Style BXA062

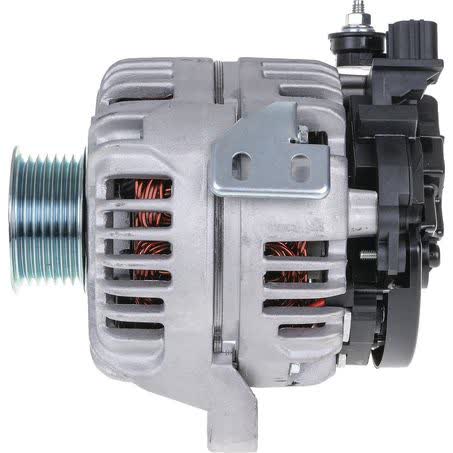

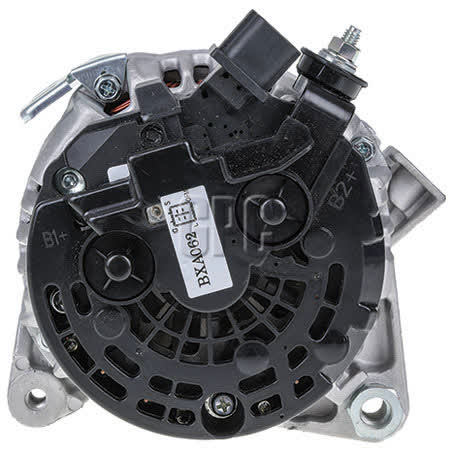

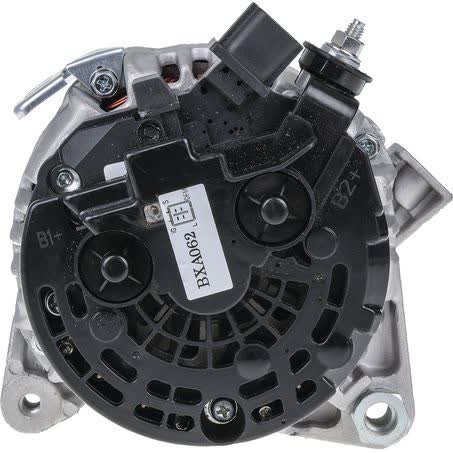

The OEX Alternator BXA062 is a new 12V alternator rated at 110A and set up in a Bosch style configuration. It uses an internal regulator, a 7 groove pulley, and a twin leg alternator mount, so the physical mounting and pulley arrangement are important points to confirm before purchase.

Key mounting dimensions are listed as 45mm inside mounting legs, a 124mm mount centre to centre measurement, an M10 x 1.25 pivot hole diameter, and an M8 x 1.25 adjusting hole diameter. Those measurements are the practical checks that help match the replacement unit to the vehicle and bracket layout already in place.

This alternator is identified as part number BXA062 and is supplied by OEX in the rotating electrical range. The unit is listed as 5.9kg and carries a 3 year passenger / 1 year commercial warranty, which gives a clear guide to how the part is classified for use and support.

Key Features

• New alternator, not remanufactured
• 12V output with 110A power rating
• Bosch style unit
• Internal regulator
• 7 groove pulley
• Twin leg alternator mount

Specifications

• Voltage: 12V
• Output: 110A
• Part No.: BXA062
• Brand: OEX
• Suits unit make: Bosch
• Regulator type: Internal
• Alternator mount: Twin Leg
• Pulley outside diameter: 56mm

Fitment details provided

• TOYOTA
• TOYOTA ALPHARD
• TOYOTA ALPHARD / VELLFIRE
• TOYOTA AVENSIS VERSO
• TOYOTA RAV 4

Application and Buying Notes

Before ordering, check the part number BXA062 against the existing alternator and compare the Bosch style mounting layout, because this unit is specified with a twin leg mount, 45mm inside mounting legs, and a 124mm centre to centre measurement. Those three points are usually the quickest way to rule in or rule out a replacement alternator.

The pulley details also matter. This alternator is listed with a 56mm outside diameter pulley and a 7 groove section, so the belt type and pulley alignment need to suit the vehicle already fitted. An internal regulator is also specified, which means the electrical setup should be matched carefully rather than assumed.

The fitment data supplied references Toyota applications, including Alphard, Alphard / Vellfire, Avensis Verso and RAV 4. That is useful as a guide, but the safest approach is still to confirm the vehicle application, the mounting dimensions, and the unit make before purchase, especially because alternators can vary within the same model range.

This OEX unit is listed as new and weighs 5.9kg, which may be helpful when comparing like-for-like with the removed part. If you are replacing a Bosch style alternator, matching the regulator type, pulley section, and bolt spacing is the best way to avoid installation delays or bracket mismatch.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXA062 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 45mm, Pivot Hole Diameter M10 x 1.25, Pulley Outside Diameter 56mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 124mm, Weight 5.9kg.

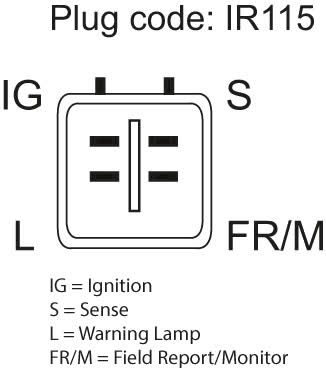

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. BXA062, Brand OEX, Description OEX Alternator 12V 110A Bosch Style, Adjusting Hole Diameter M8 x 1.25, Pin Code IR115, Power Rating (Amp) 110, Pulley Section 7 Groove, Suits Unit Make Bosch, Alternator Mount Twin Leg.

OEX Alternator 12V 110A Bosch Style. Part number BXA062 should be checked first. Listed voltage is 12. Listed output rating is 110. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 7 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number BXA062, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 110 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm compatibility using part number BXA062, the Bosch style application, and the listed mounting and pulley measurements before ordering. Vehicle fitment should be checked against the actual unit fitted to the vehicle, not only the model name.

FAQ

Is this alternator new or remanufactured?

It is listed as new. For this listing, part number BXA062 is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include TOYOTA ALPHARD, TOYOTA ALPHARD / VELLFIRE, TOYOTA ALPHARD / VELLFIRE 2008. These details should still be checked against the original unit before ordering.

What is the output rating of this alternator?

The alternator is rated at 110A and operates at 12V. For this listing, part number BXA062 is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include TOYOTA ALPHARD, TOYOTA ALPHARD / VELLFIRE, TOYOTA ALPHARD / VELLFIRE 2008. These details should still be checked against the original unit before ordering.

What part number should I match?

The listed part number is BXA062. For this listing, part number BXA062 is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include TOYOTA ALPHARD, TOYOTA ALPHARD / VELLFIRE, TOYOTA ALPHARD / VELLFIRE 2008. These details should still be checked against the original unit before ordering.

What type of regulator does it use?

It uses an internal regulator. For this listing, part number BXA062 is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include TOYOTA ALPHARD, TOYOTA ALPHARD / VELLFIRE, TOYOTA ALPHARD / VELLFIRE 2008. These details should still be checked against the original unit before ordering.

What mounting measurements are listed?

The listed measurements are 45mm inside mounting legs, 124mm mount centre to centre, an M10 x 1.25 pivot hole diameter, and an M8 x 1.25 adjusting hole diameter. For this listing, part number BXA062 is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include TOYOTA ALPHARD, TOYOTA ALPHARD / VELLFIRE, TOYOTA ALPHARD / VELLFIRE 2008. These details should still be checked against the original unit before ordering.

Which vehicles are referenced in the fitment data?

The supplied fitment data references Toyota, Toyota Alphard, Toyota Alphard / Vellfire, Toyota Avensis Verso, and Toyota RAV 4. Confirm the exact application against the part number and mounting details before ordering. For this listing, part number BXA062 is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include TOYOTA ALPHARD, TOYOTA ALPHARD / VELLFIRE, TOYOTA ALPHARD / VELLFIRE 2008. These details should still be checked against the original unit before ordering.
