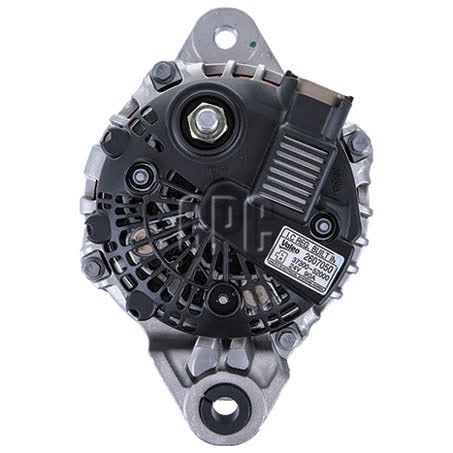

OEX Alternator 24V 90A Valeo VXA908

The OEX Alternator VXA908 is a 24V, 90A replacement alternator for Valeo applications. It is supplied new, not remanufactured, and uses an internal regulator for the charging system setup. The unit is listed with an 8 groove pulley and a 80mm pulley outside diameter, so those details should be checked against the original unit before ordering.

Key mounting and sizing details for this alternator include a twin leg alternator mount, 80mm inside mounting legs, 190mm mount centre-to-centre, 12mm adjusting hole diameter, and 12.5mm pivot hole diameter. The shaft dimension is 17, which is another useful check when comparing against the existing alternator.

This part is identified as OEX part number VXA908 and is described as a 24V 90A alternator suited to Valeo units. OEX states the unit is made using OE components, with sourcing from original equipment manufacturers and aftermarket suppliers, and that manufacture is supported by ISO9001-certified factory processes.

Key Features

• 24V alternator with 90A output
• New unit, not remanufactured
• Internal regulator
• 8 groove pulley
• Twin leg alternator mount
• Made for Valeo applications

Specifications

• Brand: OEX
• Product type: Alternator
• Part number: VXA908
• Voltage: 24V
• Power rating: 90A
• Suits unit make: Valeo
• Mount type: Twin leg
• Inside mounting legs: 80mm

Checked fitment details

• Hyundai
• Hyundai Mighty
• Hyundai Mighty 2017

Application and Buying Notes

Before ordering, compare the OEX VXA908 against the alternator already fitted to the vehicle, not just the vehicle badge. The most important checks here are 24V system voltage, 90A output, Valeo unit make, twin leg mounting, 8 groove pulley, and the listed mounting dimensions including 80mm inside mounting legs and 190mm mount centre-to-centre.

The pulley and mounting measurements matter because alternators with the same general appearance can still differ in bracket spacing, shaft size, or pulley configuration. On this unit, the pulley outside diameter is 80mm, the shaft dimension is 17, and the adjusting and pivot holes are 12mm and 12.5mm respectively. Those figures should be matched carefully if you are replacing a worn or noisy alternator.

If you are confirming compatibility for a vehicle application, use the part number VXA908 and the details above as the first reference points. The fitment information supplied includes Hyundai and Hyundai Mighty references, including Hyundai Mighty 2017, but the final check should always be against the original alternator and its mounting arrangement. That is especially important on commercial or light truck applications where variations can occur.

The internal regulator and insulated return being listed as not fitted are also useful when comparing charging system layout. If the vehicle currently uses a different regulator arrangement or a different pulley groove count, the alternator should not be assumed suitable without checking. Accurate comparison now is the best way to avoid downtime and return freight later.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXA908 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty One Year, Inside Mounting Legs 80mm, Power Rating (Amp) 90, Pulley Section 8 Groove, Suits Unit Make Valeo, Alternator Mount Twin Leg, New / Reman. New, Shaft Dimension 17.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. VXA908, Brand OEX, Description OEX Alternator 24V 90A Valeo, Adjusting Hole Diameter 12, Pivot Hole Diameter 12.5, Pulley Outside Diameter 80mm, Regulator Type Internal, Voltage 24, Mount Cnt to Cnt 190mm.

OEX Alternator 24V 90A Valeo. Part number VXA908 should be checked first. Listed voltage is 24. Listed output rating is 90. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 8 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number VXA908, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 and output 90 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm suitability by matching OEX part number VXA908, 24V system voltage, 90A output, Valeo unit make, twin leg mount, and the listed pulley and hole dimensions against the existing alternator and vehicle application.

FAQ

What is the part number for this alternator?

The OEX part number is VXA908. For this listing, part number VXA908 is the main reference point. Listed voltage is 24. Listed output rating is 90. Published fitment references include HYUNDAI MIGHTY, HYUNDAI MIGHTY 2017. These details should still be checked against the original unit before ordering.

What voltage and output does it have?

It is a 24V alternator with a 90A power rating. For this listing, part number VXA908 is the main reference point. Listed voltage is 24. Listed output rating is 90. Published fitment references include HYUNDAI MIGHTY, HYUNDAI MIGHTY 2017. These details should still be checked against the original unit before ordering.

Is this a new or remanufactured alternator?

It is listed as new. For this listing, part number VXA908 is the main reference point. Listed voltage is 24. Listed output rating is 90. Published fitment references include HYUNDAI MIGHTY, HYUNDAI MIGHTY 2017. These details should still be checked against the original unit before ordering.

What type of regulator does it use?

It uses an internal regulator. For this listing, part number VXA908 is the main reference point. Listed voltage is 24. Listed output rating is 90. Published fitment references include HYUNDAI MIGHTY, HYUNDAI MIGHTY 2017. These details should still be checked against the original unit before ordering.

What pulley and mounting details are listed?

The alternator has an 8 groove pulley, 80mm pulley outside diameter, twin leg mount, 80mm inside mounting legs, 190mm mount centre-to-centre, 12mm adjusting hole diameter, and 12.5mm pivot hole diameter. For this listing, part number VXA908 is the main reference point. Listed voltage is 24. Listed output rating is 90. Published fitment references include HYUNDAI MIGHTY, HYUNDAI MIGHTY 2017. These details should still be checked against the original unit before ordering.

Which fitment references are supplied?

The supplied fitment references include Hyundai, Hyundai Mighty, and Hyundai Mighty 2017. Final compatibility should still be confirmed against the part number and existing alternator details. For this listing, part number VXA908 is the main reference point. Listed voltage is 24. Listed output rating is 90. Published fitment references include HYUNDAI MIGHTY, HYUNDAI MIGHTY 2017. These details should still be checked against the original unit before ordering.
