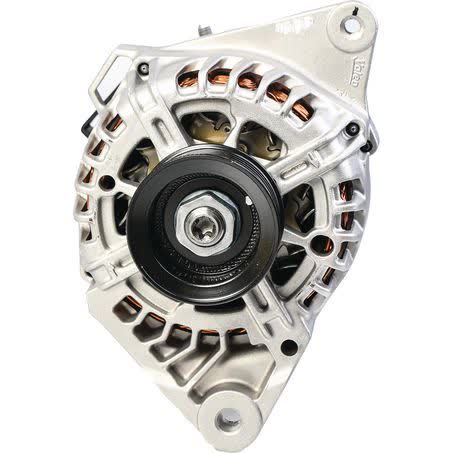

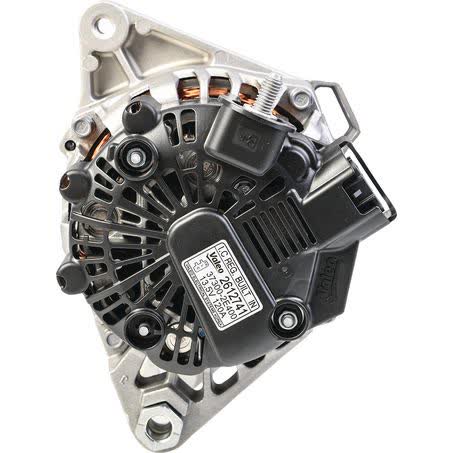

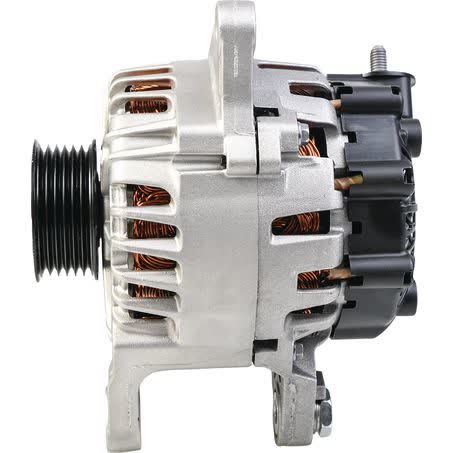

OEX Alternator 12V 120A Valeo VXA048

The OEX Alternator VXA048 is a 12V, 120A new alternator suited to Valeo applications. It uses an internal regulator, a 6 groove pulley, and a twin leg alternator mount, with a 58mm pulley outside diameter and 58mm inside mounting legs.

This unit is identified by part number VXA048 and pin code IR206. Key mounting details include an M10x1.25/10 pivot hole diameter, an M8x1.25 adjusting hole diameter, and 170mm mount centre to centre. Those measurements are the main points to check before ordering.

OEX lists this alternator as made using OE components for fit and function, and it is backed by a 3 year passenger / 1 year commercial warranty. At 5.26kg, it is supplied as an each item for rotating electrical replacement work where the original Valeo-style layout needs to be matched carefully.

Key Features

• 12V alternator with 120A output
• New unit, not remanufactured
• Internal regulator
• 6 groove pulley
• Twin leg alternator mount
• Suits Valeo unit make

Specifications

• Type: Alternator
• Brand: OEX
• Part No.: VXA048
• Voltage: 12
• Power rating: 120A
• Regulator type: Internal
• New / reman.: New
• Suits unit make: Valeo

Fitment details supplied

• No confirmed vehicle fitment list has been supplied with this item.
• The available fitment reference is limited to Valeo unit make and the application code VXA048.
• If you are matching by dimensions, compare the 58mm pulley outside diameter, 58mm inside mounting legs, 170mm mount centre to centre, M10x1.25/10 pivot hole, and M8x1.25 adjusting hole before ordering.

Application and Buying Notes

When replacing an alternator, the safest match is the part number and the physical layout. For this unit, VXA048, IR206, 12V, 120A, and the Valeo unit make are the main identifiers. The pulley is 6 groove, so the belt profile must match the vehicle setup as well as the mount style.

Measure the alternator mounting points on the vehicle and compare them to the listed 58mm inside mounting legs and 170mm mount centre to centre. The pivot hole is M10x1.25/10 and the adjusting hole is M8x1.25. Small differences in bracket spacing or hole size can stop an alternator from sitting correctly, even where the electrical rating is close.

The internal regulator is another important check. If the original unit uses a different regulation arrangement, the replacement may not be suitable even if the casing looks similar. This alternator is supplied as a new unit and is listed at 5.26kg, so it should be treated as a direct component match rather than a generic universal replacement.

Warranty terms are listed as 3 year passenger and 1 year commercial. That gives a clear indication of how the unit is supported, but it does not replace the need to confirm fitment against the vehicle and existing alternator details. A correct match still depends on the application, the mount style, the pulley section, and the electrical specification.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXA048 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 58mm, Pivot Hole Diameter M10x1.25/10, Pulley Outside Diameter 58mm, Regulator Type Internal, Voltage 12, Item Type Alternator, New / Reman. New.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. VXA048, Brand OEX, Description OEX Alternator 12V 120A Valeo, Adjusting Hole Diameter M8x1.25, Pin Code IR206, Power Rating (Amp) 120, Pulley Section 6 Groove, Suits Unit Make Valeo.

OEX Alternator 12V 120A Valeo. Part number VXA048 should be checked first. Listed voltage is 12. Listed output rating is 120. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number VXA048, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 120 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HYUNDAI TUCSON, HYUNDAI TUCSON 2015, HYUNDAI TUCSON 2016, HYUNDAI TUCSON 2017. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm fitment using the part number VXA048, the Valeo application details, and the mounting and electrical specifications before purchase. If the existing alternator differs in mount style, pulley section, hole sizes, or regulator type, it should be checked carefully against this listing.

FAQ

What is the part number for this alternator?

The part number is VXA048. The pin code is IR206.

What is the voltage and output rating?

This alternator is 12V with a 120A power rating.

Is this a new or remanufactured unit?

It is listed as a new alternator.

What regulator type does it use?

It uses an internal regulator.

What mounting details are listed?

The listed mounting details are twin leg alternator mount, 58mm inside mounting legs, 170mm mount centre to centre, M10x1.25/10 pivot hole diameter, and M8x1.25 adjusting hole diameter.

What warranty is supplied?

The warranty is listed as 3 year passenger and 1 year commercial.
