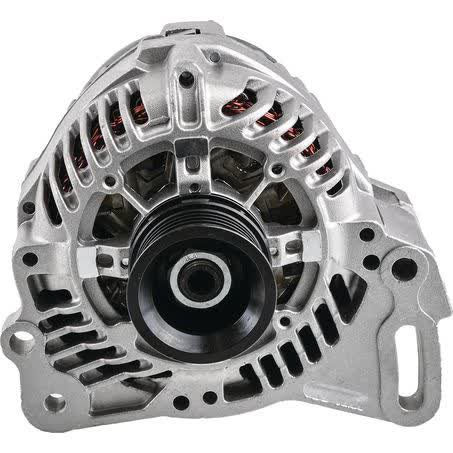

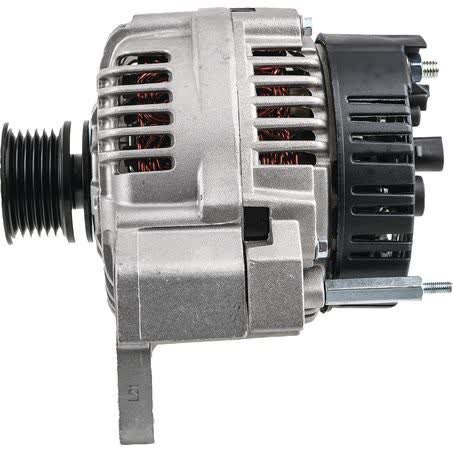

OEX Alternator 12V 90A Valeo Style VXA933

The OEX Alternator VXA933 is a new 12V, 90A unit designed in Valeo style and supplied as a twin-leg mount alternator with an internal regulator. It uses a 6 groove pulley with a 50mm outside diameter, and the note states it has a "W" terminal.

This alternator is listed with a 60mm inside mounting leg measurement, 8 / M8 pivot hole diameter, 9mm adjusting hole diameter, and 148mm mount centre to centre. Those dimensions matter when matching the alternator to the existing brackets and drive arrangement before purchase or installation.

OEX positions this alternator range as a quality aftermarket option, and the product is backed by a 3 year passenger / 1 year commercial warranty. The unit weighs 6.06kg and is supplied new, not remanufactured.

Key Features

• New 12V alternator, 90A output
• Valeo style unit with internal regulator
• Twin leg alternator mount
• 6 groove pulley, 50mm outside diameter
• Has "W" terminal
• Backed by 3 year passenger / 1 year commercial warranty

Specifications

• Part No.: VXA933
• Brand: OEX
• Product type: Alternator
• Voltage: 12V
• Power rating: 90A
• Suits unit make: Valeo
• Alternator mount: Twin leg
• Inside mounting legs: 60mm

Confirmed fitment applications

• AUDI A3
• AUDI A4
• AUDI A6
• BMW 3
• CITROEN BERLINGO
• MERCEDES-BENZ A-CLASS
• MERCEDES-BENZ C-CLASS
• MERCEDES-BENZ E-CLASS

Application and Buying Notes

Before ordering, compare the part number VXA933 with the number on the original alternator and check the listed Valeo style specification. The mounting details are specific: twin leg mount, 60mm inside mounting legs, 8 / M8 pivot hole diameter, 9mm adjusting hole diameter, and 148mm mount centre to centre.

The pulley setup is also important for compatibility. This unit uses a 6 groove pulley with a 50mm outside diameter, so it needs to match the belt arrangement already on the vehicle. The alternator is 12V and rated at 90A, with an internal regulator and a "W" terminal.

Fitment data includes a wide range of vehicles across Audi, BMW, Citroën, Mercedes-Benz, Peugeot, Porsche, Renault, Seat, Volkswagen and Volvo applications. That said, alternators can vary within the same model range, so the safest approach is to confirm the original unit type, mount style, pulley section and terminal arrangement against the vehicle already fitted.

If the original alternator differs in mount spacing, pulley groove count, terminal layout or regulator type, do not rely on the model name alone. Matching the physical dimensions and part number is the practical way to avoid installation issues and unnecessary returns.

The unit is supplied new and weighs 6.06kg. For workshop planning, that weight and the mounting style are useful indicators when comparing it with the part being removed and when checking that the brackets, belt alignment and electrical connection points are all consistent.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXA933 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 60mm, Pivot Hole Diameter 8 / M8, Pulley Outside Diameter 50mm, Regulator Type Internal, Voltage 12, Alternator Mount Twin Leg, New / Reman. New.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. VXA933, Brand OEX, Description OEX Alternator 12V 90A Valeo Style, Adjusting Hole Diameter 9, Pin Code IR139, Power Rating (Amp) 90, Pulley Section 6 Groove, Suits Unit Make Valeo.

OEX Alternator 12V 90A Valeo Style. Part number VXA933 should be checked first. Listed voltage is 12. Listed output rating is 90. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number VXA933, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Confirm compatibility using part number VXA933, the Valeo style application, and the listed mount, pulley and terminal details before ordering.

FAQ

What is the part number for this alternator?

The part number is VXA933. For this listing, part number VXA933 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include AUDI A3, AUDI A3 1997, AUDI A3 1998. These details should still be checked against the original unit before ordering.

Is this alternator new or remanufactured?

It is listed as new. For this listing, part number VXA933 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include AUDI A3, AUDI A3 1997, AUDI A3 1998. These details should still be checked against the original unit before ordering.

What voltage and output does it have?

It is a 12V alternator with a 90A power rating. For this listing, part number VXA933 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include AUDI A3, AUDI A3 1997, AUDI A3 1998. These details should still be checked against the original unit before ordering.

What type of regulator does it use?

It has an internal regulator. For this listing, part number VXA933 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include AUDI A3, AUDI A3 1997, AUDI A3 1998. These details should still be checked against the original unit before ordering.

What pulley setup is fitted?

It uses a 6 groove pulley with a 50mm outside diameter. For this listing, part number VXA933 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include AUDI A3, AUDI A3 1997, AUDI A3 1998. These details should still be checked against the original unit before ordering.

Does the listing include fitment details?

Yes. Confirmed applications include models from Audi, BMW, Citroën, Mercedes-Benz, Peugeot, Porsche, Renault, Seat, Volkswagen and Volvo, but fitment should still be checked against the original unit and part number VXA933. For this listing, part number VXA933 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include AUDI A3, AUDI A3 1997, AUDI A3 1998. These details should still be checked against the original unit before ordering.
