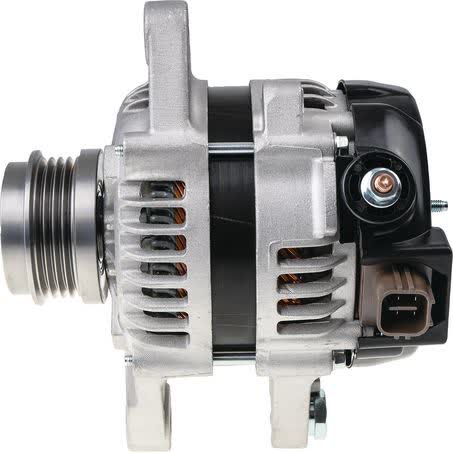

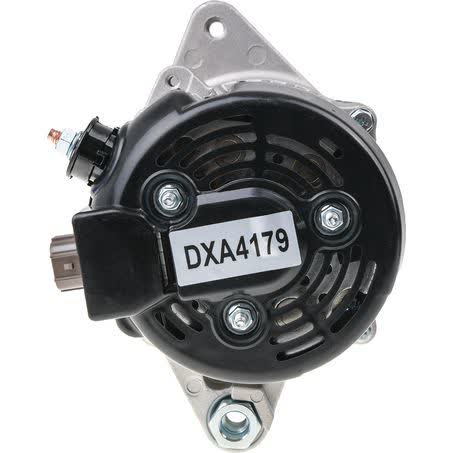

OEX Alternator 12V 80A Denso Style DXA4179

The OEX DXA4179 is a new 12V alternator rated at 80A, built in a Denso style for applications that require a twin leg mount and a 4 groove pulley. It is listed with a 160mm mount centre-to-centre measurement, 41mm inside mounting legs, and an M8x1.25 adjusting hole, so the mounting points can be checked before ordering.

This unit suits Denso units and is supplied as a new rotating electrical component, not a remanufactured exchange part. The pulley outside diameter is 57mm, and the unit weight is 4.56kg, both of which are useful reference points when comparing the replacement against the original alternator already fitted to the vehicle.

OEX lists this alternator under part number DXA4179, with a warranty of 3 years for passenger use and 1 year for commercial use. For buyers matching a charging-system replacement, the important checks are the 12V system requirement, 80A output, twin leg mounting, and the 4 groove pulley arrangement.

Key Features

• 12V alternator with 80A output
• Denso style replacement
• Twin leg alternator mount
• 4 groove pulley
• New unit
• Part number DXA4179

Specifications

• Brand: OEX
• Product type: Alternator
• Part No.: DXA4179
• Voltage: 12V
• Power rating: 80A
• New / Reman.: New
• Alternator mount: Twin Leg
• Inside mounting legs: 41mm

Fitment guidance

• Fitment details supplied include Toyota and Toyota Spade applications, with sample listings showing Toyota Spade 2012, 2013, 2014 and 2015.
• Confirm the original alternator matches the Denso style, twin leg mount, 12V system, 80A rating and 4 groove pulley before ordering.
• Check the 160mm mount centre-to-centre measurement and 41mm inside mounting legs against the existing unit.
• Verify the adjusting hole is M8x1.25 and the pulley outside diameter is 57mm if you are replacing a unit by dimensions.
• Use the part number DXA4179 and the vehicle’s original charging system details as the final check before purchase.

Application and Buying Notes

Alternators need to match the vehicle’s electrical system and physical mounting layout, so the key points here are 12V, 80A, twin leg mounting, and the 4 groove pulley. If any of those details differ from the unit already fitted, the replacement may not line up correctly or may not be the right charging specification for the application.

The listed dimensions are there to help you compare like for like. A 160mm mount centre-to-centre measurement, 41mm inside mounting legs, and an M8x1.25 adjusting hole are all practical checks when confirming a replacement alternator. The 57mm pulley outside diameter and 4 groove belt arrangement should also be matched carefully, as pulley and belt setup are common reasons a unit is rejected during installation.

This alternator is supplied new and carries OEX warranty cover of 3 years for passenger use and 1 year for commercial use. For commercial vehicles in particular, it is sensible to confirm the duty cycle, mount style, and belt configuration before fitting, because the part number DXA4179 is only useful when it lines up with the correct application and physical measurements.

Where vehicle fitment is not already confirmed by your registration or VIN lookup, compare the original alternator directly against the dimensions and mounting style listed here. That is the safest way to avoid guesswork, especially when working with Denso style charging systems where similar looking units can differ in bracket layout, pulley section, or adjuster size.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXA4179 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 41mm, Power Rating (Amp) 80, Pulley Section 4 Groove, Voltage 12, Mount Cnt to Cnt 160mm, Weight 4.56kg, Product Group 1 ROTATING ELECTRICAL.

Additional published details for cross-checking include Part No. DXA4179, Brand OEX, Description OEX Alternator 12V 80A Denso Style, Adjusting Hole Diameter M8x1.25, Pin Code IR116, Pulley Outside Diameter 57mm, Suits Unit Make Denso, Alternator Mount Twin Leg, New / Reman. New.

OEX Alternator 12V 80A Denso Style. Part number DXA4179 should be checked first. Listed voltage is 12. Listed output rating is 80. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Pulley configuration is 4 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number DXA4179, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 80 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm compatibility by matching part number DXA4179, Denso style application details, 12V system, 80A output, twin leg mount, 160mm mount centre-to-centre, 41mm inside mounting legs, M8x1.25 adjusting hole, and 4 groove pulley setup before ordering.

FAQ

What is the part number for this alternator?

The part number listed is DXA4179.

Is this alternator new or remanufactured?

It is listed as new.

What voltage and output does it have?

It is a 12V alternator with an 80A power rating.

What pulley setup does it use?

It has a 4 groove pulley with a 57mm pulley outside diameter.

What mounting style should I check?

Check for a twin leg alternator mount, 41mm inside mounting legs, a 160mm mount centre-to-centre measurement, and an M8x1.25 adjusting hole.

What warranty is listed?

OEX lists a 3 year warranty for passenger use and a 1 year warranty for commercial use.
