OEX Alternator 12V 215A Bosch Style BXA086

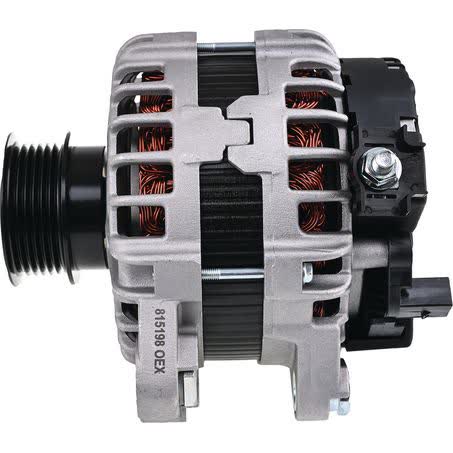

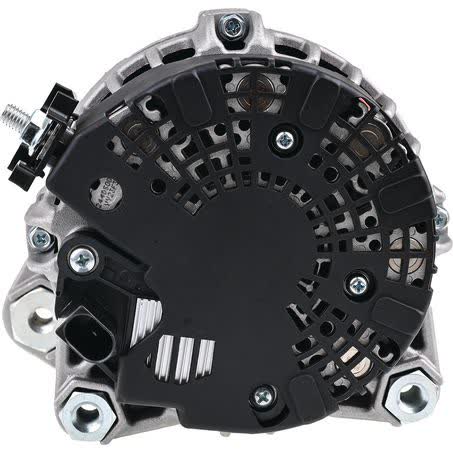

The OEX Alternator BXA086 is a new 12V unit rated at 215A, built in a Bosch style with a 6 groove pulley and internal regulator. It is listed as a quad leg alternator mount with 122mm mount centres, 47mm inside mounting legs, and M10x1.5 / 10 adjusting and pivot hole diameters.

This alternator suits Bosch unit applications and is supplied as an OEX rotating electrical component under part number BXA086. At 7.56kg, it is a substantial electrical unit, so matching the mounting arrangement, pulley section, and regulator type is important when comparing against the vehicle’s original alternator.

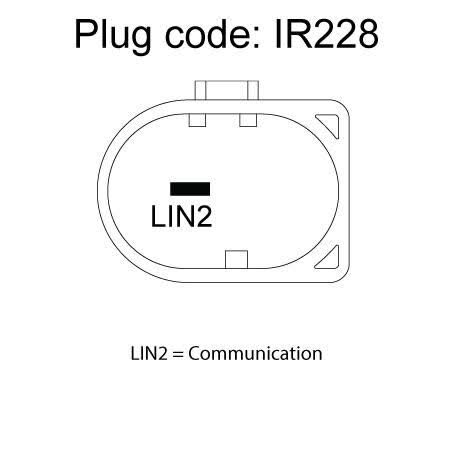

For buyers working from a part number, the key identifiers here are 12V, 215A, Bosch style, IR228 pin code, and the 6 groove pulley. Those details help narrow the correct replacement before installation, especially where the original alternator has a specific mounting pattern or electrical connector arrangement.

Key Features

• 12V alternator with 215A output
• Bosch style unit
• Internal regulator
• 6 groove pulley
• Quad leg alternator mount
• New unit, not remanufactured

Specifications

• Brand: OEX
• Product type: Alternator
• Part No.: BXA086
• Voltage: 12
• Power rating: 215A
• Regulator type: Internal
• Pulley section: 6 groove
• Pulley outside diameter: 62mm

Fitment guidance

• Fitment information provided includes Volvo applications across S60, S90, V40, V60, V90, XC60, and XC90 ranges.
• Sample applications shown include Volvo S60 models from 2013, 2014, 2015, 2016, 2017, and 2018.
• Use the vehicle’s original alternator details, connector style, pulley setup, and mounting measurements to confirm suitability before ordering.

Application and Buying Notes

This alternator is designed around a Bosch style application with a 6 groove pulley, internal regulator, and IR228 pin code, so the most reliable check is to compare the removed unit against those identifiers. The 122mm mount centres, 47mm inside mounting legs, and M10x1.5 / 10 adjusting and pivot holes are the practical measurements that matter when confirming whether the replacement will physically sit correctly.

If you are matching by part number, BXA086 is the clearest reference point. That is especially useful on vehicles where different alternator outputs, pulley arrangements, or regulator styles were used within the same model range. The fact that this unit is rated at 215A also means it should be compared carefully against the original alternator specification rather than chosen by appearance alone.

The supplied fitment information points to Volvo applications, including S60, S90, V40, V60, V90, XC60, and XC90 ranges, but exact compatibility still depends on the specific vehicle build and the alternator already fitted. Confirm the mounting pattern, pulley section, voltage, regulator type, and connector details before purchase so you avoid downtime and unnecessary returns.

As a new OEX unit, this alternator is listed with a 3 year passenger and 1 year commercial warranty. That gives buyers a clear warranty reference, but the warranty does not replace the need to check fitment first. A Bosch style 12V 215A alternator can differ from other units in the same vehicle family in small but important ways, particularly at the mount and electrical connection points.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXA086 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 47mm, Pin Code IR228, Power Rating (Amp) 215, Pulley Section 6 Groove, Suits Unit Make Bosch, Alternator Mount Quad Leg, Weight 7.56kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. BXA086, Brand OEX, Description OEX Alternator 12V 215A Bosch Style, Adjusting Hole Diameter M10x1.5 / 10, Mount Centres A 122mm, Pivot Hole Diameter M10x1.5 / 10, Pulley Outside Diameter 62mm, Regulator Type Internal, Voltage 12.

OEX Alternator 12V 215A Bosch Style. Part number BXA086 should be checked first. Listed voltage is 12. Listed output rating is 215. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Quad Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number BXA086, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 215 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include VOLVO S60, VOLVO S60 2013, VOLVO S60 2014, VOLVO S60 2015. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment using part number BXA086, the Bosch style application details, and the vehicle’s original alternator measurements and connector type before ordering. The listed Volvo applications are a guide only and should be checked against the actual unit fitted to the vehicle.

FAQ

What is the part number for this alternator?

The part number is BXA086.

What voltage and output does this alternator have?

It is a 12V alternator with a 215A power rating.

What pulley type does it use?

It has a 6 groove pulley with a 62mm outside diameter.

Does this alternator have an internal regulator?

Yes. The regulator type is internal.

Which makes are listed in the fitment information?

The fitment information includes Volvo applications, with model groups shown for S60, S90, V40, V60, V90, XC60, and XC90.

Is this a new or remanufactured alternator?

It is listed as new, not remanufactured.
