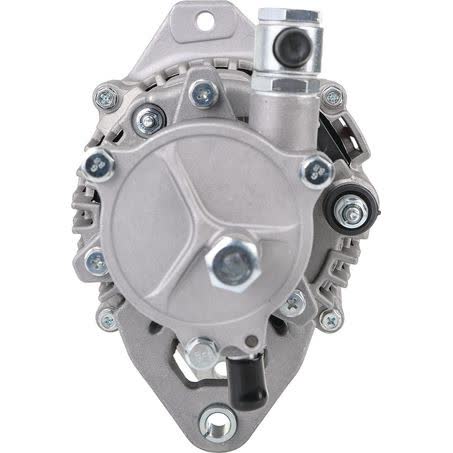

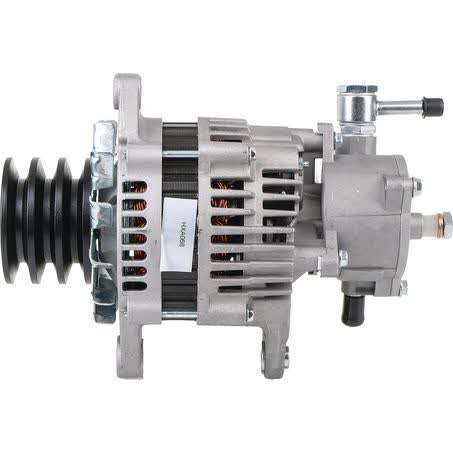

OEX Alternator 24V 50A Hitachi Style HXA068

The OEX Alternator HXA068 is a new 24V, 50A unit in Hitachi style, designed with an internal regulator and a twin leg alternator mount. It suits Hitachi applications and is listed with a 50cc vacuum pump note, so checking the mounting and drive details before ordering is important.

Key physical measurements include 79mm inside mounting legs, a 175mm mount centre-to-centre dimension, a 10mm pivot hole diameter, and an 8mm adjusting hole diameter. The pulley outside diameter is 82mm with an AAA pulley section, which makes the pulley arrangement a relevant compatibility check for the application.

This alternator is identified as OEX part number HXA068 and pin code IR97. It weighs 7.36kg and is supplied new, not remanufactured. OEX states the product is backed by a 3 year passenger / 1 year commercial warranty.

OEX products are sourced from OEM and aftermarket suppliers, with ISO9001 certified factories used to support engineering, testing and quality control procedures. For a rotating electrical part like this, the practical checks are the voltage, amperage, mount type, pulley setup, and whether the vehicle uses the same Hitachi-style fitment.

Key Features

• 24V alternator with 50A power rating
• Hitachi style unit
• Internal regulator
• Twin leg alternator mount
• New unit, not remanufactured
• OEX part number HXA068

Specifications

• Voltage: 24V
• Power rating: 50A
• Regulator type: Internal
• Alternator mount: Twin Leg
• Inside mounting legs: 79mm
• Mount centre to centre: 175mm
• Pivot hole diameter: 10mm
• Adjusting hole diameter: 8mm

Verified fitment references

• Suits unit make: Hitachi
• Listed fitment references include CASE CX210B, CASE CX225, CASE CX225SR, CASE CX235CSR, CASE CX240B and CASE CX250C
• Listed fitment references include ISUZU ELF, ISUZU FORWARD F and ISUZU N
• Listed fitment references include UD Nissan Diesel Condor, UD Nissan Diesel MK Series and UD Trucks Condor

Application and Buying Notes

Before ordering, compare the part number HXA068, the Hitachi-style designation, and the alternator mount details against the unit being replaced. The key dimensions supplied here are 79mm inside mounting legs, 175mm mount centre-to-centre, a 10mm pivot hole, and an 8mm adjusting hole, so those points should be checked against the existing alternator and brackets.

The pulley setup is also important on this 24V 50A unit. The listed pulley outside diameter is 82mm with an AAA pulley section, and the note mentions a 50cc vac pump with an adaptor to suit HXK-32 and HXK-24. That means the drive arrangement and vacuum pump setup should be confirmed carefully before fitment.

This is a new alternator with an internal regulator and a twin leg mount, so it should be matched to the vehicle’s charging system and physical mounting style rather than assumed by appearance alone. The listed fitment references cover CASE, ISUZU, UD Nissan Diesel and UD Trucks applications, but the safest match is still the part number and the exact mounting and pulley details on the old unit.

For commercial use, the warranty listed is 1 year, while passenger use is 3 years. The alternator weighs 7.36kg, which can also help when comparing against a removed unit if you are checking that the replacement is the same style and specification.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number HXA068 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 79mm, Pivot Hole Diameter 10, Pulley Outside Diameter 82mm, Regulator Type Internal, Voltage 24, Alternator Mount Twin Leg, New / Reman. New.

Additional published details for cross-checking include Weight 7.36kg, Product Group 1 ROTATING ELECTRICAL, Part No. HXA068, Brand OEX, Description OEX Alternator 24V 50A Hitachi Style, Adjusting Hole Diameter 8, Pin Code IR97, Power Rating (Amp) 50, Pulley Section AAA, Suits Unit Make Hitachi.

OEX Alternator 24V 50A Hitachi Style. Part number HXA068 should be checked first. Listed voltage is 24. Listed output rating is 50. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is AAA. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number HXA068, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 24 and output 50 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CASE CX210B, CASE CX210B 2007, CASE CX225, CASE CX225 2005, ISUZU ELF, ISUZU ELF 1985. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching HXA068, the Hitachi-style application, the 24V 50A rating, and the exact mounting and pulley measurements on the existing alternator before purchase.

FAQ

What is the part number for this alternator?

The part number is HXA068.

Is this alternator new or remanufactured?

It is listed as new.

What voltage and output does it have?

It is a 24V alternator with a 50A power rating.

Does it have an internal regulator?

Yes. The regulator type is listed as internal.

What mounting style does it use?

It uses a twin leg alternator mount, with 79mm inside mounting legs and 175mm mount centre-to-centre.

What vehicles are listed in the fitment references?

The listed references include CASE CX210B, CASE CX225, CASE CX225SR, CASE CX235CSR, CASE CX240B, CASE CX250C, ISUZU ELF, ISUZU FORWARD F, ISUZU N, UD Nissan Diesel Condor, UD Nissan Diesel MK Series and UD Trucks Condor.
