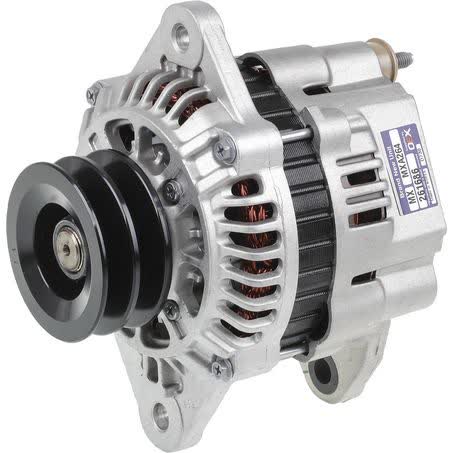

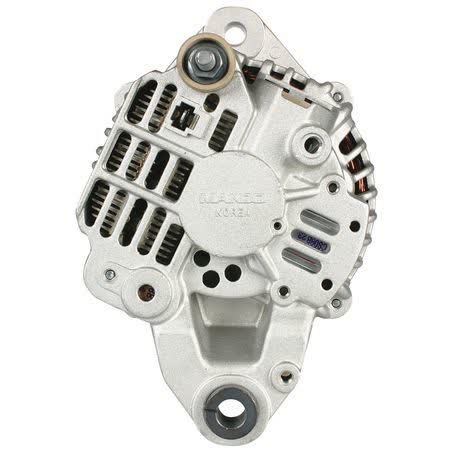

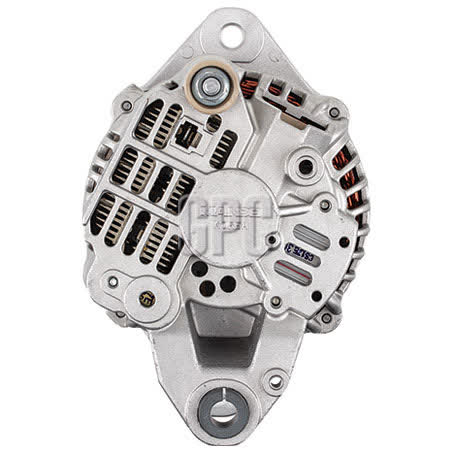

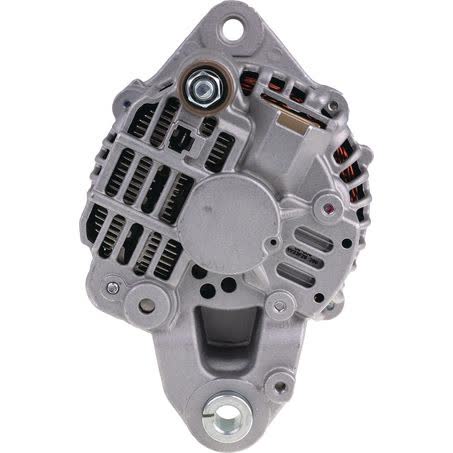

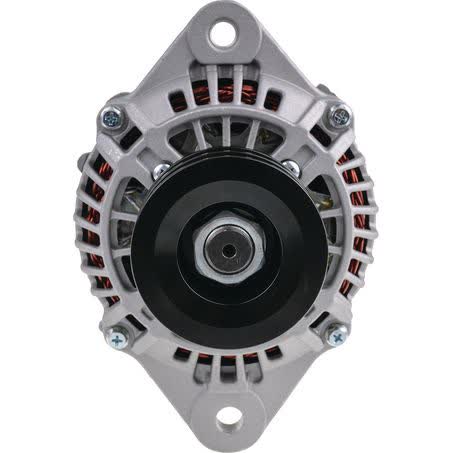

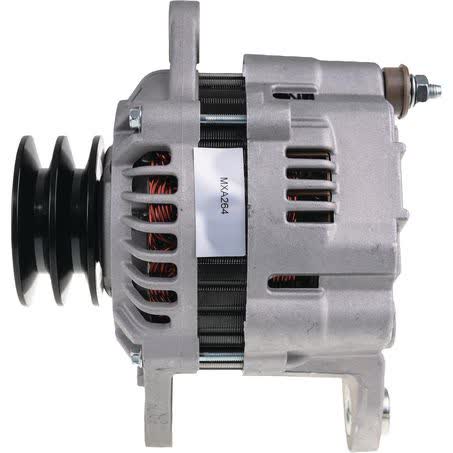

OEX Alternator 24V 35A Mitsubishi Style MXA264

The OEX MXA264 is a new 24V alternator with a 35A power rating and Mitsubishi style configuration. It is listed with an internal regulator, AA pulley section, and twin leg alternator mount, which are the key details to compare before ordering.

Physical measurements provided for this unit include 82mm inside mounting legs, 175mm mount centre to centre, a 12mm pivot hole diameter, a 10mm adjusting hole diameter, a 20mm shaft dimension, and a 79mm pulley outside diameter. Those dimensions matter when matching the alternator to the vehicle or equipment already fitted.

This part is supplied as an OEX alternator under part number MXA264. It is marked as suitable for Mitsubishi applications, and the supplied fitment data also references a range of industrial and commercial applications across several makes. Because alternators can look similar but differ in mounting and pulley details, the part number and measurements should always be checked first.

Key Features

• 24V alternator with 35A output
• Mitsubishi style unit
• Internal regulator
• Twin leg alternator mount
• New unit
• AA pulley section

Specifications

• Brand: OEX
• Part number: MXA264
• Type: Alternator
• Voltage: 24V
• Power rating: 35A
• Regulator type: Internal
• Alternator mount: Twin leg
• Inside mounting legs: 82mm

Fitment information provided

• Suits unit make: Mitsubishi
• Applications listed include Mitsubishi Fuso, Mitsubishi Canter, Mitsubishi Aero Midi, Caterpillar E70, Caterpillar forklift, Isuzu C/E Series, Isuzu F, Isuzu Forward F, Isuzu Journey, Isuzu L Series, Kato HD1250V-II, Kato HD400V-II, Kato HD450V-II, Kato HD512E, Kato HD512III, Kato HD512R, Kato HD513MRIII, Kobelco K912/A, Kobelco K916, Mazda Titan, New Holland E160, Sumitomo SH300, Sumitomo SH300-2, and UD Nissan Diesel C Series.
• The supplied fitment preview includes year references for several of those applications, including Mitsubishi Fuso and Mitsubishi Canter entries, but the exact vehicle match still needs to be confirmed against the part number and mounting measurements.
• Examples of year references in the supplied data include CATERPILLAR E70 1995, CATERPILLAR FORKLIFT 1998, FE2) 2005 to 2010, FE4) 1994 to 2002, FE6) 1994 to 2005, FE8) 2002 and 2005 to 2008, Isuzu F 1994 to 2003, K27 FH-Series 1998 to 2006, Kato HD1250V-II 1995 to 1998, Kato HD400V-II 1994, Kato HD450V-II 1995, Kato HD512E 2000 to 2001, Mazda Titan 1994 to 1995, New Holland E160 2009, Sumitomo SH300 1999, Sumitomo SH300-2 2000, and UD Nissan Diesel C Series 1995.

Application and Buying Notes

When checking whether MXA264 is the right alternator, start with the 24V electrical system and the 35A output. Those two figures need to match the vehicle or machine’s charging setup, and they should be confirmed alongside the internal regulator type before ordering.

Mounting details are just as important as output. This alternator is a twin leg design with 82mm inside mounting legs, 175mm mount centre to centre, a 12mm pivot hole, and a 10mm adjusting hole. If any of those measurements differ from the unit being replaced, the alternator may not line up correctly even if the body shape looks close.

The pulley and shaft details also need attention. The listed pulley outside diameter is 79mm, the pulley section is AA, and the shaft dimension is 20mm. These are practical comparison points when you are replacing a Mitsubishi style alternator, especially where the old unit has been changed previously or the application has had more than one charging setup.

The weight is listed at 6.36kg, and the unit is new rather than remanufactured. If you are comparing against an existing alternator, use the part number MXA264 together with the measurements and application references to reduce the risk of ordering the wrong unit.

The fitment data supplied includes a wide range of Mitsubishi, Isuzu, Caterpillar, Kato, Kobelco, Mazda, New Holland, Sumitomo, and UD Nissan Diesel applications. That breadth means the correct check is not the badge alone, but the exact mounting and electrical details on the vehicle or machine in front of you.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXA264 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 82mm, Pivot Hole Diameter 12, Pulley Outside Diameter 79mm, Regulator Type Internal, Voltage 24, Mount Cnt to Cnt 175mm, Shaft Dimension 20.

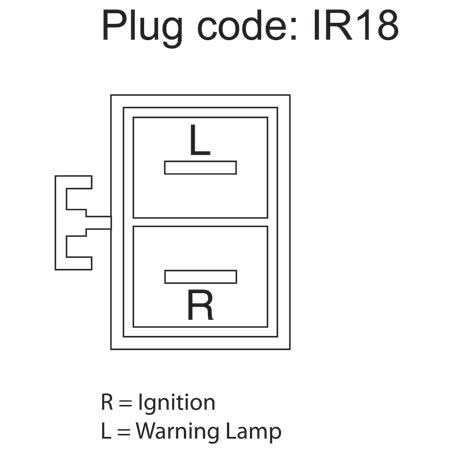

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. MXA264, Brand OEX, Description OEX Alternator 24V 35A Mitsubishi Style, Adjusting Hole Diameter 10, Pin Code IR18, Power Rating (Amp) 35, Pulley Section AA, Suits Unit Make Mitsubishi.

OEX Alternator 24V 35A Mitsubishi Style. Part number MXA264 should be checked first. Listed voltage is 24. Listed output rating is 35. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is AA. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

Compatibility note: Confirm compatibility by matching part number MXA264, 24V system requirements, 35A output, internal regulator type, twin leg mounting, and the listed mounting and pulley measurements against the existing alternator and application details before purchase.

FAQ

Is this alternator new or remanufactured?

This OEX alternator is listed as new.

What is the voltage and output rating?

It is a 24V alternator with a 35A power rating.

What type of regulator does it have?

The regulator type is internal.

What mounting style does it use?

It is listed as a twin leg alternator mount with 82mm inside mounting legs and 175mm mount centre to centre.

What pulley details are supplied?

The pulley outside diameter is 79mm and the pulley section is AA.

What warranty is listed?

The listed warranty is 3yr Passenger and 1yr Commercial.
