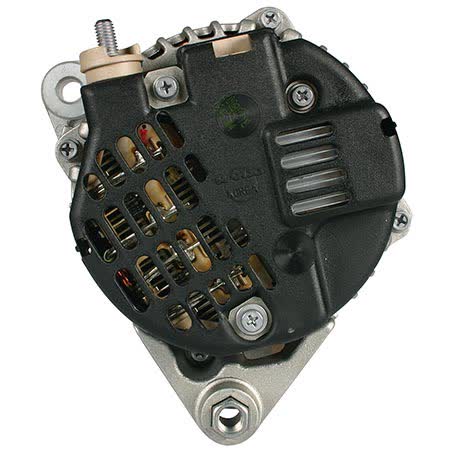

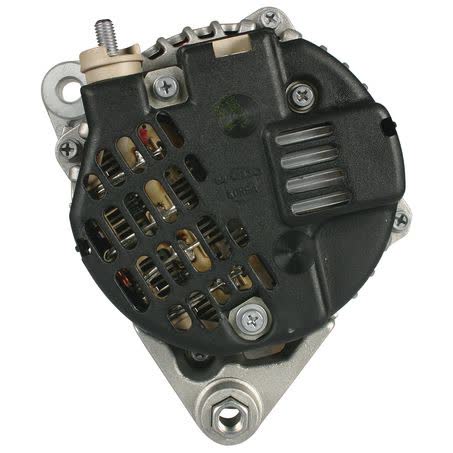

OEX Alternator 12V 110A Mitsubishi Style MXA314

The OEX Alternator MXA314 is a 12V, 110A unit in Mitsubishi style, supplied as a new alternator for rotating electrical applications. It is listed with a twin leg mount, internal regulator, and a 6 groove pulley, so the mounting pattern and pulley style should be checked carefully against the original unit before ordering.

This alternator is specified with an inside mounting leg measurement of 61mm, a mount centre to centre of 153mm, and a pivot hole diameter of 10 / M10 x 1.25. Those dimensions matter when matching brackets, brackets spacing, and hardware, especially where the original alternator uses a twin leg arrangement.

The unit is described as suited to Mando applications and carries part number MXA314. If you are replacing an existing alternator, the safest approach is to compare the part number, mounting points, pulley section, and voltage rating with the unit already fitted to the vehicle or removed from the vehicle.

Key Features

• 12V alternator with 110A output
• Mitsubishi style design
• New unit, not remanufactured
• Internal regulator
• Twin leg alternator mount
• 6 groove pulley section

Specifications

• Part No.: MXA314
• Voltage: 12V
• Power Rating: 110A
• Type: Alternator
• New / Reman.: New
• Regulator Type: Internal
• Alternator Mount: Twin Leg
• Inside Mounting Legs: 61mm

Fitment guidance

• KIA Carnival
• KIA Carnival / Grand Carnival
• KIA Carnival / Grand Carnival 1999
• KIA Carnival / Grand Carnival 2000
• KIA Carnival / Grand Carnival 2001
• KIA Carnival / Grand Carnival 2002
• KIA Carnival / Grand Carnival 2006
• KIA Carnival / Grand Carnival 2007

Application and Buying Notes

Check the part number MXA314 first, then compare the mounting layout, 61mm inside mounting legs, and 153mm mount centre to centre against the alternator being replaced. The alternator is a twin leg design with a 10 / M10 x 1.25 pivot hole, so bracket spacing and bolt size need to line up before installation.

The pulley details are equally important. This unit has a 54mm outside diameter pulley with a 6 groove section, so it needs to match the belt system already on the vehicle. A mismatch in groove count or pulley size can prevent proper belt alignment even when the alternator otherwise looks similar.

Because this is a 12V, 110A alternator with an internal regulator, it should be matched to the charging system requirements of the vehicle and the original unit. The Mando application note and the Mitsubishi style description are useful identifiers, but they should be confirmed against the existing alternator rather than used on their own as a fitment shortcut.

The listed weight is 6.05kg, which can help when comparing replacement units and identifying whether the assembly being removed is the same style. For commercial use, the warranty is listed as 1 year; for passenger use, it is 3 years. Keep the proof of purchase and confirm the warranty terms at the time of sale.

If the vehicle has had any prior charging system changes, do not rely on appearance alone. Compare the electrical rating, regulator type, pulley section, and mounting measurements before purchasing. That is the most reliable way to avoid a wrong-part situation with alternators of similar Mitsubishi style.

When in doubt, remove the old alternator and compare all visible identifiers: MXA314, twin leg mounting, 110A output, 12V rating, and the 6 groove pulley. Those details are the most practical checkpoints for confirming whether this OEX unit is the correct replacement.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXA314 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 61mm, Pivot Hole Diameter 10 / M10 x 1.25, Pulley Outside Diameter 54mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 153mm, Weight 6.05kg.

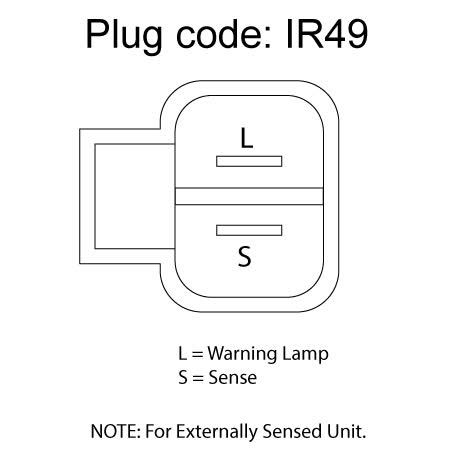

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. MXA314, Brand OEX, Description OEX Alternator 12V 110A Mitsubishi Style, Adjusting Hole Diameter 10, Pin Code IR49, Power Rating (Amp) 110, Pulley Section 6 Groove, Suits Unit Make Mando, Alternator Mount Twin Leg.

OEX Alternator 12V 110A Mitsubishi Style. Part number MXA314 should be checked first. Listed voltage is 12. Listed output rating is 110. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number MXA314, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 110 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm fitment with part number MXA314 and the existing alternator’s mounting, pulley, and electrical details before ordering. Vehicle listings are provided as a guide only, and the final match should be verified against the unit already fitted.

FAQ

What is the part number for this alternator?

The part number listed is MXA314.

What voltage and output does this alternator have?

It is a 12V alternator with a 110A power rating.

Is this a new or remanufactured unit?

It is listed as new.

What type of regulator does it use?

It has an internal regulator.

What pulley details should I check before ordering?

Check the 54mm pulley outside diameter and the 6 groove pulley section to make sure they match the existing setup.

What warranty is listed for this alternator?

The warranty is listed as 3 years for passenger use and 1 year for commercial use.
