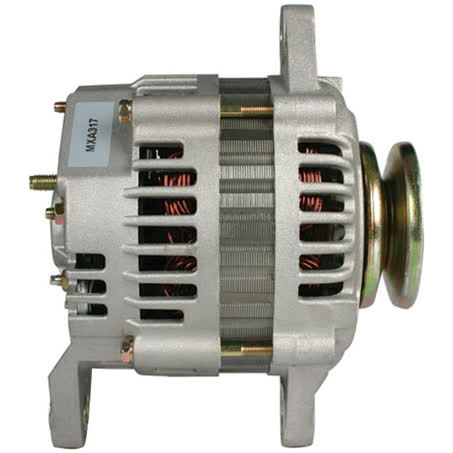

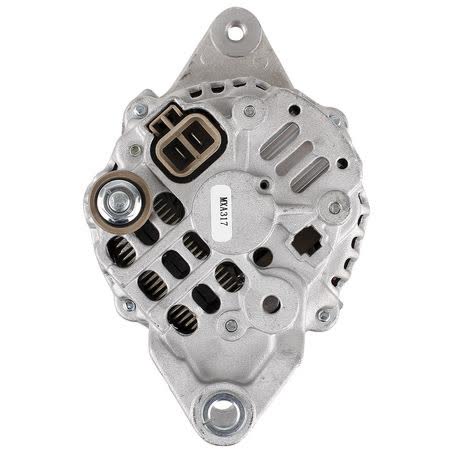

OEX Alternator 12V 35A Mitsubishi Style MXA317

The OEX Alternator MXA317 is a new 12V, 35A rotating electrical unit built in Mitsubishi style with a twin leg alternator mount. It is listed with an internal regulator, a 67mm outside diameter pulley, and a Type A pulley section, so the mounting and pulley details can be checked against the original unit before purchase.

Key physical measurements include 80mm inside mounting legs, 156mm mount centre-to-centre, an 8mm pivot hole diameter, and an M8x1.25 adjusting hole diameter. At 3.6kg, this alternator is supplied as a single each unit and carries part number MXA317.

This alternator is specified as suitable for Mitsubishi unit applications, and the fitment data also references a range of industrial forklift applications across Mitsubishi Industrial, Nissan Industrial, TCM, Komatsu, and Barko. Because those groups include multiple models and year ranges, the part number and mounting measurements should be matched carefully to the existing alternator rather than relying on vehicle make alone.

Key Features

• OEX alternator, part number MXA317
• 12V, 35A output
• New unit, not remanufactured
• Internal regulator
• Twin leg alternator mount
• 67mm pulley outside diameter

Specifications

• Brand: OEX
• Product type: Alternator
• Description: OEX Alternator 12V 35A Mitsubishi Style
• Part No.: MXA317
• Voltage: 12V
• Power rating: 35A
• Regulator type: Internal
• Alternator mount: Twin Leg

Listed fitment references

• Barko various
• Komatsu FG07
• Komatsu FG09
• Komatsu FG10-20
• Komatsu FG15-20
• Komatsu FG15HT/SHT
• Komatsu FG18-20
• Komatsu FG18HT/SHT

Application and Buying Notes

Before ordering, compare the alternator mounting pattern on the vehicle with the listed dimensions: 80mm inside mounting legs, 156mm mount centre-to-centre, an 8mm pivot hole, and an M8x1.25 adjusting hole. Those measurements are the most practical checks for confirming whether the MXA317 will physically suit the bracket arrangement on the existing unit.

The pulley details matter as much as the body fit. This unit is listed with a 67mm outside diameter pulley and an A section pulley profile, so the belt type and pulley size on the current alternator should be checked side by side before fitting. A mismatch there can stop the unit from being suitable even when the housing mount looks close.

This alternator is a 12V, 35A unit with an internal regulator, so it should only be compared with applications that use the same electrical setup. The product is identified as Mitsubishi style and suitable for Mitsubishi unit make, but the fitment references also span several industrial forklift groups. That means the safest approach is to confirm against the part number MXA317 and the physical mounting measurements, not just the make or model name.

If you are replacing an existing alternator, it is worth checking the old unit for its part number, mounting leg spacing, pulley section, and regulator style before ordering. These details are the best indicators here because the fitment list includes multiple industrial applications and year ranges, including Mitsubishi Industrial, Nissan Industrial, TCM, Komatsu, and Barko references.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXA317 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 80mm, Pivot Hole Diameter 8, Pulley Outside Diameter 67mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 156mm, Weight 3.6kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. MXA317, Brand OEX, Description OEX Alternator 12V 35A Mitsubishi Style, Adjusting Hole Diameter M8x1.25, Pin Code IR49, Power Rating (Amp) 35, Pulley Section A, Suits Unit Make Mitsubishi, Alternator Mount Twin Leg.

OEX Alternator 12V 35A Mitsubishi Style. Part number MXA317 should be checked first. Listed voltage is 12. Listed output rating is 35. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is A. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number MXA317, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 35 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include BARKO VARIOUS, KOMATSU FG07, KOMATSU FG09, KOMATSU FG10-20, KOMATSU FG10-20 2004, MITSUBISHI INDUSTRIAL FORKLIFTS. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm compatibility by matching part number MXA317, the 12V 35A specification, internal regulator type, twin leg mount, and the listed pulley and mounting measurements against the vehicle’s existing alternator.

FAQ

What is the part number for this alternator?

The part number is MXA317.

Is this alternator new or remanufactured?

It is listed as new.

What voltage and output does it have?

It is a 12V alternator with a 35A power rating.

Does it use an internal regulator?

Yes. The regulator type is listed as internal.

What mounting and pulley details are listed?

The alternator has a twin leg mount, 80mm inside mounting legs, 156mm mount centre-to-centre, an 8mm pivot hole, an M8x1.25 adjusting hole, a 67mm pulley outside diameter, and an A section pulley profile.

What warranty is listed?

The listed warranty is 3 years for passenger use and 1 year for commercial use.
