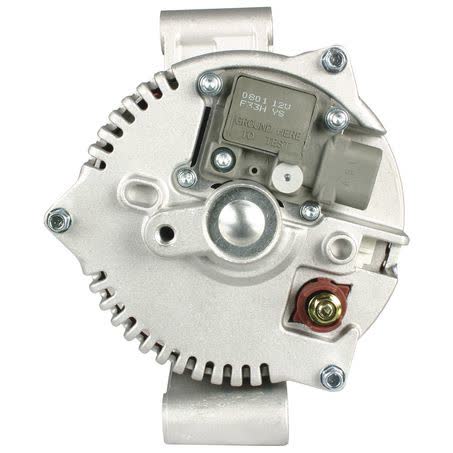

OEX Alternator 12V 130A Autolite Style AXA962

The OEX Alternator AXA962 is a new 12V, 130A unit built in an Autolite style with a pad mount and internal regulator. It is supplied as an each item and is intended for buyers who need to match the electrical and mounting details carefully, including the 6 groove pulley, 175mm mount centre to centre, and 74mm inside mounting legs.

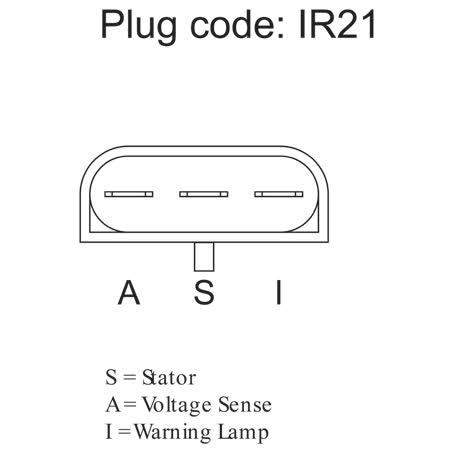

This alternator carries a part number of AXA962 and a pin code of IR21. The main physical checks before ordering are the 10mm adjusting hole diameter, 10 / 12mm pivot hole diameter, 55mm mount leg thickness, and 64mm pulley outside diameter. Those dimensions matter as much as the vehicle application when replacing a charging unit.

OEX lists this unit as a new rotating electrical part with a weight of 7.12kg and a warranty of 3yr Passenger / 1yr Commercial. A stator-to-regulator connection may be required if the warning lamp does not operate after installation, so wiring and lamp function should be checked during fitment and final testing.

Key Features

• 12V alternator with 130A output
• Autolite style, pad mount design
• Internal regulator
• 6 groove pulley
• New unit, supplied each
• Part number AXA962

Specifications

• Voltage: 12V
• Power rating: 130A
• Unit of measure: Each
• Brand: OEX
• Suits unit make: Autolite
• Alternator mount: Pad
• Regulator type: Internal
• Pulley section: 6 groove

Fitment guidance

• Fitment information is listed for Ford Courier, Ford Explorer, Ford F-250, Ford F-350, Mazda, and Mazda B-Series applications.
• Sample application data includes Ford Courier 2005 and 2006, Ford Explorer 1996 to 2003, and Mazda B-Series 2000 to 2006.
• Use the part number AXA962 together with the mounting and pulley dimensions to confirm the correct replacement before purchase.

Application and Buying Notes

When replacing an alternator, the safest match is not just the vehicle name but the combination of part number, mounting style, pulley type, and regulator arrangement. For AXA962, the key checks are 12V, 130A, Autolite style, pad mount, internal regulator, and 6 groove pulley, along with the 175mm mount centre to centre and 74mm inside mounting legs.

If you are comparing units, pay close attention to the pulley outside diameter of 64mm, the 10mm adjusting hole, the 10 / 12mm pivot hole, and the 55mm mount leg thickness. These measurements help confirm whether the alternator will physically align with the existing brackets and belt setup on the vehicle.

This alternator is new rather than remanufactured, and it is identified as OEX part number AXA962 with pin code IR21. The listed note about a possible connection between the stator (S) terminal and the regulator (S) terminal is important if the warning lamp does not work after installation, so wiring should be checked during testing rather than assumed correct.

The warranty listed is 3yr Passenger / 1yr Commercial, which is useful to note when the vehicle is used in different duty cycles. Weight is also relevant here at 7.12kg, especially when comparing against an existing unit or assessing handling and bracket condition during fitment.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number AXA962 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 74mm, Pin Code IR21, Power Rating (Amp) 130, Pulley Section 6 Groove, Suits Unit Make Autolite, Note A connection between the stator (S) terminal and the (S) terminal of the regulator may be required if the warning lamp does not work on installation., Mount Cnt to Cnt 175mm.

Additional published details for cross-checking include Weight 7.12kg, Product Group 1 ROTATING ELECTRICAL, Part No. AXA962, Brand OEX, Description OEX Alternator 12V 130A Autolite Style, Adjusting Hole Diameter 10, Mount Leg Thickness 55mm, Pivot Hole Diameter 10 / 12, Pulley Outside Diameter 64mm, Regulator Type Internal.

OEX Alternator 12V 130A Autolite Style. Part number AXA962 should be checked first. Listed voltage is 12. Listed output rating is 130. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Pad. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number AXA962, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 130 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD COURIER, FORD COURIER 2005, FORD COURIER 2006, FORD EXPLORER, MAZDA B-SERIES, MAZDA B-SERIES 2000. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment using AXA962, the Autolite style pad-mount configuration, and the recorded dimensions before ordering. Vehicle listings are provided as a guide only, and the final check should always be the part number plus the alternator mounting, pulley, and electrical details on the vehicle.

FAQ

What is the voltage and output of this alternator?

It is a 12V alternator with a 130A power rating.

Is this alternator new or remanufactured?

This unit is listed as new.

What type of regulator does it use?

It has an internal regulator.

What pulley setup does it have?

It uses a 6 groove pulley with a 64mm outside diameter.

What part number should I use to confirm the replacement?

The listed part number is AXA962.

What should I check if the warning lamp does not work after installation?

A connection between the stator (S) terminal and the regulator (S) terminal may be required if the warning lamp does not work on installation.
