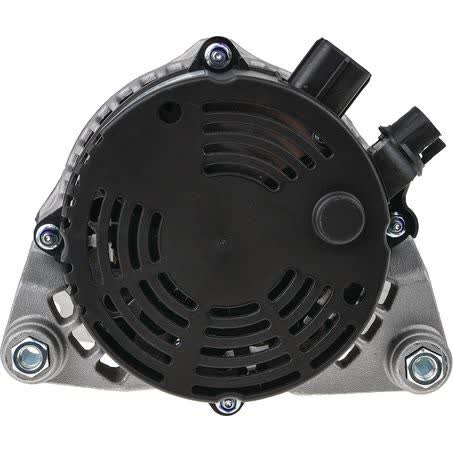

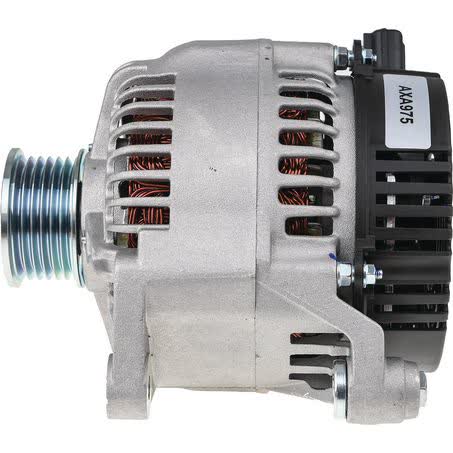

OEX Alternator 12V 90A Autolite Style AXA975

The OEX Alternator AXA975 is a new 12V, 90A alternator in Autolite style, supplied as a twin leg mount unit for rotating electrical applications. Key mounting details include 65mm inside mounting legs, 140mm mount centre-to-centre, M8x1.25 / 8 pivot and adjusting hole diameters, and a 48mm outside pulley diameter with a 6 groove pulley section.

This unit is identified as Part No. AXA975 and is listed under the OEX brand. It carries a 3 year passenger / 1 year commercial warranty, and the product weight is 5.38kg. Those details matter when comparing the replacement unit against the original alternator, especially where mounting style, pulley format, and electrical output must match the vehicle application.

OEX states that its products are sourced from market leading Original Equipment Manufacturers and aftermarket suppliers, with factories that are ISO9001 certified to support engineering, testing, and quality control procedures. For buyers comparing alternators, the practical checks are the alternator mount style, voltage, amperage, pulley configuration, and the specific part number AXA975.

Key Features

• 12V alternator with 90A output
• Autolite style replacement
• Twin leg alternator mount
• New unit, supplied each
• Internal regulator
• 6 groove pulley

Specifications

• Brand: OEX
• Type: Alternator
• Voltage: 12V
• Power rating: 90A
• Unit of measure: Each
• New / reman.: New
• Regulator type: Internal
• Alternator mount: Twin leg

Fitment guidance

• Listed for Autolite unit applications
• Fitment data provided includes CITROEN XSARA applications
• Fitment data provided includes FORD FOCUS applications

Application and Buying Notes

Before ordering, check the alternator on the vehicle against the key identifiers for this unit: Part No. AXA975, Autolite style, 12V, 90A, and twin leg mounting. Mounting dimensions are specific on this part, including 65mm inside mounting legs and 140mm centre-to-centre between mounts, so a visual match alone is not enough.

Pulley details are also important. This alternator has a 48mm outside diameter pulley with a 6 groove section, so the belt system on the vehicle needs to match that setup. If the pulley profile, groove count, or diameter differs from the original, the alternator may not be a suitable replacement even where the electrical rating is close.

The internal regulator type should be checked as part of the replacement process. Electrical output is rated at 90A at 12V, which is the main specification to compare with the original unit. The alternator weighs 5.38kg, which can also help when confirming that the replacement part is in the expected range for the application.

Fitment data is listed for CITROEN XSARA and FORD FOCUS applications, but application years and engine details should still be checked against the vehicle and the removed alternator. In alternator replacement work, the safest approach is to confirm the part number, mounting arrangement, pulley type, and regulator style before purchase or installation.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number AXA975 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 65mm, Pivot Hole Diameter M8x1.25 / 8, Pulley Outside Diameter 48mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 140mm, Weight 5.38kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. AXA975, Brand OEX, Description OEX Alternator 12V 90A Autolite Style, Adjusting Hole Diameter M8x1.25 / 8, Pin Code IR89, Power Rating (Amp) 90, Pulley Section 6 Groove, Suits Unit Make Autolite, Alternator Mount Twin Leg.

OEX Alternator 12V 90A Autolite Style. Part number AXA975 should be checked first. Listed voltage is 12. Listed output rating is 90. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number AXA975, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 90 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include CITROEN XSARA, CITROEN XSARA 1998, CITROEN XSARA 1999, CITROEN XSARA 2000, FORD FOCUS, FORD FOCUS 2002. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm compatibility by matching Part No. AXA975, the Autolite style application, twin leg mount, 12V 90A output, and the 6 groove 48mm pulley against the vehicle and the removed alternator.

FAQ

What is the part number for this alternator?

The part number is AXA975.

Is this alternator new or remanufactured?

It is listed as new.

What is the electrical output?

It is a 12V alternator rated at 90A.

What type of regulator does it have?

It has an internal regulator.

What pulley setup does it use?

It has a 48mm outside diameter pulley with a 6 groove section.

What fitment should be checked before buying?

Check the vehicle application against the listed Autolite style, twin leg mount, 12V 90A specification, and the mounting and pulley dimensions. Fitment data is provided for CITROEN XSARA and FORD FOCUS applications, but the removed alternator and vehicle details should still be matched before ordering.
