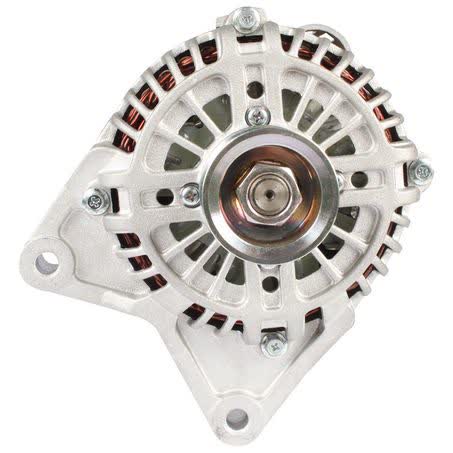

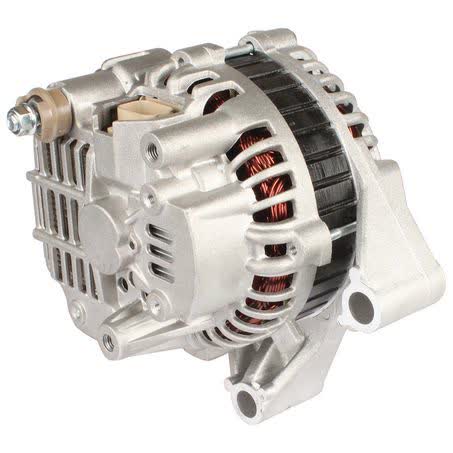

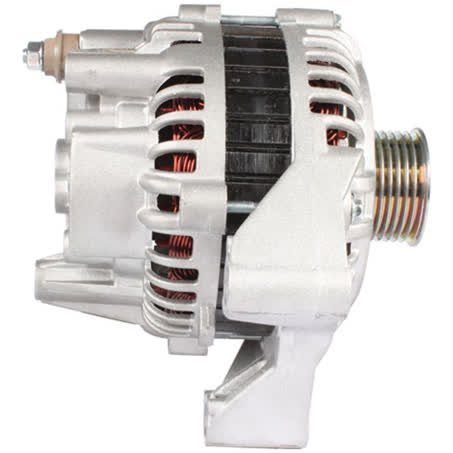

OEX Alternator 12V 110A Mitsubishi Style MXA288

The OEX MXA288 is a new 12V alternator rated at 110 amps, built in a Mitsubishi style configuration and supplied as each unit. It uses a single leg mount, internal regulator, and a 6 groove pulley with a 50mm outside diameter, so the mounting and drive details need to line up with the vehicle application before purchase.

This alternator is listed under part number MXA288 and suits Mitsubishi units. A key check on this model is the original plug arrangement: if the original plug has only a single wire, an HXK-36 adaptor plug is required. That wiring detail matters as much as the physical mounting dimensions when confirming a match.

OEX products are sourced from market leading original equipment manufacturers and aftermarket suppliers, and the brand notes ISO9001 certified manufacturing sources with engineering, testing and quality control procedures in place. The unit carries a 3 year passenger / 1 year commercial warranty, which gives useful context for workshop and retail buyers comparing replacement options.

Key Features

• 12V alternator rated at 110A
• New unit, supplied each
• Mitsubishi style application
• Single leg alternator mount
• Internal regulator
• 6 groove pulley, 50mm outside diameter

Specifications

• Voltage: 12V
• Power rating: 110 amp
• Part number: MXA288
• Brand: OEX
• Type: Alternator
• Regulator type: Internal
• Alternator mount: Single leg
• Pulley section: 6 groove

Fitment guidance

• FORD: FAIRLANE, FAIRLANE 1999, FAIRLANE 2000, FAIRLANE 2001, FAIRLANE 2002, plus other listed applications
• FPV: FALCON, FALCON 2005, FALCON 2006, FALCON 2007, FALCON 2008

Application and Buying Notes

Before ordering, confirm the alternator mounting points and drive setup against the supplied measurements: single leg mount, 45mm mount leg thickness, 9mm pivot hole diameter, 9mm adjusting hole diameter, and 110mm mount centre to centre. These dimensions are the practical checks that help separate a correct replacement from one that only looks similar.

Also confirm the pulley and electrical details. This unit has a 6 groove pulley with a 50mm outside diameter, an internal regulator, 12V charging system voltage, and a 110 amp output rating. If the vehicle’s original plug has only a single wire, the HXK-36 adaptor plug is required, so the connector style must be checked before fitting.

The listing identifies the alternator as Mitsubishi style and notes it suits Mitsubishi units, but the safest approach is always to match part number MXA288 with the vehicle’s original unit and application details. If the old alternator has a different mount style, pulley arrangement, or plug layout, it should be treated as a separate application even if the overall shape appears close.

For commercial use, the warranty differs from passenger use: 3 years for passenger applications and 1 year for commercial applications. That distinction is worth confirming at the point of sale, particularly where the vehicle use is mixed or the alternator is being supplied for a fleet or trade repair.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXA288 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Leg Thickness 45mm, Pivot Hole Diameter 9, Pulley Outside Diameter 50mm, Regulator Type Internal, Voltage 12, Alternator Mount Single Leg, New / Reman. New.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. MXA288, Brand OEX, Description OEX Alternator 12V 110A Mitsubishi Style - REFER TO NOTE, Adjusting Hole Diameter 9, Pin Code IR49, Power Rating (Amp) 110, Pulley Section 6 Groove, Suits Unit Make Mitsubishi.

OEX Alternator 12V 110A Mitsubishi Style - REFER TO NOTE. Part number MXA288 should be checked first. Listed voltage is 12. Listed output rating is 110. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Single Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number MXA288, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 110 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD FAIRLANE, FORD FAIRLANE 1999, FORD FAIRLANE 2000, FORD FAIRLANE 2001, FPV FALCON, FPV FALCON 2005. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by matching part number MXA288, the Mitsubishi style application, the single leg mount dimensions, the 6 groove 50mm pulley, and the original plug arrangement. If the original plug has only a single wire, HXK-36 is required.

FAQ

What vehicle does this alternator suit?

The listing identifies it as a Mitsubishi style alternator and states it suits Mitsubishi units. Exact vehicle fitment still needs to be checked against part number MXA288, mount dimensions, pulley style, and plug arrangement.

Is this alternator new or reconditioned?

It is a new alternator, supplied each.

What is the output rating?

It is rated at 110 amps and is a 12V alternator.

What regulator type does it use?

This alternator has an internal regulator.

Do I need an adaptor plug?

If the original plug has only a single wire, the HXK-36 adaptor plug is required.

What warranty is supplied?

The warranty is 3 years for passenger applications and 1 year for commercial applications.
