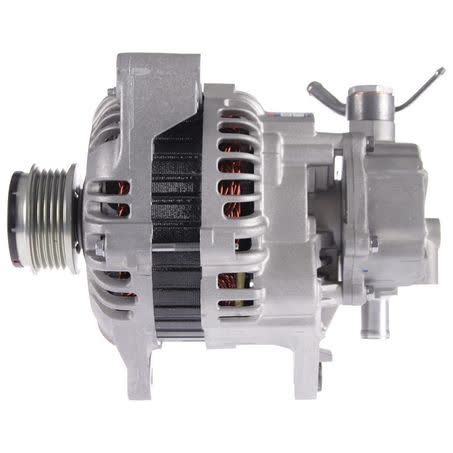

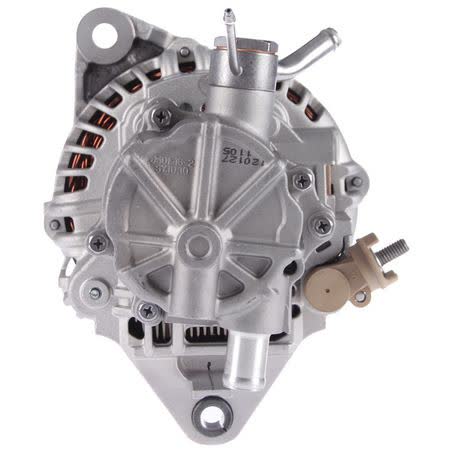

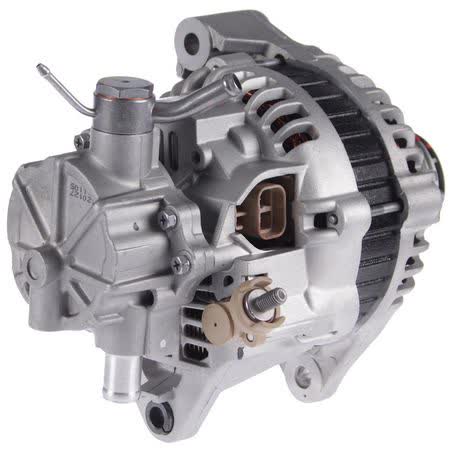

OEX Alternator 12V 110A Hitachi Style HXA094

The OEX HXA094 is a new 12V alternator rated at 110 amps, supplied in Hitachi style and listed with a twin leg alternator mount. It is built for applications that match the stated mounting dimensions, including 80mm inside mounting legs, 172mm mount centre to centre, 10mm pivot hole diameter and 10mm adjusting hole diameter.

This unit uses an internal regulator and a 5 groove pulley with a 60mm outside diameter. The note supplied with the part also identifies a 60cc vacuum pump and an adaptor to suit HXK-32 and HXK-24, so those details should be checked carefully against the vehicle and the alternator being replaced before ordering.

As a new OEX rotating electrical unit, it is backed by a 3yr passenger / 1yr commercial warranty. OEX also states that its products are sourced from original equipment and aftermarket suppliers, with ISO9001 certified factories supporting testing and quality control procedures.

Key Features

• New 12V alternator
• 110 amp power rating
• Hitachi style unit
• Internal regulator
• Twin leg alternator mount
• 5 groove pulley

Specifications

• Voltage: 12V
• Power rating: 110A
• New / remanufactured: New
• Regulator type: Internal
• Alternator mount: Twin leg
• Inside mounting legs: 80mm
• Mount centre to centre: 172mm
• Pivot hole diameter: 10mm

Fitment details

• Verified vehicle applications provided for Hyundai Terracan, including 2005, 2006 and 2007 models.
• Verified vehicle applications provided for Kia Carnival / Grand Carnival, including 2006 through 2011 models.
• Verified vehicle applications provided for Kia K2700, including 2002, 2003, 2004 and 2005 models.
• Kia K2900 is listed in the supplied fitment data, but no year detail was provided in the excerpt available here.

Application and Buying Notes

Before ordering, compare the part number HXA094, the Hitachi style casing, and the mounting measurements against the unit already fitted to the vehicle. The key checks here are the 12V system, 110A output, 80mm inside mounting legs, 172mm mount centre to centre, and the 10mm pivot and adjusting holes.

The pulley details matter as much as the electrical rating. This alternator is listed with a 5 groove pulley and a 60mm outside diameter, so belt alignment and pulley match should be confirmed against the original unit. If the vehicle uses a different pulley section or diameter, the replacement may not be suitable even if the alternator appears similar.

The note about a 60cc vacuum pump and adaptor compatibility to HXK-32 and HXK-24 should be treated as an important check point rather than an assumption. Vacuum pump arrangement and adaptor requirements vary by application, so the existing alternator and associated hardware should be inspected before purchase.

The stated warranty is 3 years for passenger use and 1 year for commercial use. That warranty detail is useful for setting expectations, but it does not replace the need to confirm the alternator mount, regulator type, and fitment application against the vehicle in question.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number HXA094 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 80mm, Pivot Hole Diameter 10, Pulley Outside Diameter 60mm, Regulator Type Internal, Voltage 12, Alternator Mount Twin Leg, New / Reman. New.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. HXA094, Brand OEX, Description OEX Alternator 12V 110A Hitachi Style, Adjusting Hole Diameter 10, Pin Code IR49, Power Rating (Amp) 110, Pulley Section 5 Groove, Suits Unit Make Hitachi.

OEX Alternator 12V 110A Hitachi Style. Part number HXA094 should be checked first. Listed voltage is 12. Listed output rating is 110. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 5 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number HXA094, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 110 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HYUNDAI TERRACAN, HYUNDAI TERRACAN 2005, HYUNDAI TERRACAN 2006, HYUNDAI TERRACAN 2007, KIA CARNIVAL / GRAND CARNIVAL, KIA CARNIVAL / GRAND CARNIVAL 2006. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment by matching part number HXA094, the Hitachi style specification, and the exact mounting and pulley dimensions to the original alternator before purchase.

FAQ

What is the part number for this alternator?

The listed part number is HXA094.

Is this alternator new or remanufactured?

It is listed as new.

What voltage and output does it have?

It is a 12V alternator with a 110A power rating.

What type of regulator does it use?

It uses an internal regulator.

What pulley details are listed?

It has a 5 groove pulley with a 60mm outside diameter.

Which vehicles are listed in the fitment data?

The supplied fitment data includes Hyundai Terracan, Kia Carnival / Grand Carnival, Kia K2700 and Kia K2900. The excerpt also shows year references for Hyundai Terracan 2005 to 2007, Kia Carnival / Grand Carnival 2006 to 2011, and Kia K2700 2002 to 2005.
