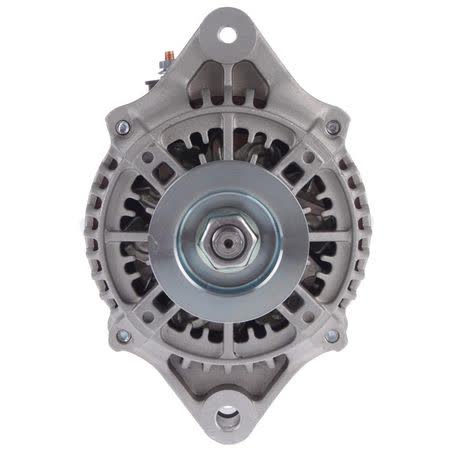

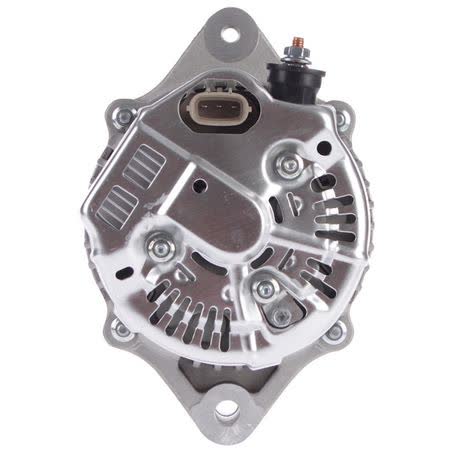

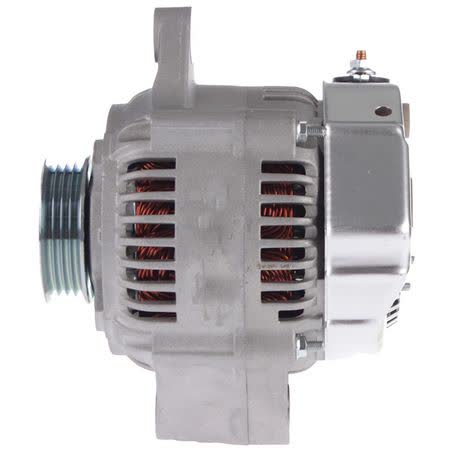

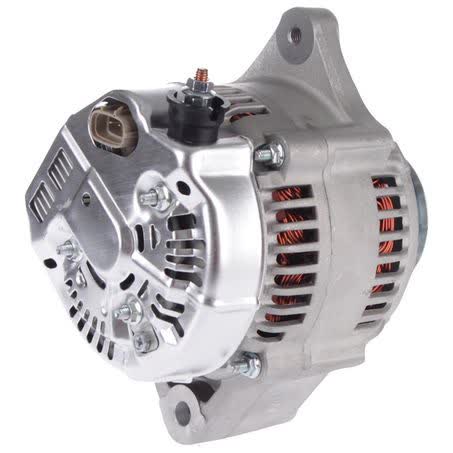

OEX Alternator 12V 95A Denso Style DXA579

The OEX Alternator DXA579 is a 12V, 95A unit designed in a Denso style layout for applications that suit a Denso-type alternator. It is a new alternator, sold each, with an internal regulator, a 4 groove pulley, and a single leg mount arrangement.

Key mounting and dimensional details matter on this unit: the mount leg thickness is 58mm, the pivot hole diameter is 10mm, the adjusting hole is M8x1.25, and the mount centre-to-centre measurement is 165mm. The pulley outside diameter is 60mm, which is useful to confirm against the original unit before purchase.

OEX lists this alternator under part number DXA579, with pin code IR75 and a weight of 5.76kg. It is backed by a 3 year passenger / 1 year commercial warranty, so it is important to match the application and mounting details carefully before ordering.

Key Features

• 12V, 95A alternator
• Denso style design
• Internal regulator
• 4 groove pulley
• Single leg mount
• New unit

Specifications

• Voltage: 12V
• Power rating: 95A
• Regulator type: Internal
• Pulley outside diameter: 60mm
• Pulley section: 4 groove
• Alternator mount: Single leg
• Mount leg thickness: 58mm
• Pivot hole diameter: 10mm

Fitment guidance

• Suits unit make: Denso
• Fitment data includes Mitsubishi applications such as Delica D5, Lancer and Outlander
• Fitment data includes Suzuki applications such as Grand Vitara, Grand Vitara (inc XL-7), SX4 and Vitara
• Fitment examples shown in the application data include Mitsubishi Delica D5 2007 and Mitsubishi Lancer model years from 2008 through 2016
• Fitment examples shown in the application data include Suzuki Grand Vitara (inc XL-7) model years from 1998 through 2005 and Suzuki Grand Vitara 2005 and 2006

Application and Buying Notes

Before ordering, compare the OEX part number DXA579 and the Denso-style application against the unit you are replacing. The critical checks on this alternator are the 12V system, 95A output, internal regulator, single leg mount, and the 4 groove pulley with 60mm outside diameter.

The mounting measurements are just as important as the electrical rating. Verify the 58mm mount leg thickness, 10mm pivot hole diameter, M8x1.25 adjusting hole, and 165mm mount centre-to-centre measurement against your existing alternator and bracket arrangement.

This alternator weighs 5.76kg and is listed as new, which can help when comparing against a removed original or remanufactured unit. Matching weight alone is not enough for fitment, but it can be a useful cross-check when identifying the correct replacement.

The application data supplied with this part points to selected Mitsubishi and Suzuki vehicles, including Delica D5, Lancer, Outlander, Grand Vitara, SX4 and Vitara variants. Because alternator fitment can vary by engine, bracket, pulley and charging system details, you should confirm the vehicle application against the part number and the physical unit before purchase.

Warranty cover is listed as 3 years for passenger use and 1 year for commercial use. If the vehicle is used commercially, it is worth confirming how the alternator will be used so the warranty period is understood before fitment starts.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number DXA579 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Leg Thickness 58mm, Pivot Hole Diameter 10, Pulley Outside Diameter 60mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 165mm, Weight 5.76kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. DXA579, Brand OEX, Description OEX Alternator 12V 95A Denso Style, Adjusting Hole Diameter M8x1.25, Pin Code IR75, Power Rating (Amp) 95, Pulley Section 4 Groove, Suits Unit Make Denso, Alternator Mount Single Leg.

OEX Alternator 12V 95A Denso Style. Part number DXA579 should be checked first. Listed voltage is 12. Listed output rating is 95. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Single Leg. Regulator type is Internal. Pulley configuration is 4 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number DXA579, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 95 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm compatibility using OEX part number DXA579, the Denso-style application, and the measured mounting and pulley details. Do not rely on vehicle name alone; check the 12V, 95A, internal regulator, single leg mount, 4 groove pulley, and the mounting dimensions against the existing unit before buying.

FAQ

What is the part number for this alternator?

The listed OEX part number is DXA579. The pin code is IR75.

Is this alternator new or remanufactured?

It is listed as new.

What are the main electrical specifications?

It is a 12V alternator with a 95A power rating and an internal regulator.

What pulley and mounting details should I check?

The pulley is 4 groove with a 60mm outside diameter. Mounting details include a single leg mount, 58mm mount leg thickness, 10mm pivot hole diameter, M8x1.25 adjusting hole, and 165mm mount centre-to-centre.

What vehicles are shown in the fitment data?

The fitment data includes selected Mitsubishi applications such as Delica D5, Lancer and Outlander, and selected Suzuki applications such as Grand Vitara, Grand Vitara (inc XL-7), SX4 and Vitara.

What warranty is listed?

The warranty is listed as 3 years for passenger use and 1 year for commercial use.
