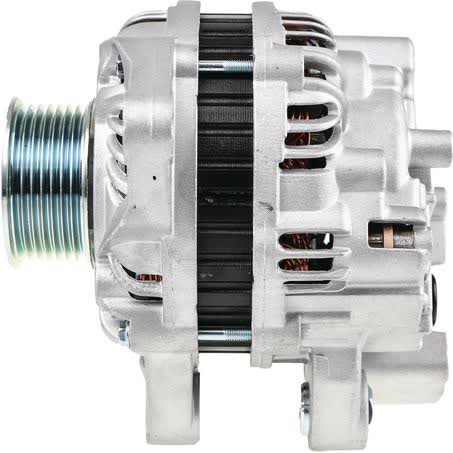

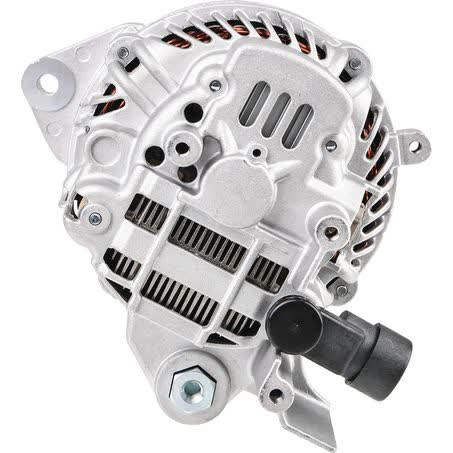

OEX Alternator 12V 80A Mitsubishi Style MXA2007

The OEX Alternator MXA2007 is a new 12V 80A unit in Mitsubishi style, supplied as a twin leg alternator with an internal regulator. Key mounting dimensions include 132mm centre-to-centre, 40mm inside mounting legs, an 8mm adjusting hole, and an M8 x 1.25 pivot hole, so it is important to compare the physical layout against the original unit before ordering.

This alternator uses a 7 groove pulley with a 60mm outside diameter and is listed with a 20mm mount leg thickness. The unit weighs 5.1kg and is sold as each, which is useful when checking replacement parts, bench handling, and whether the existing belt and mounting arrangement match the specification.

OEX lists this alternator under part number MXA2007 and describes it as a Mitsubishi style rotating electrical unit. It is backed by a 3 year passenger / 1 year commercial warranty, and the brand states its products are sourced from market leading OEM and aftermarket suppliers with ISO9001 certified factory controls.

Key Features

• New alternator, not remanufactured
• 12V, 80A output
• Internal regulator
• 7 groove pulley
• Mitsubishi style
• Twin leg mount

Specifications

• Brand: OEX
• Product type: Alternator
• Voltage: 12V
• Power rating: 80A
• New / Reman.: New
• Regulator type: Internal
• Pulley section: 7 groove
• Pulley outside diameter: 60mm

Fitment guidance

• HONDA: CIVIC, CIVIC 2005, CIVIC 2006, CIVIC 2007, CIVIC 2008, plus other listed applications

Application and Buying Notes

Before buying, compare the alternator part number MXA2007 with the unit currently fitted to the vehicle. The main physical checkpoints here are the Mitsubishi style twin leg mount, 132mm mount centre-to-centre, 40mm inside mounting legs, and the M8 x 1.25 pivot hole. If any of those differ, the alternator may not line up correctly even if the electrical rating looks similar.

The 12V 80A output is a useful reference when matching the charging system, but output alone does not confirm fitment. You also need to check the pulley arrangement, because this unit has a 7 groove pulley and a 60mm pulley outside diameter. Those details need to match the belt and drive setup already on the vehicle.

The internal regulator and IR43 pin code are also worth checking against the original alternator and wiring plug. Electrical connectors and regulator arrangement vary between applications, so the safest approach is to confirm the plug style, mounting pattern, pulley type, and part number together rather than relying on the description alone.

Fitment data supplied with this item includes Honda Civic applications in the broader dataset, but no detailed application list is provided here. Because of that, the part should be treated as a specification-matched replacement rather than a guaranteed fit without verification of the existing alternator details.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXA2007 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 40mm, Pin Code IR43, Power Rating (Amp) 80, Pulley Section 7 Groove, Suits Unit Make Mitsubishi, Alternator Mount Twin Leg, New / Reman. New.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. MXA2007, Brand OEX, Description OEX Alternator 12V 80A Mitsubishi Style, Adjusting Hole Diameter 8, Mount Leg Thickness 20mm, Pivot Hole Diameter M8 x 1.25, Pulley Outside Diameter 60mm, Regulator Type Internal.

OEX Alternator 12V 80A Mitsubishi Style. Part number MXA2007 should be checked first. Listed voltage is 12. Listed output rating is 80. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 7 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number MXA2007, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 80 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm fitment by matching part number MXA2007, the Mitsubishi style twin leg mount, the 12V 80A specification, pulley details, connector code IR43, and all mounting measurements against the original unit before purchase.

FAQ

Is this alternator new or remanufactured?

This unit is listed as new, not remanufactured. For this listing, part number MXA2007 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include HONDA CIVIC, HONDA CIVIC 2005, HONDA CIVIC 2006. These details should still be checked against the original unit before ordering.

What is the output rating?

The alternator is rated at 12V and 80A. For this listing, part number MXA2007 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include HONDA CIVIC, HONDA CIVIC 2005, HONDA CIVIC 2006. These details should still be checked against the original unit before ordering.

What part number should I use when checking fitment?

The listed part number is MXA2007. For this listing, part number MXA2007 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include HONDA CIVIC, HONDA CIVIC 2005, HONDA CIVIC 2006. These details should still be checked against the original unit before ordering.

What type of pulley does it use?

It has a 7 groove pulley with a 60mm outside diameter. For this listing, part number MXA2007 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include HONDA CIVIC, HONDA CIVIC 2005, HONDA CIVIC 2006. These details should still be checked against the original unit before ordering.

What regulator type is fitted?

This alternator uses an internal regulator. For this listing, part number MXA2007 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include HONDA CIVIC, HONDA CIVIC 2005, HONDA CIVIC 2006. These details should still be checked against the original unit before ordering.

Does the item include warranty cover?

Yes. The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number MXA2007 is the main reference point. Listed voltage is 12. Listed output rating is 80. Published fitment references include HONDA CIVIC, HONDA CIVIC 2005, HONDA CIVIC 2006. These details should still be checked against the original unit before ordering.
