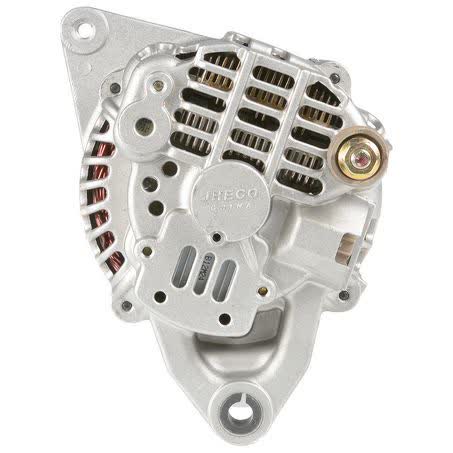

OEX Alternator 12V 90A Mitsubishi Style MXA2008

The OEX Alternator MXA2008 is a 12V, 90A unit built in Mitsubishi style for applications that suit a Mitsubishi alternator mount. It is a new rotating electrical component supplied as each, with a twin leg mount, internal regulator and a 4 groove pulley.

Key physical checks on this alternator include 66mm inside mounting legs, a 10mm pivot hole diameter, M8 x 1.25 adjusting hole diameter and 175mm mount centre-to-centre. The pulley outside diameter is 55mm, and the unit weighs 5.46kg.

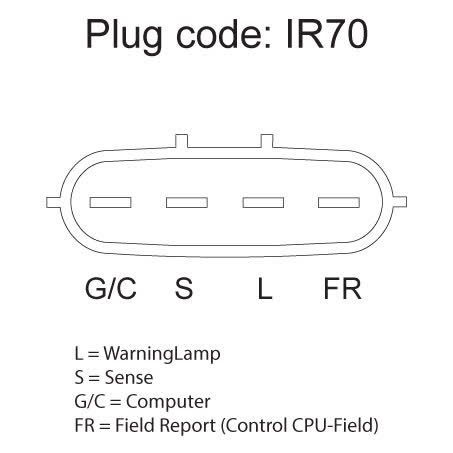

This part is identified as OEX part number MXA2008 and pin code IR70. It is covered by a 3 year passenger / 1 year commercial warranty, which is an important consideration when comparing replacement alternators for Mitsubishi-style applications.

Key Features

• 12V alternator with 90A power rating
• Mitsubishi style replacement
• New unit, supplied each
• Internal regulator
• Twin leg alternator mount
• 4 groove pulley

Specifications

• Brand: OEX
• Type: Alternator
• Voltage: 12V
• Amperage: 90A
• Part No.: MXA2008
• Suites unit make: Mitsubishi
• Alternator mount: Twin leg
• Regulator type: Internal

Known fitment guidance

• Mitsubishi
• Mitsubishi Colt
• Mitsubishi FTO
• Mitsubishi Lancer
• Mitsubishi Pajero IO

Application and Buying Notes

Before ordering, check the alternator mount style and fixing dimensions against the vehicle already fitted. This unit uses a twin leg mount, 66mm inside mounting legs, a 10mm pivot hole and an M8 x 1.25 adjusting hole, so those measurements need to line up with the existing alternator and brackets.

The pulley and charging setup also matter. This alternator is a 12V, 90A unit with a 4 groove pulley and a 55mm pulley outside diameter, so the belt profile and drive arrangement should be checked against the vehicle before purchase.

If you are matching by part reference, MXA2008 and pin code IR70 are the key identifiers provided here. Those details are useful when comparing against an existing unit, a repair invoice, or an electrical parts cross-reference.

Although the fitment list includes Mitsubishi, Mitsubishi Colt, Mitsubishi FTO, Mitsubishi Lancer and Mitsubishi Pajero IO, final compatibility still depends on the exact application fitted to the vehicle. Alternators can vary by mounting style, pulley setup and charging output within the same model range.

This is a new alternator, not a remanufactured unit, and it is backed by a 3 year passenger / 1 year commercial warranty. For commercial use, the shorter warranty period is worth noting when budgeting for replacements and maintenance.

If the vehicle has been modified, fitted with a different belt drive, or already carries a non-standard alternator, compare every critical dimension before ordering. Matching the make alone is not enough where the mount, pulley and regulator arrangement must also align.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXA2008 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 66mm, Pivot Hole Diameter 10, Pulley Outside Diameter 55mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 175mm, Weight 5.46kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. MXA2008, Brand OEX, Description OEX Alternator 12V 90A Mitsubishi Style, Adjusting Hole Diameter M8 x 1.25, Pin Code IR70, Power Rating (Amp) 90, Pulley Section 4 Groove, Suits Unit Make Mitsubishi, Alternator Mount Twin Leg.

OEX Alternator 12V 90A Mitsubishi Style. Part number MXA2008 should be checked first. Listed voltage is 12. Listed output rating is 90. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 4 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

Compatibility note: Confirm fitment using part number MXA2008, pin code IR70, and the listed Mitsubishi-style mounting and pulley details before purchase. Vehicle model names are only a guide; the physical alternator and connector arrangement must match the application fitted to the car.

FAQ

Is this alternator new or remanufactured?

This OEX alternator is listed as new. For this listing, part number MXA2008 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include MITSUBISHI COLT, MITSUBISHI COLT 2004, MITSUBISHI COLT 2005. These details should still be checked against the original unit before ordering.

What is the voltage and amperage rating?

It is a 12V alternator with a 90A power rating. For this listing, part number MXA2008 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include MITSUBISHI COLT, MITSUBISHI COLT 2004, MITSUBISHI COLT 2005. These details should still be checked against the original unit before ordering.

What mounting style does it use?

It uses a twin leg alternator mount, with 66mm inside mounting legs and a 175mm mount centre-to-centre measurement. For this listing, part number MXA2008 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include MITSUBISHI COLT, MITSUBISHI COLT 2004, MITSUBISHI COLT 2005. These details should still be checked against the original unit before ordering.

Does it have an internal regulator?

Yes. The regulator type is listed as internal. For this listing, part number MXA2008 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include MITSUBISHI COLT, MITSUBISHI COLT 2004, MITSUBISHI COLT 2005. These details should still be checked against the original unit before ordering.

What pulley setup does it use?

It has a 4 groove pulley with a 55mm pulley outside diameter. For this listing, part number MXA2008 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include MITSUBISHI COLT, MITSUBISHI COLT 2004, MITSUBISHI COLT 2005. These details should still be checked against the original unit before ordering.

Which vehicles are listed in the fitment guidance?

The provided fitment guidance includes Mitsubishi, Mitsubishi Colt, Mitsubishi FTO, Mitsubishi Lancer and Mitsubishi Pajero IO. Final fitment should still be confirmed against part number MXA2008 and the physical measurements. For this listing, part number MXA2008 is the main reference point. Listed voltage is 12. Listed output rating is 90. Published fitment references include MITSUBISHI COLT, MITSUBISHI COLT 2004, MITSUBISHI COLT 2005. These details should still be checked against the original unit before ordering.
