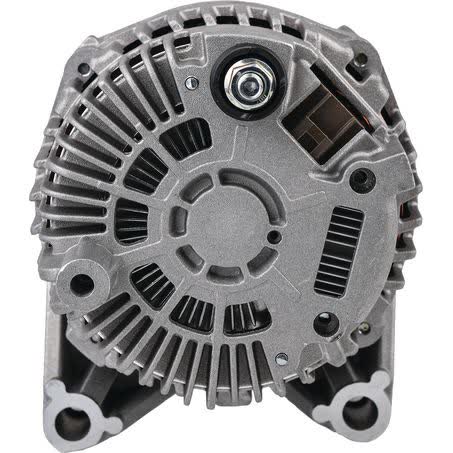

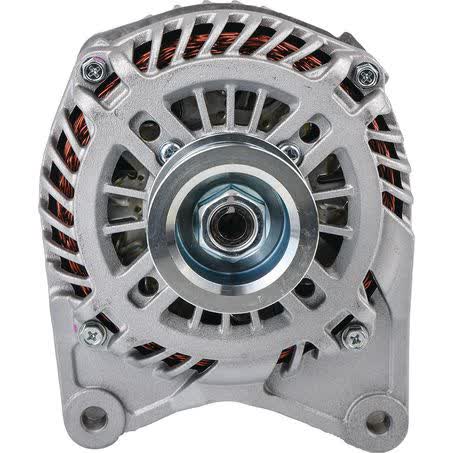

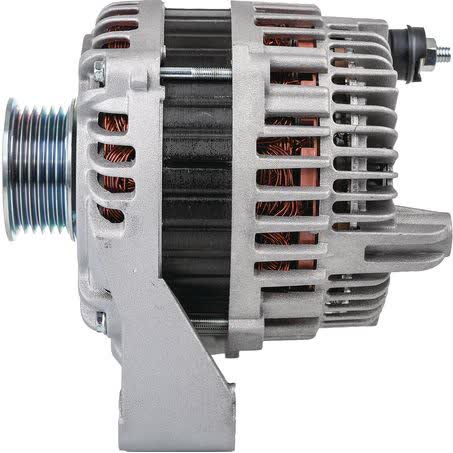

OEX Alternator 12V 130A Mitsubishi Style MXA2017

The OEX Alternator MXA2017 is a 12V, 130A unit in Mitsubishi style, supplied new and sold as each. It uses an internal regulator, a 6 groove pulley, and a single leg mount, so the physical layout and electrical specification need to suit the vehicle before fitting.

Key mounting measurements on this alternator are a 110mm mount centre to centre, 45mm mount leg thickness, 9mm pivot hole diameter, and 9mm adjusting hole diameter. The pulley outside diameter is 54mm and the unit weighs 5.88kg, which are useful checks when comparing against the original alternator.

This part is listed under OEX part number MXA2017 and pin code IR89. The stated suit is Mitsubishi, and the product information also includes fitment data for selected Ford and FPV applications. Because alternators can differ by bracket style, pulley setup, and electrical output, matching the part number and the physical dimensions is the safest way to confirm the correct replacement.

Key Features

• 12V alternator with 130A output
• Mitsubishi style unit
• Internal regulator
• 6 groove pulley
• Single leg mount
• New unit, sold each

Specifications

• Voltage: 12V
• Power rating: 130A
• Regulator type: Internal
• Pulley section: 6 groove
• Pulley outside diameter: 54mm
• Mount leg thickness: 45mm
• Mount centre to centre: 110mm
• Pivot hole diameter: 9mm

Fitment guidance

• Suits unit make: Mitsubishi
• Fitment data also lists Ford applications including Fairmont, Falcon and Territory
• Fitment data also lists FPV applications including FPV Falcon
• Sample model years shown in the fitment data include Ford Fairmont 2005 to 2008, Ford Falcon 2005 to 2010, Ford Territory, and FPV Falcon 2004 to 2014
• Use the supplied part number and application details to confirm the correct match before ordering

Application and Buying Notes

Confirm the replacement against OEX part number MXA2017 and the vehicle’s existing alternator before purchase. The important checks here are the 12V system, 130A output, internal regulator, 6 groove pulley, and single leg mount, because those features need to match the charging system and bracket arrangement already on the vehicle.

The physical dimensions matter just as much as the electrical figures. Measure the 110mm mount centre to centre, 45mm mount leg thickness, and 9mm pivot and adjusting holes on the existing unit, then compare them with the alternator being replaced. The 54mm pulley outside diameter and 5.88kg weight are also useful reference points when checking for a direct physical match.

This alternator is described as Mitsubishi style and the fitment information includes Mitsubishi plus selected Ford and FPV applications. That means the part may suit more than one vehicle family, but it should still be matched carefully to the existing unit and application details. If the original alternator differs in mount style, pulley section, or regulator type, it is best to verify compatibility before committing to the purchase.

OEX states that its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with ISO9001 certified factories supporting engineering, testing and quality control procedures. The unit is also backed by a 3 year passenger and 1 year commercial warranty, which is relevant when comparing replacement options for private or trade use.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXA2017 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Leg Thickness 45mm, Pivot Hole Diameter 9, Pulley Outside Diameter 54mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 110mm, Weight 5.88kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. MXA2017, Brand OEX, Description OEX Alternator 12V 130A Mitsubishi Style, Adjusting Hole Diameter 9, Pin Code IR89, Power Rating (Amp) 130, Pulley Section 6 Groove, Suits Unit Make Mitsubishi, Alternator Mount Single Leg.

OEX Alternator 12V 130A Mitsubishi Style. Part number MXA2017 should be checked first. Listed voltage is 12. Listed output rating is 130. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Single Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number MXA2017, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 130 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm compatibility using OEX part number MXA2017, the Mitsubishi style specification, and the vehicle’s existing alternator dimensions and application details before ordering. Fitment should always be checked against the original unit rather than relying on appearance alone.

FAQ

What is the part number for this alternator?

The listed OEX part number is MXA2017. The pin code is IR89.

What voltage and output does this alternator have?

It is a 12V alternator with a 130A power rating.

Is the regulator internal or external?

The regulator type is internal.

What pulley setup does this alternator use?

It uses a 6 groove pulley with a 54mm outside diameter.

What mounting measurements are listed?

The listed measurements are 110mm mount centre to centre, 45mm mount leg thickness, and 9mm pivot and adjusting hole diameters. It is a single leg mount alternator.

What warranty is listed for this alternator?

The warranty listed is 3 years for passenger use and 1 year for commercial use.
