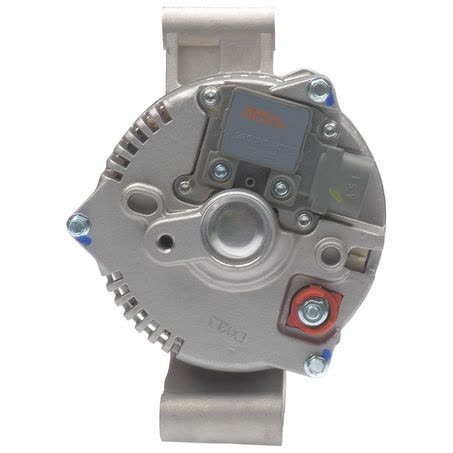

OEX Alternator 12V 95A Autolite Style AXA983

The OEX Alternator AXA983 is a new 12V, 95A unit made to suit Autolite style applications. It uses an internal regulator, a pad alternator mount, and a 6 groove pulley, so the key dimensions and drive setup can be checked against the original unit before ordering.

This alternator has 74mm inside mounting legs, a 176mm mount centre to centre measurement, and 10mm adjusting hole and pivot hole diameters. Those figures are important when confirming bracket alignment, especially where the original alternator sits tightly in the engine bay or uses fixed mounting points.

The pulley outside diameter is 56.5mm and the unit weighs 5.9kg. It is listed as a new alternator, not remanufactured, and it carries the OEX warranty of 3 years for passenger use and 1 year for commercial use.

Key Features

• 12V alternator with 95A output
• Autolite style unit
• Internal regulator
• 6 groove pulley
• Pad mount design
• New unit

Specifications

• Voltage: 12V
• Power rating: 95A
• Part number: AXA983
• Suits unit make: Autolite
• Alternator mount: Pad
• Regulator type: Internal
• Pulley section: 6 groove
• Pulley outside diameter: 56.5mm

Fitment guidance

• Fitment data includes Ford and Mazda applications, including Ford Courier, Ford Explorer, Ford F-150, Ford Mustang, Mazda B-Series and related year listings.
• Some listed examples include Ford Courier 2005 and 2006, Ford Explorer 1996 through 2001, Ford F-150 1986, and Mazda B-Series 2000 through 2006.
• Use the part number AXA983 and the supplied mounting and pulley dimensions to confirm the correct match before purchasing.

Application and Buying Notes

The most reliable way to confirm this alternator is by matching the part number AXA983, the Autolite style application, and the mounting measurements. The 74mm inside mounting legs, 176mm mount centre to centre, and 10mm adjusting and pivot holes need to align with the vehicle’s brackets and adjuster hardware.

The 12V, 95A rating suits systems designed for that output level, but output alone does not confirm fitment. Check the regulator type, which is internal, and make sure the vehicle’s charging system is set up for an internally regulated alternator before ordering.

The 6 groove pulley with a 56.5mm outside diameter also needs to match the belt system already on the vehicle. If the belt section or pulley style differs from the original unit, the alternator may not be a direct installation even if the body mount appears similar.

This is a new alternator and is listed with a 3 year passenger warranty and 1 year commercial warranty. Warranty coverage does not replace the need to verify physical fitment, wiring arrangement, and pulley alignment against the existing unit.

If you are replacing a worn alternator, compare the old unit side by side where possible. Check the pad mount style, mount leg thickness of 56mm, and overall size before finalising the order. Those details are often the difference between a straightforward replacement and a unit that needs bracket or pulley changes.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number AXA983 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

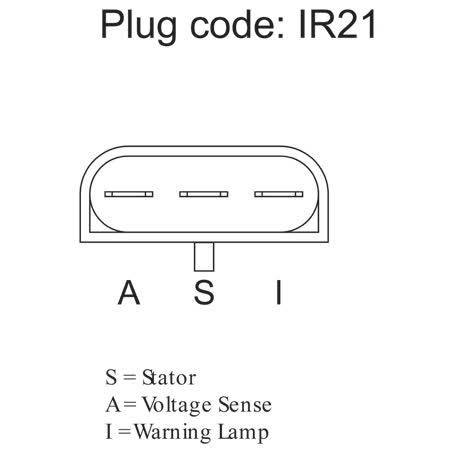

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 74mm, Pin Code IR21, Power Rating (Amp) 95, Pulley Section 6 Groove, Suits Unit Make Autolite, Alternator Mount Pad, New / Reman. New.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. AXA983, Brand OEX, Description OEX Alternator 12V 95A Autolite Style, Adjusting Hole Diameter 10, Mount Leg Thickness 56mm, Pivot Hole Diameter 10, Pulley Outside Diameter 56.5mm, Regulator Type Internal.

OEX Alternator 12V 95A Autolite Style. Part number AXA983 should be checked first. Listed voltage is 12. Listed output rating is 95. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Pad. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number AXA983, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 95 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include FORD COURIER, FORD COURIER 2005, FORD COURIER 2006, FORD EXPLORER, MAZDA B-SERIES, MAZDA B-SERIES 2000. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm compatibility using part number AXA983, the Autolite style application, and the listed mounting, pulley, and regulator details before purchase. Do not rely on vehicle make alone when checking fitment.

FAQ

What type of alternator is this?

It is a new OEX alternator, 12V and 95A, listed as an Autolite style unit with an internal regulator and pad mount.

What is the part number?

The part number is AXA983.

Is this alternator new or remanufactured?

It is listed as new, not remanufactured.

What pulley setup does it use?

It has a 6 groove pulley with a pulley outside diameter of 56.5mm.

What mounting measurements are provided?

The listed mounting details are 74mm inside mounting legs, 176mm mount centre to centre, 10mm adjusting hole diameter, 10mm pivot hole diameter, and 56mm mount leg thickness.

What warranty applies?

The warranty is 3 years for passenger use and 1 year for commercial use.
