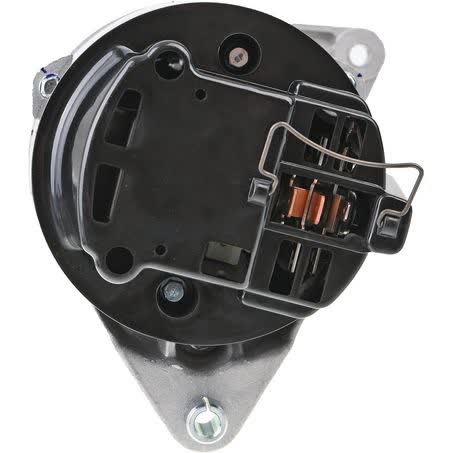

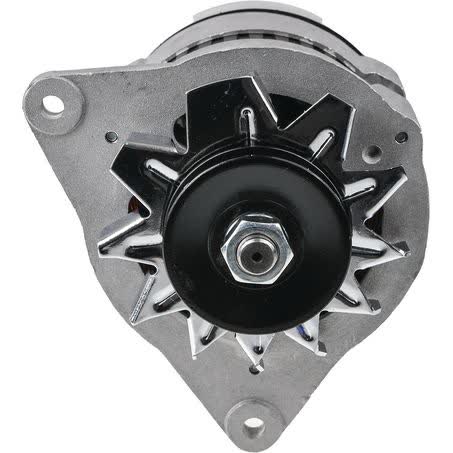

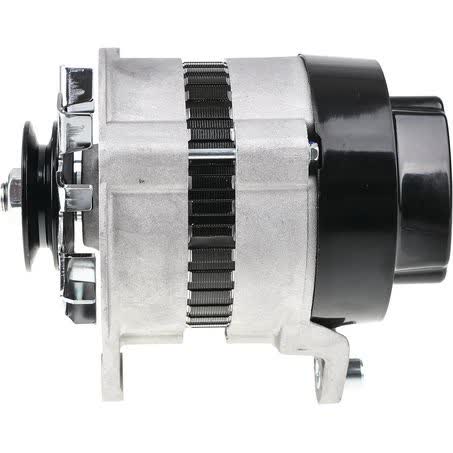

OEX Alternator 12V 36A Lucas Style LXA203

The OEX Alternator LXA203 is a 12V, 36 amp alternator built in a Lucas style format for applications that suit a Lucas unit. It is a new alternator, supplied each, with an internal regulator and a twin leg alternator mount.

Key mounting details matter on this unit: inside mounting legs are 85mm, the mount centre to centre is 144mm, and both the pivot hole diameter and adjusting hole diameter are 8mm. The pulley is a 65mm outside diameter A section pulley, with a 15mm shaft dimension.

For buyers comparing replacement charging components, the important identifiers here are the OEX brand, part number LXA203, pin code IR25, and the stated 12V 36A power rating. Those details help narrow the part down before you remove the old unit or place an order.

OEX positions this alternator range around quality, reliability, and controlled manufacturing, with ISO9001 certified factories supporting engineering, testing, and quality control procedures. It is backed by a 3 year passenger / 1 year commercial warranty.

Key Features

• 12V alternator with 36 amp power rating
• Lucas style unit for applications that suit a Lucas alternator
• New alternator, supplied each
• Internal regulator
• Twin leg alternator mount
• 85mm inside mounting legs

Specifications

• Brand: OEX
• Product type: Alternator
• Part number: LXA203
• Description: OEX Alternator 12V 36A Lucas Style
• Voltage: 12V
• Power rating: 36A
• Regulator type: Internal
• Alternator mount: Twin leg

Known application groups

• Austin Mini
• Case
• Case IH
• Ford Capri
• Ford Cortina
• Ford Escort
• Ford Transit
• International Harvester 574

Application and Buying Notes

Before ordering, compare the part number LXA203 and the Lucas style configuration against the alternator you are removing. The main physical checks on this unit are the twin leg mount, 85mm inside mounting legs, 144mm mount centre to centre, and 8mm pivot and adjusting holes.

The electrical side is equally important. This alternator is 12V with a 36A output and an internal regulator, so it suits applications that match those details. If your original unit uses a different voltage, output, regulator type, or pulley arrangement, it should not be treated as a direct match without verification.

Pulley and shaft dimensions also need to line up. This unit has a 65mm outside diameter A section pulley and a 15mm shaft dimension, which are practical checkpoints when comparing against an existing alternator or a vehicle application listing.

The fitment list supplied for this part includes a range of older vehicle and equipment groups, but the safest buying approach is still to confirm the exact application against the vehicle details and the removed part. That is especially important where there are multiple versions across the same model family, or where previous repairs may have changed the charging system arrangement.

Weight is listed at 3.88kg, which can also be a useful comparison point when checking the part in hand. If you are fitting this to a vehicle already converted or modified, check the mounting style, pulley section, and regulator setup carefully before purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number LXA203 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 85mm, Pivot Hole Diameter 8, Pulley Outside Diameter 65mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 144mm, Shaft Dimension 15.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. LXA203, Brand OEX, Description OEX Alternator 12V 36A Lucas Style, Adjusting Hole Diameter 8, Pin Code IR25, Power Rating (Amp) 36, Pulley Section A, Suits Unit Make Lucas.

OEX Alternator 12V 36A Lucas Style. Part number LXA203 should be checked first. Listed voltage is 12. Listed output rating is 36. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is A. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number LXA203, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 36 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include AUSTIN MINI, AUSTIN MINI 1967, AUSTIN MINI 1968, AUSTIN MINI 1969, CASE 1200 1969, CASE 1200 1970. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility using the part number LXA203, Lucas style application details, 12V 36A rating, twin leg mount dimensions, and pulley specifications before ordering. The listed application groups are helpful, but final fitment should always be checked against the vehicle and the alternator being replaced.

FAQ

What is the part number for this alternator?

The part number is LXA203.

Is this alternator new or reconditioned?

It is listed as new.

What voltage and output does it have?

It is a 12V alternator with a 36A power rating.

Does it have an internal regulator?

Yes. The regulator type is internal.

What are the key mounting measurements?

The inside mounting legs are 85mm, the mount centre to centre is 144mm, and both the pivot hole diameter and adjusting hole diameter are 8mm.

What warranty is listed?

The warranty is 3 years for passenger use and 1 year for commercial use.
