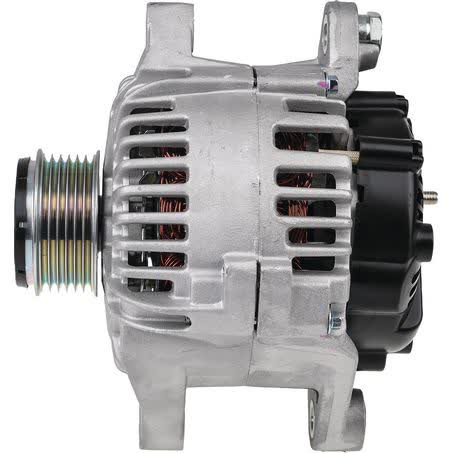

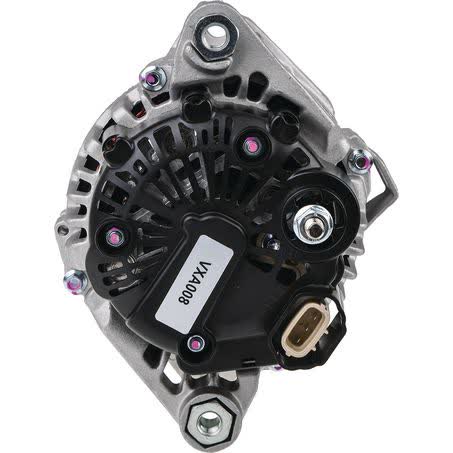

OEX Alternator 12V 110A Valeo Style VXA008

The OEX Alternator VXA008 is a new 12V unit rated at 110A and built in a Valeo style configuration. It suits Valeo applications and uses a quad leg alternator mount, with inside mounting legs measured at 57mm and a mount centre-to-centre measurement of 170mm.

This alternator is supplied as a new unit, not remanufactured, and runs a 6 groove pulley with a 60mm outside diameter. The regulator is internal, which is an important checkpoint when comparing against the original alternator or checking the vehicle’s charging system layout.

Key Features

• 12V alternator rated at 110A
• Valeo style unit
• New alternator, not remanufactured
• Internal regulator
• Quad leg alternator mount
• 6 groove pulley

Specifications

• Brand: OEX
• Part No.: VXA008
• Description: OEX Alternator 12V 110A Valeo Style
• Voltage: 12V
• Power rating: 110A
• Type: Alternator
• Unit of measure: Each
• New / remanufactured: New

Vehicle fitment guidance

• Supported fitment data includes Hyundai i45, Hyundai ix35 and Hyundai Sonata applications.
• Supported fitment data includes Kia Cerato, Kia Cerato Koup, Kia Magentis, Kia Optima, Kia Rondo and Kia Sorento applications.
• Sample application data includes Hyundai i45 2011, 2012 and 2013, plus Hyundai ix35 2010 to 2015.
• Sample application data includes Kia Cerato 2009 to 2013 and Kia Cerato Koup 2009 to 2013.

Application and Buying Notes

Before ordering, compare the part number VXA008, the Valeo style designation and the mounting measurements against the original alternator fitted to the vehicle. The key checks here are the quad leg mount, 57mm inside mounting legs, 170mm mount centre-to-centre measurement, and the M10x1.25 / 10 pivot and adjusting holes.

Electrical connection is another important point. This unit uses only the L and FR pins for connection, with S listed as a dummy terminal. If the existing plug or harness arrangement differs, the adaptor note for HXK-17, HXK-22 and HXK-30 may be relevant, but the connector style should still be checked carefully against the vehicle.

The charging output is 110A at 12V, so it is intended to match the original charging requirement rather than be chosen on guesswork. Pulley details also matter: this alternator has a 6 groove pulley with a 60mm outside diameter, and the pulley arrangement needs to align with the belt system already on the vehicle.

As with any alternator replacement, it is sensible to confirm the old unit’s fitment by part number, mounting style, pulley section and electrical plug layout. Even where the vehicle appears in the supported application list, small differences in alternator bracketting or wiring can affect whether the part is a direct replacement.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXA008 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 57mm, Pivot Hole Diameter M10x1.25 / 10, Pulley Outside Diameter 60mm, Regulator Type Internal, Voltage 12, Alternator Mount Quad Leg, New / Reman. New.

Additional published details for cross-checking include Product Group 2 ALTERNATORS, Part No. VXA008, Brand OEX, Description OEX Alternator 12V 110A Valeo Style, Adjusting Hole Diameter M10x1.25 / 10, Pin Code IR104, Power Rating (Amp) 110, Pulley Section 6 Groove, Suits Unit Make Valeo.

OEX Alternator 12V 110A Valeo Style. Part number VXA008 should be checked first. Listed voltage is 12. Listed output rating is 110. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Quad Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number VXA008, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a alternator in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 and output 110 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment by matching the vehicle application, part number VXA008, Valeo style specification, quad leg mount, pulley details and connector arrangement before purchase.

FAQ

What is the part number for this alternator?

The part number is VXA008. For this listing, part number VXA008 is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include HYUNDAI I45, HYUNDAI I45 2011, HYUNDAI I45 2012. These details should still be checked against the original unit before ordering.

Is this alternator new or remanufactured?

It is listed as new. For this listing, part number VXA008 is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include HYUNDAI I45, HYUNDAI I45 2011, HYUNDAI I45 2012. These details should still be checked against the original unit before ordering.

What voltage and output does it have?

It is a 12V alternator rated at 110A. For this listing, part number VXA008 is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include HYUNDAI I45, HYUNDAI I45 2011, HYUNDAI I45 2012. These details should still be checked against the original unit before ordering.

What type of regulator does it use?

It has an internal regulator. For this listing, part number VXA008 is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include HYUNDAI I45, HYUNDAI I45 2011, HYUNDAI I45 2012. These details should still be checked against the original unit before ordering.

What pulley and mounting details should I check?

It has a 6 groove pulley with a 60mm outside diameter, a quad leg mount, 57mm inside mounting legs, and 170mm mount centre-to-centre. For this listing, part number VXA008 is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include HYUNDAI I45, HYUNDAI I45 2011, HYUNDAI I45 2012. These details should still be checked against the original unit before ordering.

Which connector pins are used?

Only the L and FR pins are required for connection. S is a dummy terminal, and an adaptor is noted to suit HXK-17, HXK-22 and HXK-30. For this listing, part number VXA008 is the main reference point. Listed voltage is 12. Listed output rating is 110. Published fitment references include HYUNDAI I45, HYUNDAI I45 2011, HYUNDAI I45 2012. These details should still be checked against the original unit before ordering.
