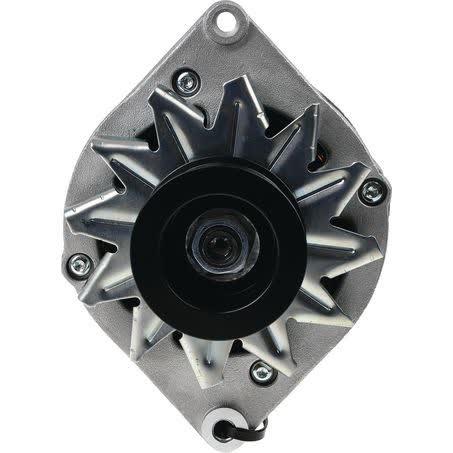

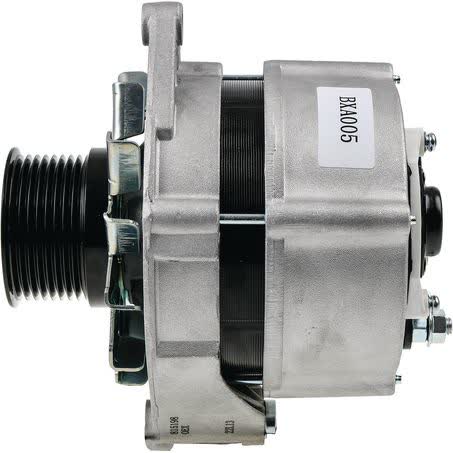

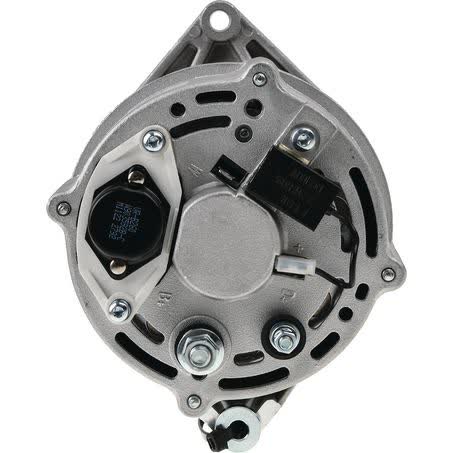

OEX Alternator 12V 95A Bosch Style BXA005

The OEX Alternator 12V 95A Bosch Style is a new rotating electrical unit with internal regulation, 12 volt output and a 95 amp power rating. It is listed under part number BXA005 and is supplied as a single-leg alternator with an 8 groove pulley, so it suits applications that match those physical and electrical details.

This unit is listed with a 62 mm pulley outside diameter, 17 mm shaft dimension, 51 mm mount leg thickness and a mount centre to centre measurement of 173 mm. It also includes a mount leg spacer to bring the mount leg to 56 mm, which is worth checking if you are replacing an existing Bosch-style unit and comparing bracket spacing before ordering.

OEX lists this alternator as suitable for Bosch applications, and the stated pin code is IR165. As with any alternator replacement, the safest way to confirm a match is to compare the part number, mounting points, pulley configuration and regulator type against the unit currently fitted to the vehicle or machine.

Key Features

• 12V alternator with 95A output
• Internal regulator type
• New unit, not remanufactured
• Single-leg alternator mount
• 8 groove pulley section
• Includes mount leg spacer

Specifications

• Brand: OEX
• Product type: Alternator
• Voltage: 12V
• Power rating: 95A
• Regulator type: Internal
• Pulley outside diameter: 62 mm
• Pulley section: 8 groove
• Mount leg thickness: 51 mm

Known application guidance

• Fits Bosch-style applications where the mounting and electrical specifications match the listed unit.
• Fitment information supplied for comparison includes BLAW KNOX PF2181.
• Fitment information supplied for comparison includes CASE 135, 1835B, 1845B, 1845C, 21E, 221E, 321, 350B, 40D, 40DR, 40R and 40XT.
• Fitment information supplied for comparison includes CATERPILLAR 3116T, 416, 416B, 416C, 416D, 416E, 420D, 420E, 422F, 426, 426B and 426C.
• Fitment information supplied for comparison includes DYNAPAC CA251A/AD, CA262D/PD and CC522.
• Fitment information supplied for comparison includes HERCULES ENSIGN YX638, HC800B and SEM636D.
• Fitment information supplied for comparison includes INTERNATIONAL HARVESTER 2500GD, 574, 58, 674, 685, 706, 743, 756, 766, 782, B-SERIES and CM-SERIES.
• Fitment information supplied for comparison includes JCB FASTRAC.

Application and Buying Notes

Before ordering, compare the part number BXA005, the Bosch-style designation, and the physical mounting details on the current alternator. The important checks here are the single-leg mount, 51 mm mount leg thickness, 173 mm mount centre to centre, 8/10 mm pivot hole diameter, 8 mm adjusting hole diameter and the 8 groove pulley with a 62 mm outside diameter.

The included mount leg spacer is relevant where the mount leg needs to be 56 mm, so measure the existing setup rather than relying on appearance alone. Alternators can look similar but differ in bracket offset, shaft size or pulley configuration, and those details matter just as much as voltage and amperage when a replacement needs to bolt straight up.

This alternator is a 12V, 95A unit with an internal regulator, so it is important to confirm the vehicle or machine uses the same charging system arrangement. The listed applications cover a range of industrial and agricultural equipment, but matching the stated fitment data and physical dimensions is still the correct way to avoid downtime and return freight.

If you are replacing a worn unit, check for signs of belt alignment issues, damaged wiring terminals, or pulley mismatch before fitting the new alternator. The 17 mm shaft dimension, 5.42 kg weight and IR165 pin code are useful reference points when comparing against the original unit or cross-checking with your installer.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXA005 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Leg Thickness 51mm, Pivot Hole Diameter 8/10, Pulley Outside Diameter 62mm, Regulator Type Internal, Voltage 12, Alternator Mount Single Leg, New / Reman. New.

Additional published details for cross-checking include Weight 5.42kg, Product Group 1 ROTATING ELECTRICAL, Part No. BXA005, Brand OEX, Description OEX Alternator 12V 95A Bosch Style, Adjusting Hole Diameter 8, Pin Code IR165, Power Rating (Amp) 95, Pulley Section 8 Groove, Suits Unit Make Bosch.

OEX Alternator 12V 95A Bosch Style. Part number BXA005 should be checked first. Listed voltage is 12. Listed output rating is 95. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Single Leg. Regulator type is Internal. Pulley configuration is 8 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number BXA005, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Confirm fitment by checking part number BXA005, Bosch-style application details, mounting dimensions, pulley specification and the current alternator on the vehicle or machine before purchase.

FAQ

Is this alternator new or remanufactured?

This alternator is listed as new, not remanufactured.

What is the output rating?

It is a 12V alternator with a 95A power rating.

What regulator type does it use?

The regulator type is internal.

What pulley setup does it have?

It has an 8 groove pulley with a 62 mm outside diameter.

Does it suit Bosch applications?

Yes. It is listed as Bosch style and the suit unit make is Bosch, so matching the mounting and electrical details is still required.

What warranty is listed?

The listed warranty is 3 years for passenger use and 1 year for commercial use.
