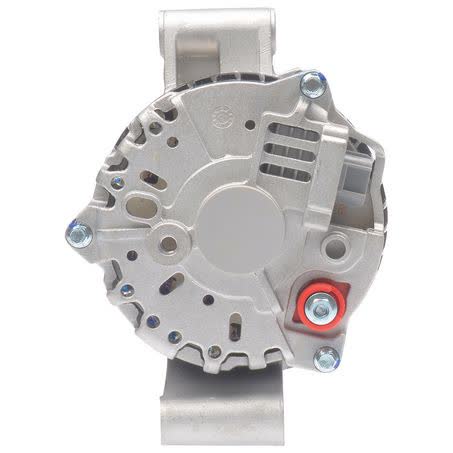

OEX Alternator 12V 110A Autolite Style AXA981

The OEX Alternator AXA981 is a 12V, 110A replacement alternator in Autolite style, supplied new and built with an internal regulator. It uses an 8 groove pulley, pad mount, and carries a 3yr passenger / 1yr commercial warranty. For buyers comparing alternators by fit and electrical output, the key identifiers here are 12 volts, 110 amps, Pin Code IR81, and Part No. AXA981.

This unit is listed as a replacement for Autolite-style applications and is measured with a 64mm pulley outside diameter, 175mm mount centre to centre, 74mm inside width, and 10mm pivot and adjusting hole diameters. Those dimensions matter because alternators that appear similar can differ in mounting and pulley details, so the part number and physical measurements should be checked together before ordering.

At 6.3kg, this is a new rotating electrical unit sold each. The OEX alternator range is positioned as an aftermarket option with a focus on quality and reliability, and this model sits in the OEX rotating electrical and alternators product groups. If you are replacing an existing Autolite-style alternator, matching the listed specifications is the safest way to confirm suitability.

Key Features

• 12V alternator with 110A output
• Autolite style replacement
• New unit, sold each
• Internal regulator
• 8 groove pulley
• Pad mount design

Specifications

• Brand: OEX
• Type: Alternator
• Voltage: 12V
• Power rating: 110A
• Part No.: AXA981

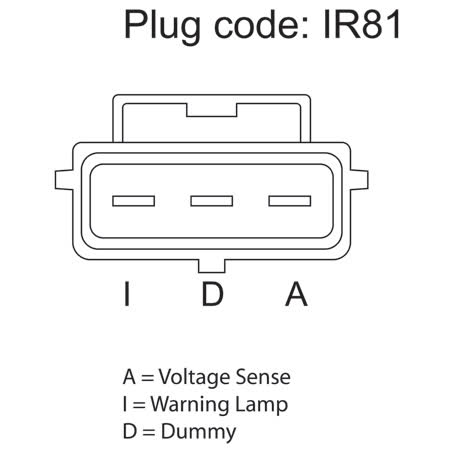

• Pin Code: IR81
• Suits unit make: Autolite
• Alternator mount: Pad

Fitment guidance

• Supported fitment data includes Ford applications, with grouped previews showing Ford F-250, Ford F-350, and Ford F-350 Super Duty entries.
• Sample application data provided includes Ford F-250 1993, 1994, and 1995.
• The fitment token list covers Ford applications only in the supplied data preview, but full vehicle matching should still be confirmed against the existing alternator and mounting details before purchase.

Application and Buying Notes

When comparing this alternator to the one already on the vehicle, start with the part number AXA981, the Autolite style designation, and the physical mounting details: pad mount, 175mm mount centre to centre, 10mm pivot and adjusting holes, and 74mm inside width. These details are often more important than a visual match alone, especially on charging components where bracket and pulley differences can affect installation.

The 12V, 110A rating is the core electrical specification, so it should be checked against the vehicle’s original charging system requirements. The 8 groove pulley and 64mm pulley outside diameter also need to line up with the belt arrangement already fitted to the vehicle. If the belt type or pulley section does not match, the alternator may not be suitable even if the housing looks close.

This is a new alternator with an internal regulator, which means it is intended to be installed as a complete replacement unit rather than rebuilt or remanufactured. The 6.3kg weight can be a useful comparison point when checking against an old unit, but it should not be used on its own to confirm fitment. Always compare the listed measurements, regulator type, and unit make before finalising the order.

The warranty is listed as 3 years for passenger use and 1 year for commercial use. That warranty detail is useful for understanding the intended duty context, but it does not replace vehicle verification. For older Ford applications in particular, confirm the exact model year, engine setup, mounting style, and belt configuration against the vehicle currently in front of you.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number AXA981 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Pin Code IR81, Power Rating (Amp) 110, Pulley Section 8 Groove, Suits Unit Make Autolite, Alternator Mount Pad, New / Reman. New, Weight 6.3kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. AXA981, Brand OEX, Description OEX Alternator 12V 110A Autolite Style, Adjusting Hole Diameter 10, Pivot Hole Diameter 10, Pulley Outside Diameter 64mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 175mm.

OEX Alternator 12V 110A Autolite Style. Part number AXA981 should be checked first. Listed voltage is 12. Listed output rating is 110. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Pad. Regulator type is Internal. Pulley configuration is 8 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number AXA981, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Please confirm fitment using Part No. AXA981, the Autolite-style application, and the mounting and pulley measurements before purchase. If you are matching to a Ford application, verify the exact vehicle details against the existing alternator and belt setup rather than relying on appearance alone.

FAQ

What is the part number for this alternator?

The part number is AXA981.

What voltage and output does this alternator have?

It is a 12V alternator with a 110A power rating.

Is this unit new or remanufactured?

It is listed as new.

What type of regulator does it use?

It uses an internal regulator.

What pulley and mounting details are listed?

It has an 8 groove pulley, a 64mm pulley outside diameter, a pad mount, 175mm mount centre to centre, and 10mm pivot and adjusting hole diameters.

Which vehicles are shown in the fitment preview?

The supplied fitment preview shows Ford applications, including Ford F-250, Ford F-350, and Ford F-350 Super Duty entries, with sample Ford F-250 years listed from 1993 through 1995.
