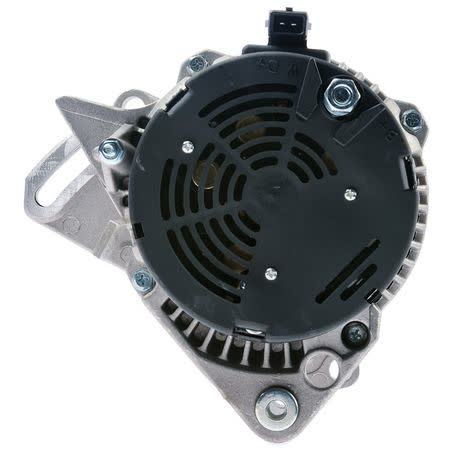

OEX Alternator 12V 70A Bosch Style BXA012

The OEX Alternator BXA012 is a new 12V, 70 amp unit made to Bosch style specifications, with a 6 groove pulley and internal regulator. It is listed as a twin leg alternator mount and suits Bosch applications where the physical mount and pulley arrangement match the vehicle.

Key dimensions include a 60mm inside mounting leg measurement, 145mm mount centre to centre, an M8 x 1.25 / 8.5 pivot hole diameter, and a 10mm adjusting hole diameter. Those measurements matter just as much as the electrical rating when checking replacement alternators.

This alternator is supplied under the OEX brand, with the brand stated as sourced from market leading original equipment manufacturers and aftermarket suppliers. The unit is new, weighs 4.8kg, and carries a 3 year passenger / 1 year commercial warranty.

Key Features

• 12V alternator with 70 amp output
• Bosch style replacement application
• Internal regulator
• 6 groove pulley
• Twin leg alternator mount
• New unit, not remanufactured

Specifications

• Part No.: BXA012
• Brand: OEX
• Type: Alternator
• Voltage: 12V
• Power Rating: 70A
• Pulley Outside Diameter: 48mm
• Pulley Section: 6 groove
• Regulator Type: Internal

Fitment guidance

• Volkswagen Golf
• Volkswagen Golf 1993
• Volkswagen Golf 1994
• Volkswagen Golf 1995
• Volkswagen Golf 1996
• Volkswagen Golf 1997
• Volkswagen Golf 1998

Application and Buying Notes

Before ordering, compare the part number BXA012 and the Bosch style application with the alternator already fitted to the vehicle. The mount layout, pulley section, hole sizes, and centre-to-centre measurements need to line up, not just the voltage and amp rating.

The 12V, 70A output is suitable only where the original charging system specification matches. If the vehicle uses a different pulley section, regulator type, or mounting arrangement, the alternator may not suit even if it appears similar at a glance.

Physical checks are important on this unit because the listed dimensions are specific: 60mm inside mounting legs, 145mm mount centre to centre, M8 x 1.25 / 8.5 pivot hole diameter, and a 10mm adjusting hole. Confirm those points against the old part before purchase.

The alternator is listed with a 48mm pulley outside diameter and 6 groove pulley section. Matching belt type and pulley configuration is essential, especially when replacing a Bosch style alternator on a vehicle where the original drive setup must be retained.

The warranty is 3 years for passenger use and 1 year for commercial use. That warranty detail is useful, but it does not replace fitment checking. Final responsibility still sits with the buyer or installer to verify the application details against the vehicle and the removed unit.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXA012 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 60mm, Pivot Hole Diameter M8x1.25 / 8.5, Pulley Outside Diameter 48mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 145mm, Weight 4.8kg.

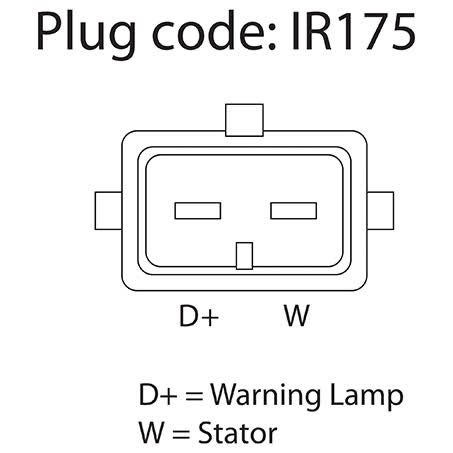

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. BXA012, Brand OEX, Description OEX Alternator 12V 70A Bosch Style, Adjusting Hole Diameter 10, Pin Code IR175, Power Rating (Amp) 70, Pulley Section 6 Groove, Suits Unit Make Bosch, Alternator Mount Twin Leg.

OEX Alternator 12V 70A Bosch Style. Part number BXA012 should be checked first. Listed voltage is 12. Listed output rating is 70. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Mount style is Twin Leg. Regulator type is Internal. Pulley configuration is 6 Groove. Those physical and electrical details should line up with the original unit before the replacement is approved for fitment.

For part number BXA012, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

Compatibility note: Confirm fitment by comparing the part number BXA012, Bosch style application, and all mount and pulley measurements with the original alternator before purchase. If the vehicle application or dimensions do not match, do not assume compatibility.

FAQ

What type of alternator is this?

It is a new OEX alternator, 12V and 70A, described as Bosch style with an internal regulator and a twin leg mount. For this listing, part number BXA012 is the main reference point. Listed voltage is 12. Listed output rating is 70. Published fitment references include VOLKSWAGEN GOLF, VOLKSWAGEN GOLF 1993, VOLKSWAGEN GOLF 1994. These details should still be checked against the original unit before ordering.

What is the part number?

The part number is BXA012. For this listing, part number BXA012 is the main reference point. Listed voltage is 12. Listed output rating is 70. Published fitment references include VOLKSWAGEN GOLF, VOLKSWAGEN GOLF 1993, VOLKSWAGEN GOLF 1994. These details should still be checked against the original unit before ordering.

What pulley does it use?

It uses a 6 groove pulley with a 48mm outside diameter. For this listing, part number BXA012 is the main reference point. Listed voltage is 12. Listed output rating is 70. Published fitment references include VOLKSWAGEN GOLF, VOLKSWAGEN GOLF 1993, VOLKSWAGEN GOLF 1994. These details should still be checked against the original unit before ordering.

What mounting measurements are listed?

Listed measurements include 60mm inside mounting legs, 145mm mount centre to centre, an M8 x 1.25 / 8.5 pivot hole diameter, and a 10mm adjusting hole diameter. For this listing, part number BXA012 is the main reference point. Listed voltage is 12. Listed output rating is 70. Published fitment references include VOLKSWAGEN GOLF, VOLKSWAGEN GOLF 1993, VOLKSWAGEN GOLF 1994. These details should still be checked against the original unit before ordering.

Which vehicles are listed in the fitment data?

The fitment data lists Volkswagen Golf applications, including Volkswagen Golf 1993 through 1998. For this listing, part number BXA012 is the main reference point. Listed voltage is 12. Listed output rating is 70. Published fitment references include VOLKSWAGEN GOLF, VOLKSWAGEN GOLF 1993, VOLKSWAGEN GOLF 1994. These details should still be checked against the original unit before ordering.

What warranty is supplied?

The warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number BXA012 is the main reference point. Listed voltage is 12. Listed output rating is 70. Published fitment references include VOLKSWAGEN GOLF, VOLKSWAGEN GOLF 1993, VOLKSWAGEN GOLF 1994. These details should still be checked against the original unit before ordering.
