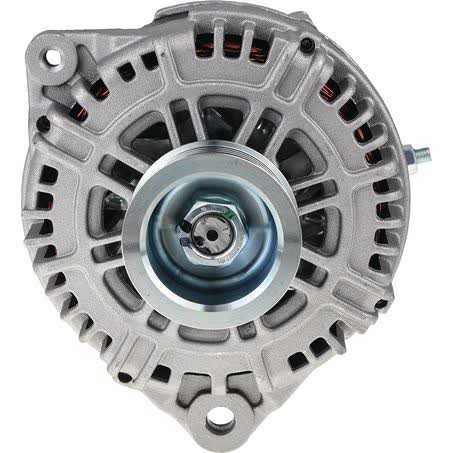

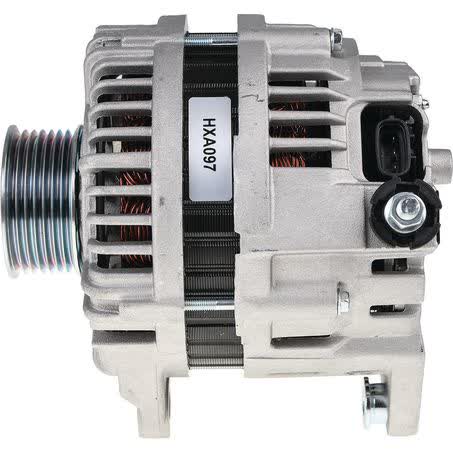

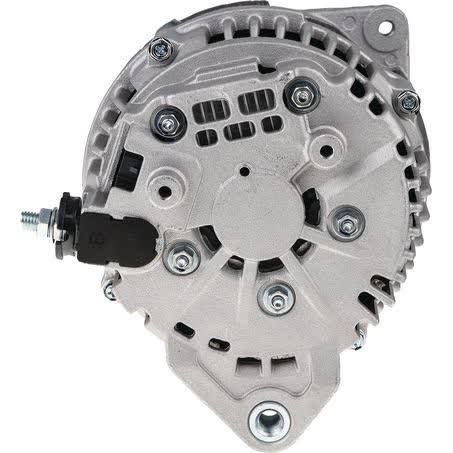

OEX Alternator 12V 130A Hitachi Style HXA097

The OEX Alternator HXA097 is a new 12V, 130A unit designed in a Hitachi style configuration. It suits Hitachi applications and uses an internal regulator, a 7 groove pulley, and a twin leg alternator mount. For a replacement alternator, those details matter as much as the amp rating, because pulley, mounting and regulator style all need to match the vehicle setup.

Key measurements on this unit include an 80mm inside mounting leg spacing, a 156mm mount centre-to-centre dimension, a 60mm pulley outside diameter, an M10x1.25 / 10.5 pivot hole diameter, and an M8x1.25 adjusting hole diameter. The unit weighs 6.66kg and is supplied as each.

OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with ISO9001 certified factory sourcing and a comprehensive nationwide warranty. For buyers comparing alternators, that gives a clear starting point, but the safest match is still to check the part number HXA097, the Hitachi style layout, and the listed dimensions against the vehicle or removed unit.

Key Features

• 12V alternator
• 130A power rating
• Hitachi style
• Internal regulator
• Twin leg alternator mount
• 7 groove pulley

Specifications

• Brand: OEX
• Part No.: HXA097
• Voltage: 12
• Power Rating: 130A
• Suits Unit Make: Hitachi
• Alternator Mount: Twin Leg
• Pulley Section: 7 Groove
• Pulley Outside Diameter: 60mm

Fitment guidance

• Listed fitment includes Infiniti QX80.
• Listed fitment includes Nissan Navara.
• Listed fitment includes Nissan Pathfinder.
• Listed fitment includes Nissan Patrol.
• Fitment references in the supplied data also show model year coverage for Infiniti QX80 from 2013 to 2019 and Nissan Navara / Nissan Pathfinder across multiple years.
• No specific engine, chassis, or exact application code is supplied here, so confirm the part number and physical measurements before ordering.

Application and Buying Notes

This alternator is specified as a 12V, 130A OEX unit with a Hitachi style layout, so the most important checks are voltage, amp output, mounting style, pulley groove count and regulator type. The twin leg mount and 7 groove pulley are not small details; they need to align with the vehicle’s belt system and bracket arrangement for the alternator to sit and run correctly.

The physical dimensions are also worth checking against the original unit. The 80mm inside mounting legs, 156mm centre-to-centre mount measurement, M10x1.25 / 10.5 pivot hole, and M8x1.25 adjusting hole give you useful reference points when comparing against the removed alternator or vehicle bracketry. If the old alternator has been changed previously, measuring it before purchase is a sensible step.

Although the fitment list includes Infiniti QX80, Nissan Navara, Nissan Pathfinder and Nissan Patrol references, the exact vehicle match still depends on the alternator fitted to the vehicle. Alternators can vary within the same model range, so the safest approach is to confirm the part number HXA097, the Hitachi make reference, and the mount and pulley details before fitting.

The unit is new, not remanufactured, and weighs 6.66kg. That weight and construction detail can help when comparing against a removed unit, especially if you are sorting through multiple alternator options. The warranty is 3 years for passenger use and 1 year for commercial use, so it is still important to follow correct installation practice and make sure the charging system is in good order before and after fitting.

For commercial or high-use vehicles, the 130A output may be relevant where electrical load is higher, but it should still be matched to the vehicle’s intended application. If the belt setup, plug arrangement or mounting offsets are different, do not rely on the amp rating alone. Use the listed dimensions and the part number HXA097 as the primary confirmation points.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number HXA097 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type ALTERNATOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Inside Mounting Legs 80mm, Pivot Hole Diameter M10x1.25 / 10.5, Pulley Outside Diameter 60mm, Regulator Type Internal, Voltage 12, Mount Cnt to Cnt 156mm, Weight 6.66kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. HXA097, Brand OEX, Description OEX Alternator 12V 130A Hitachi Style, Adjusting Hole Diameter M8x1.25, Pin Code IR50, Power Rating (Amp) 130, Pulley Section 7 Groove, Suits Unit Make Hitachi, Alternator Mount Twin Leg.

OEX Alternator 12V 130A Hitachi Style. Part number HXA097 should be checked first. Listed voltage is 12. Listed output rating is 130. These details form the core reference points used by parts interpreters when confirming the correct replacement.

Compatibility note: Please confirm compatibility using part number HXA097, the Hitachi style specification, and the listed mounting and pulley measurements before ordering. Fitment references are supplied for selected Infiniti and Nissan applications, but exact vehicle matching should always be verified against the existing alternator and vehicle details.

FAQ

What type of alternator is this?

It is an OEX alternator, 12V and 130A, in a Hitachi style configuration with an internal regulator and twin leg mount.

Is this a new unit or a remanufactured unit?

This alternator is listed as new.

What part number should I check against?

The part number supplied is HXA097.

What pulley setup does it use?

It uses a 7 groove pulley with a 60mm pulley outside diameter.

What vehicles are referenced in the fitment data?

The supplied fitment references include Infiniti QX80, Nissan Navara, Nissan Pathfinder and Nissan Patrol.

What should I verify before buying?

Check part number HXA097, the Hitachi style fitment, 12V system voltage, 130A output, twin leg mounting, and the listed measurements including 80mm inside mounting legs and 156mm mount centre-to-centre.
