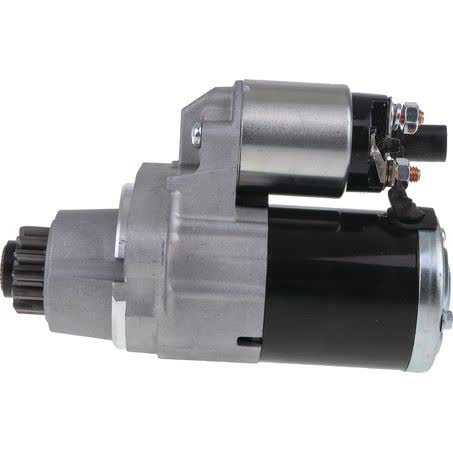

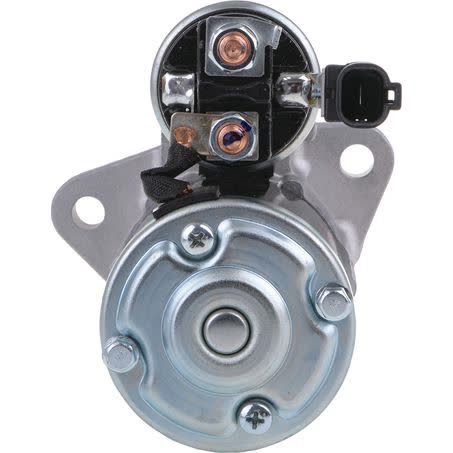

OEX Starter Motor 12V 13 Tooth CCW Mitsubishi Style MXS2055

The OEX starter motor MXS2055 is a new 12V unit with 13 teeth and counter-clockwise rotation, supplied in Mitsubishi style form for applications that match this configuration. Key physical details include a 2 hole starter mount, 92mm mount centres, 75mm flange diameter and an overall length of 200mm.

This starter motor weighs 3.0kg, uses a 40mm pinion diameter and has a 51mm pinion at rest. The mount hole diameter is 11mm, so it is important to compare the mounting pattern and dimensions with the unit being replaced before ordering.

OEX states that its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with supply from ISO certified factories. The unit is backed by a 3 year passenger / 1 year commercial warranty, which is a useful reference point for buyers comparing new rotating electrical parts.

Although this unit is listed as Mitsubishi style and suits Mitsubishi as a unit make, starter motor fitment still depends on the exact application details, tooth count, rotation, mounting style and dimensions. Checking the part number MXS2055 against the removed starter is the safest way to confirm the match.

Key Features

• 12V starter motor
• 13 tooth pinion
• Counter-clockwise rotation
• Mitsubishi style unit
• New unit, not remanufactured
• 2 hole starter mount

Specifications

• Part number: MXS2055
• Voltage: 12V
• Type: Starter motor
• Number of teeth: 13
• Rotation: CCW
• Starter mount type: 2 hole
• Mount centres A: 92mm
• Flange diameter: 75mm

Fitment and application checks

• NISSAN: MAXIMA, MAXIMA 2003, MAXIMA 2004, MAXIMA 2005, MAXIMA 2006, plus other listed applications

Application and Buying Notes

Starter motor selection is usually determined by the part number, rotation, tooth count, mounting pattern and physical dimensions. For this unit, the important checks are MXS2055, 12V, 13 teeth, CCW rotation, 2 hole mount, 92mm mount centres and 75mm flange diameter.

The pinion at rest measurement is 51mm and the pinion diameter is 40mm, so the replacement starter needs to match the space available around the bell housing and the engagement setup on the vehicle. These measurements are especially useful when comparing a removed unit side by side with the new part.

Because this starter is described as Mitsubishi style and suits Mitsubishi as a unit make, it should only be considered after confirming the exact application details. Starter motors can look similar across different vehicles, but small differences in rotation, mounting ear layout or pinion position can make the wrong unit incompatible.

If the existing starter is still available, compare the label, mounting face, hole spacing and overall length before fitting. The 200mm overall length and 3.0kg weight are practical reference points when checking clearances and handling during installation.

For commercial use, the warranty is listed as 1 year, while passenger applications are listed as 3 years. That distinction may matter if the vehicle sees different duty cycles or if the buyer is comparing coverage across similar replacement parts.

OEX notes that its products come from ISO certified factories and are sourced from both original equipment manufacturers and aftermarket suppliers. That supports the quality position of the part, but it does not replace the need to verify the physical fit and application details on the vehicle.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2055 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 92mm, Number of Teeth 13, Pinion at Rest 51mm, Rotation CCW, Voltage 12, Starter Mount Type 2 Hole, Weight 3.0kg.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. MXS2055, Brand OEX, Description OEX Starter Motor 12V 13Th CCW Mitsubishi Style, Flange Diameter 75mm, Mount Hole Diameter 11, Overall Length 200mm, Pinion Diameter 40mm, Suits Unit Make Mitsubishi, New / Reman. New.

OEX Starter Motor 12V 13Th CCW Mitsubishi Style. Part number MXS2055 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2055, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include NISSAN MAXIMA, NISSAN MAXIMA 2003, NISSAN MAXIMA 2004, NISSAN MAXIMA 2005. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Please confirm fitment by matching part number MXS2055, 12V voltage, 13 tooth count, CCW rotation, 2 hole mount and the listed dimensions with the removed starter and vehicle application before purchase.

FAQ

What is the part number for this starter motor?

The part number is MXS2055.

What voltage does this starter motor use?

It is a 12V starter motor.

How many teeth does the pinion have?

The pinion has 13 teeth.

What is the rotation direction?

The rotation is counter-clockwise, listed as CCW.

Is this a new or remanufactured starter motor?

This unit is listed as new.

What warranty is listed for this starter motor?

The warranty is listed as 3 years for passenger use and 1 year for commercial use.
