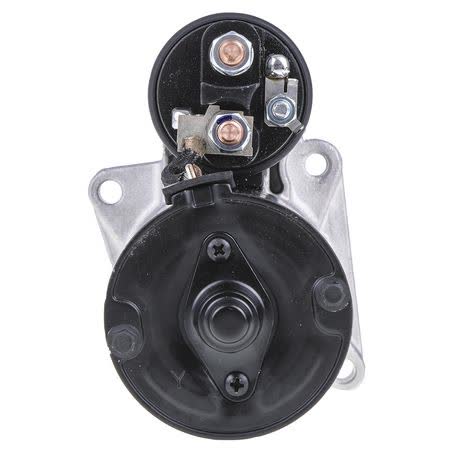

OEX Starter Motor 12V 9 Tooth CW Bosch Style BXS0150

The OEX Starter Motor BXS0150 is a 12V unit with 9 teeth and clockwise rotation, built in Bosch style for applications that suit a Bosch starter motor layout. It is a new starter motor with a 2kW power rating and a 3 hole starter mount type, so the key checks are voltage, rotation, tooth count and mounting dimensions before ordering.

For physical matching, this starter motor lists mount centres of 116mm on A and 82mm on C, with an 82mm flange diameter, 45mm nose cone length and 238mm overall length. The pinion diameter is 30mm, the mount hole diameter is 9mm, and the pinion at rest measures 8.5mm. Those dimensions are the practical points to compare against the vehicle’s original unit.

Fitment data supplied for this part includes Alfa Romeo 147 and 159 applications, plus Fiat Doblo, Punto and Ritmo applications. That fitment detail is useful, but the correct match should still be confirmed against the original starter motor specifications and the part number BXS0150 before purchase.

Key Features

• 12V starter motor
• 9 tooth pinion
• Clockwise rotation
• Bosch style unit
• 3 hole starter mount
• New replacement part

Specifications

• Brand: OEX
• Part No.: BXS0150
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 9
• Power rating: 2kW
• Starter mount type: 3 hole

Fitment references supplied

• Alfa Romeo 147
• Alfa Romeo 159
• Fiat Doblo
• Fiat Punto
• Fiat Ritmo

Application and Buying Notes

When comparing this starter motor, check the 12V system requirement first, then confirm the 9 tooth pinion, clockwise rotation and 3 hole mounting style. The listed mount centres of 116mm and 82mm, together with the 82mm flange diameter and 45mm nose cone length, are the measurements most likely to determine whether it will physically align with the vehicle’s existing starter position.

Because this unit is described as Bosch style and suitable for Bosch unit make applications, the original starter or removed unit should be matched carefully before purchase. A Bosch style description does not replace a direct inspection of the old motor, so the safest approach is to compare the part number BXS0150, the mount hole diameter of 9mm, and the overall length of 238mm against the part being replaced.

The supplied fitment references point to Alfa Romeo 147 and 159, plus Fiat Doblo, Punto and Ritmo applications, but vehicle fitment can vary within those model ranges. Engine type, build year, transmission and previous starter replacement history can all affect the correct choice, so the original part number and dimensions should still be the final check.

For commercial use, the warranty differs from passenger use: 3 years for passenger applications and 1 year for commercial applications. If the starter is being fitted to a vehicle used for work, that warranty split is worth noting before the job is booked in. It is also worth confirming that the vehicle is set up for a dry clutch application, as listed here.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0150 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 116mm, Mount Centres C 82mm, Nose Cone Length 45mm, Overall Length 238mm, Pinion Diameter 30mm, Rotation CW, Voltage 12.

Additional published details for cross-checking include Starter Mount Type 3 Hole, Product Group 2 STARTER MOTORS, Part No. BXS0150, Brand OEX, Description OEX Starter Motor 12V 9Th CW Bosch Style, Flange Diameter 82mm, Mount Centres B 82mm, Mount Hole Diameter 9, Number of Teeth 9.

OEX Starter Motor 12V 9Th CW Bosch Style. Part number BXS0150 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0150, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include ALFA ROMEO 147, ALFA ROMEO 147 2005, ALFA ROMEO 147 2006, ALFA ROMEO 147 2007, FIAT DOBLO, FIAT DOBLO 2010. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm fitment by matching the part number BXS0150, the 12V rating, 9 tooth count, clockwise rotation, 3 hole mount type, and the listed dimensions against the original starter motor before ordering.

FAQ

What is the part number for this starter motor?

The part number listed for this OEX starter motor is BXS0150. For this listing, part number BXS0150 is the main reference point. Listed voltage is 12. Published fitment references include ALFA ROMEO 147, ALFA ROMEO 147 2005, ALFA ROMEO 147 2006. These details should still be checked against the original unit before ordering.

Is this a 12V starter motor?

Yes. The listed voltage is 12V. For this listing, part number BXS0150 is the main reference point. Listed voltage is 12. Published fitment references include ALFA ROMEO 147, ALFA ROMEO 147 2005, ALFA ROMEO 147 2006. These details should still be checked against the original unit before ordering.

What rotation does this starter motor have?

It is listed as clockwise, shown as CW. For this listing, part number BXS0150 is the main reference point. Listed voltage is 12. Published fitment references include ALFA ROMEO 147, ALFA ROMEO 147 2005, ALFA ROMEO 147 2006. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The starter motor has 9 teeth. For this listing, part number BXS0150 is the main reference point. Listed voltage is 12. Published fitment references include ALFA ROMEO 147, ALFA ROMEO 147 2005, ALFA ROMEO 147 2006. These details should still be checked against the original unit before ordering.

Which vehicles are referenced in the supplied fitment data?

The supplied fitment references include Alfa Romeo 147 and 159, plus Fiat Doblo, Punto and Ritmo applications. For this listing, part number BXS0150 is the main reference point. Listed voltage is 12. Published fitment references include ALFA ROMEO 147, ALFA ROMEO 147 2005, ALFA ROMEO 147 2006. These details should still be checked against the original unit before ordering.

What warranty is listed for this starter motor?

The listed warranty is 3 years for passenger applications and 1 year for commercial applications. For this listing, part number BXS0150 is the main reference point. Listed voltage is 12. Published fitment references include ALFA ROMEO 147, ALFA ROMEO 147 2005, ALFA ROMEO 147 2006. These details should still be checked against the original unit before ordering.
