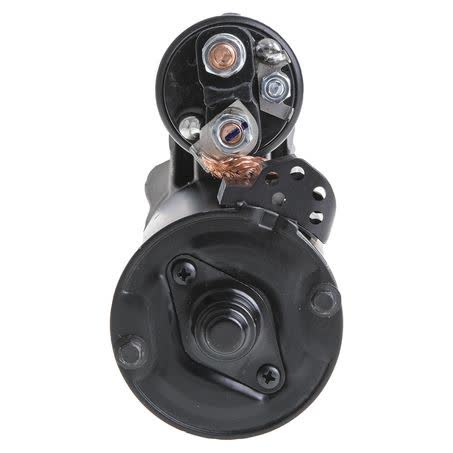

OEX Starter Motor 12V 10T CW Bosch Style BXS0162

The OEX Starter Motor BXS0162 is a new 12V starter motor with 10 teeth, clockwise rotation, and a 2.0kW power rating. It is listed as a Bosch style unit and suits Bosch applications, so matching the part number and starter layout is the safest way to confirm it is the right replacement.

This unit uses a 2 hole starter mount with 89mm mount centres and an M10x1.5 mount hole diameter. Key dimensions include a 60mm nose cone length, 60mm flange diameter, 248mm overall length, and a 27mm pinion diameter with the pinion at rest also listed as 27mm.

OEX lists this starter motor as a new rotating electrical part with a dry clutch arrangement and a weight of 3.4kg. Warranty coverage is stated as 3 years for passenger use and 1 year for commercial use, which gives a clear reference point when comparing against other Bosch style starter options.

The product is supplied by OEX and identified under part number BXS0162. If you are replacing an existing starter, checking the original unit’s mounting style, rotation direction, tooth count, and dimensions is important before ordering, especially where the Bosch style application needs to be matched accurately.

Key Features

• 12V starter motor
• 10 tooth pinion
• Clockwise rotation
• 2 hole starter mount
• Bosch style unit
• New unit, not remanufactured

Specifications

• Voltage: 12V
• Power rating: 2.0kW
• Number of teeth: 10
• Rotation: CW
• Starter mount type: 2 hole
• Mount centres A: 89mm
• Mount hole diameter: M10x1.5
• Nose cone length: 60mm

Fitment guidance

• Suits Bosch applications
• Do not rely on model name alone; confirm the existing starter against part number BXS0162
• Check 12V system requirement before ordering
• Confirm 10 tooth pinion count and clockwise rotation
• Verify 2 hole mounting, 89mm mount centres, and M10x1.5 mount hole diameter
• Compare the 60mm nose cone length, 60mm flange diameter, and 248mm overall length with the removed unit

Application and Buying Notes

For this starter motor, the most important checks are the part number BXS0162, the Bosch style application, and the physical mounting details. The unit is 12V, 10 tooth, clockwise rotation, and uses a 2 hole mount with 89mm mount centres, so those points should match the original starter before you place an order.

The listed dimensions matter because starter motors that look similar can still differ in nose cone length, flange diameter, overall length, or pinion size. This unit is shown with a 60mm nose cone length, 60mm flange diameter, 248mm overall length, and a 27mm pinion diameter, which should be checked carefully against the removed part.

If the vehicle has been altered, or if the original starter has been changed previously, compare the old unit rather than relying only on the vehicle badge. The fitment data supplied here points to Bosch applications, but correct selection still depends on matching the mounting pattern, tooth count, rotation, and voltage, especially on a 12V system.

The warranty is stated as 3 years for passenger use and 1 year for commercial use. That does not replace fitment checking, but it does provide a useful commercial reference when comparing this new OEX unit with other starter motors in the same Bosch style category.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0162 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 89mm, Nose Cone Length 60mm, Overall Length 248mm, Pinion Diameter 27mm, Rotation CW, Voltage 12, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Weight 3.4kg, Product Group 1 ROTATING ELECTRICAL, Part No. BXS0162, Brand OEX, Description OEX Starter Motor 12V 10Th CW Bosch Style, Flange Diameter 60mm, Mount Hole Diameter M10x1.5, Number of Teeth 10, Pinion at Rest 27mm, Power Rating 2.0kW.

OEX Starter Motor 12V 10Th CW Bosch Style. Part number BXS0162 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0162, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Please confirm fitment using part number BXS0162, Bosch application details, 12V system specification, 10 tooth count, clockwise rotation, and the mounting and dimensional measurements before purchase.

FAQ

What type of part is the OEX BXS0162?

It is a starter motor in the rotating electrical group. The listing identifies it as a new 12V starter motor with Bosch style application and part number BXS0162.

Is this starter motor new or remanufactured?

It is listed as new. The specification line states New / Reman. as New.

What are the key electrical and drive specifications?

The key specifications are 12V, 2.0kW power rating, 10 teeth, and clockwise rotation.

What mounting details are listed for this starter?

It has a 2 hole starter mount, 89mm mount centres, and an M10x1.5 mount hole diameter.

What are the main dimensions?

The listed dimensions are 60mm nose cone length, 60mm flange diameter, 248mm overall length, and 27mm pinion diameter. Pinion at rest is also listed as 27mm.

What warranty is stated for this part?

The warranty is stated as 3 years for passenger use and 1 year for commercial use.
