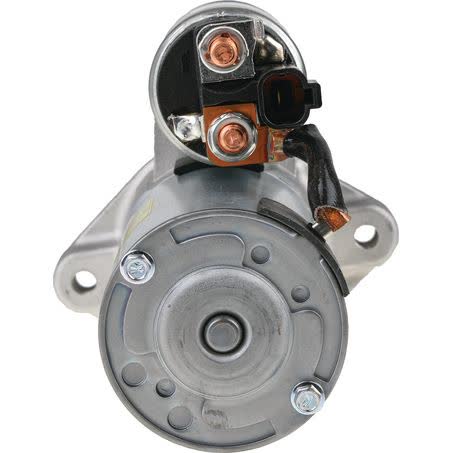

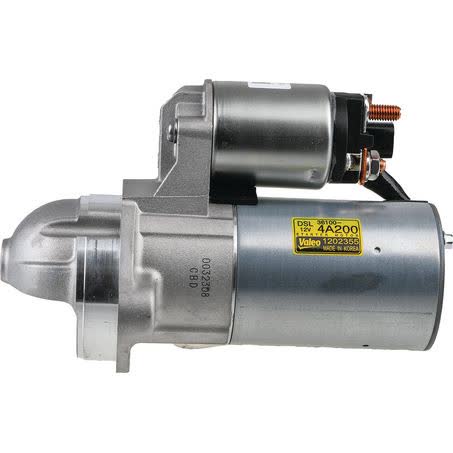

OEX Starter Motor 12V 11T CW Valeo VXS933

The OEX starter motor VXS933 is a 12V, clockwise rotating unit with 11 teeth and a 2.2kW power rating. It is listed as a new starter motor for Valeo applications, with a 78mm flange diameter and 105mm mount centres, so the physical mounting details can be checked against the vehicle before purchase.

This unit uses a 2 hole starter mount type and M10 x 1.25 mount hole diameter, with a 34mm pinion diameter and 18mm pinion at rest. Those measurements are important on any starter changeover because the mounting pattern, pinion size and rotation direction must match the original unit for a proper installation.

OEX states this product is made using OE components for fit and function, and it is backed by a one year warranty. It is sourced through OEX’s supply chain from market leading original equipment manufacturers and aftermarket suppliers, with manufacturing from ISO9001 certified factories to support engineering, testing and quality control procedures.

Key Features

• 12V starter motor
• 11 tooth pinion
• Clockwise rotation
• 2.2kW power rating
• New unit
• 2 hole starter mount

Specifications

• Brand: OEX
• Part No.: VXS933
• Type: Starter Motor
• Voltage: 12V
• Rotation: CW
• Number of Teeth: 11
• Power Rating: 2.2kW
• Mount Centres A: 105mm

Fitment guidance

• Hyundai iLoad / H-1
• Hyundai iLoad / H-1 2008
• Hyundai iLoad / H-1 2012

Application and Buying Notes

When replacing a starter motor, the part number VXS933 and the key dimensions are the first checks to make. The 12V system, 11 tooth pinion, clockwise rotation and 2 hole mount all need to line up with the original starter, and the 105mm mount centres plus 78mm flange diameter help confirm whether the unit will physically suit the application.

The listed fitment references include Hyundai iLoad / H-1, including 2008 and 2012 applications, but that still needs to be matched to the exact vehicle details. Confirm the starter that is being replaced is a Valeo unit or equivalent specification, and compare the pinion diameter of 34mm, pinion at rest of 18mm and M10 x 1.25 mount hole size before ordering.

This starter is a new OEX unit, not remanufactured, and it carries a one year warranty. That can be useful where you want a fresh replacement rather than a rebuilt assembly, but it is still important to verify the mounting style, rotation and power rating of 2.2kW against the vehicle’s original starter to avoid a mismatch.

If you are cross-checking from an existing part, the most reliable identifiers here are VXS933, Valeo, 12V, 11 teeth and CW rotation. Those details should be compared with the removed starter and the vehicle application records so you can confirm the part is the correct physical and electrical match for the job.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXS933 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty One Year, Mount Centres A 105mm, Number of Teeth 11, Pinion Diameter 34mm, Rotation CW, Voltage 12, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. VXS933, Brand OEX, Description OEX Starter Motor 12V 11Th CW Valeo, Flange Diameter 78mm, Mount Hole Diameter M10 x 1.25, Pinion at Rest 18mm, Power Rating 2.2kW, Suits Unit Make Valeo, Item Type Starter Motor.

OEX Starter Motor 12V 11Th CW Valeo. Part number VXS933 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number VXS933, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HYUNDAI ILOAD / H-1, HYUNDAI ILOAD / H-1 2008, HYUNDAI ILOAD / H-1 2012. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Please confirm fitment by checking part number VXS933, the Valeo application, 12V rating, 11 tooth count, clockwise rotation, 2 hole mount and the listed mounting dimensions before ordering.

FAQ

What is the part number for this starter motor?

The part number is VXS933. For this listing, part number VXS933 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI ILOAD / H-1, HYUNDAI ILOAD / H-1 2008, HYUNDAI ILOAD / H-1 2012. These details should still be checked against the original unit before ordering.

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number VXS933 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI ILOAD / H-1, HYUNDAI ILOAD / H-1 2008, HYUNDAI ILOAD / H-1 2012. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number VXS933 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI ILOAD / H-1, HYUNDAI ILOAD / H-1 2008, HYUNDAI ILOAD / H-1 2012. These details should still be checked against the original unit before ordering.

What rotation does this starter motor have?

It has clockwise rotation, shown as CW. For this listing, part number VXS933 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI ILOAD / H-1, HYUNDAI ILOAD / H-1 2008, HYUNDAI ILOAD / H-1 2012. These details should still be checked against the original unit before ordering.

What vehicle application is listed?

The fitment references include Hyundai iLoad / H-1, including 2008 and 2012 applications. For this listing, part number VXS933 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI ILOAD / H-1, HYUNDAI ILOAD / H-1 2008, HYUNDAI ILOAD / H-1 2012. These details should still be checked against the original unit before ordering.

What mounting details should I check before buying?

Check the 2 hole starter mount type, 105mm mount centres, 78mm flange diameter and M10 x 1.25 mount hole diameter, along with the 11 tooth pinion and 12V CW specification. For this listing, part number VXS933 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI ILOAD / H-1, HYUNDAI ILOAD / H-1 2008, HYUNDAI ILOAD / H-1 2012. These details should still be checked against the original unit before ordering.
