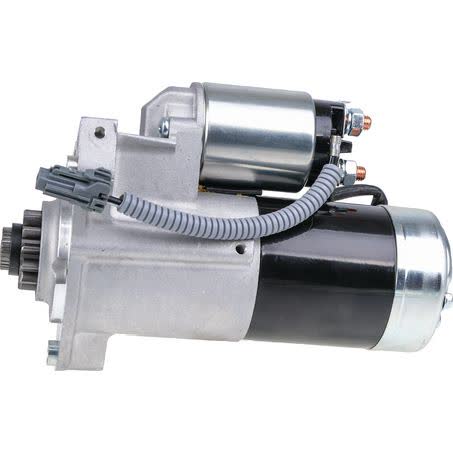

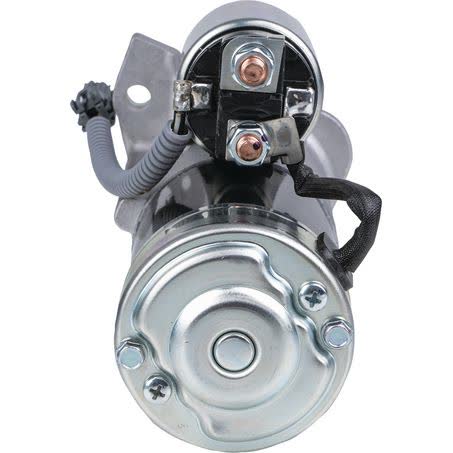

OEX Starter Motor 12V 13 Tooth CW Mitsubishi Style MXS2078

The OEX MXS2078 is a new 12V starter motor in Mitsubishi style, set up with clockwise rotation and a 13 tooth pinion. It is a starter motor unit sold each, with a 1.8kW power rating, 2 hole starter mount type, and a 70mm flange diameter.

Key dimensions on this unit include 106mm mount centres, a 31.6mm nose cone length, 228mm overall length, and a 40mm pinion diameter. The pinion at rest measures 22mm, and the mount hole diameter is 10.5mm.

This part is listed for Mitsubishi applications, so the safest way to confirm suitability is to match the part number MXS2078, the 12V electrical specification, the clockwise rotation, and the 13 tooth starter configuration against the vehicle or removed unit. Starter fitment needs to be checked carefully, even where the general style appears similar.

Key Features

• New starter motor
• 12V system
• Clockwise rotation
• 13 tooth pinion
• 2 hole starter mount
• 1.8kW power rating

Specifications

• Part number: MXS2078
• Brand: OEX
• Product type: Starter motor
• Voltage: 12V
• Rotation: CW
• Number of teeth: 13
• Power rating: 1.8kW
• Starter mount type: 2 hole

Confirmed application details

• NISSAN: NAVARA, NAVARA 2005, NAVARA 2006, NAVARA 2007, NAVARA 2008, plus other listed applications

Application and Buying Notes

Before ordering, compare the MXS2078 part number with the starter already fitted to the vehicle. For a starter motor, the important checks are not just the make name but also voltage, rotation, tooth count, mount pattern, and the key dimensions such as the 106mm mount centres and 70mm flange diameter.

This unit is 12V, clockwise rotating, and built with a 13 tooth pinion. Those details need to line up with the replacement unit or the vehicle application. A starter with the wrong rotation or tooth count may physically mount but still be unsuitable for the job.

The listed mount type is 2 hole, with 10.5mm mount hole diameter. If the existing starter has a different bolt pattern, different nose cone length, or different overall length, it should not be assumed to be interchangeable. Checking the removed unit against the measurements provided is the most reliable step.

OEX lists this starter as a Mitsubishi style unit and as suitable for Mitsubishi applications. That gives a useful starting point, but it is still best practice to verify the exact application by part number rather than by brand or style alone. Automotive starters are often close in appearance while differing in critical dimensions.

The warranty shown is 3 years for passenger use and 1 year for commercial use. Warranty terms do not replace fitment checks, so confirm the unit is correct for the vehicle before installation. Once a starter is fitted and used, any mismatch can create extra labour and delay.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number MXS2078 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 106mm, Nose Cone Length 31.6mm, Overall Length 228mm, Pinion Diameter 40mm, Rotation CW, Voltage 12, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. MXS2078, Brand OEX, Description OEX Starter Motor 12V 13Th CW Mitsubishi Style, Flange Diameter 70mm, Mount Hole Diameter 10.5, Number of Teeth 13, Pinion at Rest 22mm, Power Rating 1.8kW.

OEX Starter Motor 12V 13Th CW Mitsubishi Style. Part number MXS2078 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number MXS2078, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Compatibility note: Confirm fitment using part number MXS2078 and the listed application details, including 12V, CW rotation, 13 teeth, 2 hole mount type, and the measured dimensions before purchase or installation.

FAQ

What is the part number for this starter motor?

The part number is MXS2078. For this listing, part number MXS2078 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN NAVARA, NISSAN NAVARA 2005, NISSAN NAVARA 2006. These details should still be checked against the original unit before ordering.

What voltage is this starter motor?

It is a 12V starter motor. For this listing, part number MXS2078 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN NAVARA, NISSAN NAVARA 2005, NISSAN NAVARA 2006. These details should still be checked against the original unit before ordering.

What rotation does this starter motor use?

This unit is clockwise rotation, shown as CW. For this listing, part number MXS2078 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN NAVARA, NISSAN NAVARA 2005, NISSAN NAVARA 2006. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 13 teeth. For this listing, part number MXS2078 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN NAVARA, NISSAN NAVARA 2005, NISSAN NAVARA 2006. These details should still be checked against the original unit before ordering.

What vehicle make is it listed for?

It is listed for Mitsubishi applications and described as Mitsubishi style. For this listing, part number MXS2078 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN NAVARA, NISSAN NAVARA 2005, NISSAN NAVARA 2006. These details should still be checked against the original unit before ordering.

What warranty is supplied with this starter motor?

The warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number MXS2078 is the main reference point. Listed voltage is 12. Published fitment references include NISSAN NAVARA, NISSAN NAVARA 2005, NISSAN NAVARA 2006. These details should still be checked against the original unit before ordering.
