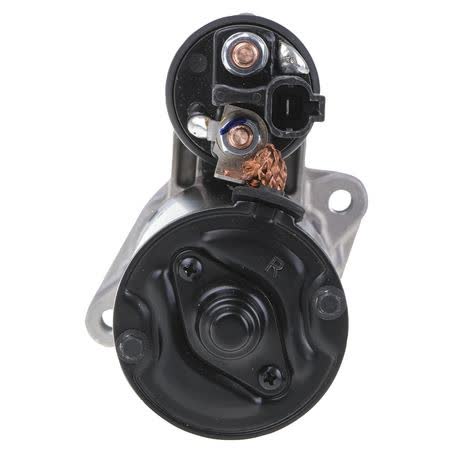

OEX Starter Motor 12V 9T CW BXS0167 – Stop/start Applications

The OEX BXS0167 starter motor is a new 12V unit with 9 teeth, clockwise rotation and a 1.7kW power rating. It is listed for stop/start applications and is supplied as a dry-clutch starter with a 2-hole mount arrangement.

Key dimensions for checking against the original unit include 100mm mount centres, a 77mm flange diameter, 56mm nose cone length, 230mm overall length and a 30mm pinion diameter. The pinion at rest measures 21mm, and the mount hole diameter is M10 x 1.25.

This starter motor suits Bosch unit make applications and is identified by part number BXS0167. The listed weight is 3.32kg, and the warranty is 3 years for passenger use or 1 year for commercial use.

Key Features

• 12V starter motor
• 9-tooth pinion
• Clockwise rotation
• 1.7kW power rating
• New unit
• Dry clutch application

Specifications

• Voltage: 12V
• Power rating: 1.7kW
• Rotation: CW
• Number of teeth: 9
• Starter mount type: 2 hole
• Mount centres A: 100mm
• Flange diameter: 77mm
• Nose cone length: 56mm

Confirmed Application Guidance

• Listed fitment families include Hyundai i20, Hyundai i30 and Hyundai Veloster.
• Listed fitment families also include Kia Cee’d, Kia Rio and Kia Soul.
• Fitment data provided includes multiple model-year references within Hyundai i20, Hyundai i30 and Kia Cee’d / Kia Rio ranges.
• The product description specifically states stop/start applications and advises confirmation by OE number.

Application and Buying Notes

Before ordering, compare the part number BXS0167 and the original starter details against your vehicle’s existing unit. The important checks here are 12V, clockwise rotation, 9 teeth, 2-hole mount, 100mm mount centres and the Bosch unit make note.

The dimensions matter because starter motors can look similar but differ in mounting and engagement details. Check the 77mm flange diameter, 56mm nose cone length, 230mm overall length and M10 x 1.25 mount hole size before fitting.

Use the OE number from the old unit or the vehicle application details as the final check. If you are matching against a Bosch starter, the unit make note and listed measurements give a practical comparison point before purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0167 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 100mm, Nose Cone Length 56mm, Overall Length 230mm, Pinion Diameter 30mm, Rotation CW, Voltage 12, New / Reman. New.

Additional published details for cross-checking include Wet / Dry Clutch Dry, Product Group 2 STARTER MOTORS, Part No. BXS0167, Brand OEX, Description OEX Starter Motor 12V 9Th CW - Stop/Start applications - Confirm By OE Number., Flange Diameter 77mm, Mount Hole Diameter M10 x 1.25, Number of Teeth 9, Pinion at Rest 21mm.

OEX Starter Motor 12V 9Th CW - Stop/Start applications - Confirm By OE Number.. Part number BXS0167 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0167, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include HYUNDAI I20, HYUNDAI I20 2008, HYUNDAI I20 2009, HYUNDAI I20 2010, KIA CEE'D, KIA CEE'D 2007. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm compatibility using part number BXS0167, OE number details, stop/start application information and the listed measurements before ordering.

FAQ

What is the part number for this starter motor?

The part number is BXS0167. For this listing, part number BXS0167 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI I20, HYUNDAI I20 2008, HYUNDAI I20 2009. These details should still be checked against the original unit before ordering.

Is this a 12V starter motor?

Yes. The listed voltage is 12V. For this listing, part number BXS0167 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI I20, HYUNDAI I20 2008, HYUNDAI I20 2009. These details should still be checked against the original unit before ordering.

What rotation does this starter motor have?

It is clockwise rotation, listed as CW. For this listing, part number BXS0167 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI I20, HYUNDAI I20 2008, HYUNDAI I20 2009. These details should still be checked against the original unit before ordering.

How many teeth does the pinion have?

The pinion has 9 teeth. For this listing, part number BXS0167 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI I20, HYUNDAI I20 2008, HYUNDAI I20 2009. These details should still be checked against the original unit before ordering.

What vehicles are listed in the fitment information?

The fitment information includes Hyundai i20, Hyundai i30 and Hyundai Veloster, plus Kia Cee’d, Kia Rio and Kia Soul. For this listing, part number BXS0167 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI I20, HYUNDAI I20 2008, HYUNDAI I20 2009. These details should still be checked against the original unit before ordering.

What should I check before buying?

Check the OE number, part number BXS0167, 12V rating, CW rotation, 9 teeth, 2-hole mount and the listed measurements including 100mm mount centres, 77mm flange diameter and 230mm overall length. For this listing, part number BXS0167 is the main reference point. Listed voltage is 12. Published fitment references include HYUNDAI I20, HYUNDAI I20 2008, HYUNDAI I20 2009. These details should still be checked against the original unit before ordering.
