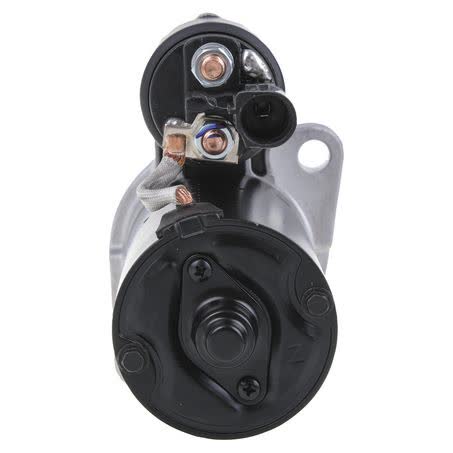

OEX Starter Motor 12V 10T CCW Bosch Style BXS0168

The OEX Starter Motor BXS0168 is a new 12V starter motor with 10 teeth, counter clockwise rotation, and a Bosch suitability reference. It is listed with a 1.7kW power rating, a 2-hole starter mount, and a dry clutch application, so it suits buyers matching a replacement starter against measured and identified specifications rather than appearance alone.

Key dimensions for checking installation are a 112mm mount centres measurement, 67mm nose cone length, 244mm overall length, 76mm flange diameter, and 12.5mm mount hole diameter. The pinion diameter is 28mm and pinion at rest is 62.5mm, which are important checkpoints when confirming compatibility with the vehicle and existing starter location.

OEX states its products are sourced from market leading original equipment manufacturers and aftermarket suppliers, with production from ISO certified factories and support from a comprehensive nationwide warranty. The warranty listed here is 3 years for passenger use and 1 year for commercial use, making the part suitable for buyers who want a new replacement starter with clearly stated application details.

Key Features

• New starter motor
• 12V electrical system
• 10-tooth pinion
• Counter clockwise rotation
• Bosch suitability reference
• 2-hole starter mount

Specifications

• Part No.: BXS0168
• Brand: OEX
• Product type: Starter motor
• Unit of measure: Each
• Voltage: 12V
• Rotation: CCW
• Number of teeth: 10
• Power rating: 1.7kW

Fitment applications listed

• Audi A3
• Audi TT
• Skoda Octavia
• Skoda Yeti
• Volkswagen Caddy
• Volkswagen Golf
• Volkswagen Jetta
• Volkswagen Multivan

Application and Buying Notes

When ordering a starter motor, the safest check is to match the part number BXS0168 and then compare the physical measurements against the unit being removed. The listed 12V system, 10-tooth pinion, CCW rotation, 2-hole mount, 112mm mount centres, and 76mm flange diameter all need to line up with the vehicle's existing starter arrangement before fitment is assumed.

The Bosch suitability reference is useful, but it should still be checked against the exact vehicle application and the original starter's layout. Even within the same make range, starter fitment can vary with engine and build details, so the 67mm nose cone length, 244mm overall length, and 12.5mm mount hole diameter are practical comparison points during identification.

This starter is supplied new, not remanufactured, and it is listed as a dry clutch application. Those details matter when replacing a worn unit, especially if the previous starter showed signs of incorrect engagement, noise, or physical mismatch. Confirm the pinion diameter of 28mm and pinion at rest of 62.5mm if you are comparing to an existing starter before purchase.

The fitment list includes Audi A3, Audi TT, Skoda Octavia, Skoda Yeti, and several Volkswagen applications such as Caddy, Golf, Jetta, Passat, Tiguan, Multivan, Transporter, and Transporter T6 / Caravelle. Use that as a guide only, then verify the exact application and dimensions against the vehicle rather than relying on model name alone.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number BXS0168 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 112mm, Nose Cone Length 67mm, Overall Length 244mm, Pinion Diameter 28mm, Rotation CCW, Voltage 12, Starter Mount Type 2 Hole.

Additional published details for cross-checking include Product Group 2 STARTER MOTORS, Part No. BXS0168, Brand OEX, Description OEX Starter Motor 12V 10Th CCW Bosch Style, Flange Diameter 76mm, Mount Hole Diameter 12.5, Number of Teeth 10, Pinion at Rest 62.5mm, Power Rating 1.7kW.

OEX Starter Motor 12V 10Th CCW Bosch Style. Part number BXS0168 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number BXS0168, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include AUDI A3, AUDI A3 2003, AUDI A3 2004, AUDI A3 2005, SKODA OCTAVIA, SKODA OCTAVIA 2004. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

Compatibility note: Confirm compatibility by matching part number BXS0168, 12V, 10-tooth CCW configuration, Bosch suitability, mount type, and all measured dimensions against the vehicle before ordering.

FAQ

Is this starter motor new or remanufactured?

It is listed as new. For this listing, part number BXS0168 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 2003, AUDI A3 2004. These details should still be checked against the original unit before ordering.

What is the part number?

The part number is BXS0168. For this listing, part number BXS0168 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 2003, AUDI A3 2004. These details should still be checked against the original unit before ordering.

What voltage does this starter motor use?

It is a 12V starter motor. For this listing, part number BXS0168 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 2003, AUDI A3 2004. These details should still be checked against the original unit before ordering.

What rotation does it have?

It is counter clockwise, shown as CCW. For this listing, part number BXS0168 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 2003, AUDI A3 2004. These details should still be checked against the original unit before ordering.

What warranty is listed?

The listed warranty is 3 years for passenger use and 1 year for commercial use. For this listing, part number BXS0168 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 2003, AUDI A3 2004. These details should still be checked against the original unit before ordering.

Which measurements are most important to check before buying?

The key measurements listed are 112mm mount centres, 67mm nose cone length, 244mm overall length, 76mm flange diameter, 12.5mm mount hole diameter, 28mm pinion diameter, and 62.5mm pinion at rest. For this listing, part number BXS0168 is the main reference point. Listed voltage is 12. Published fitment references include AUDI A3, AUDI A3 2003, AUDI A3 2004. These details should still be checked against the original unit before ordering.
