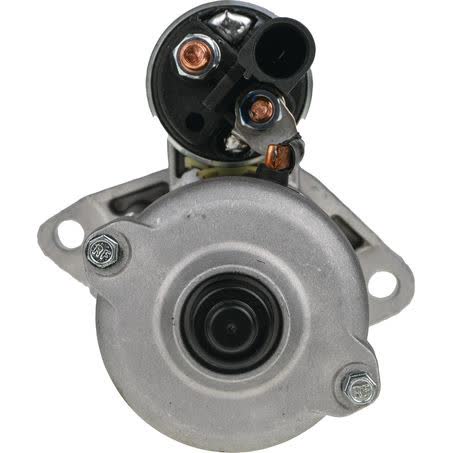

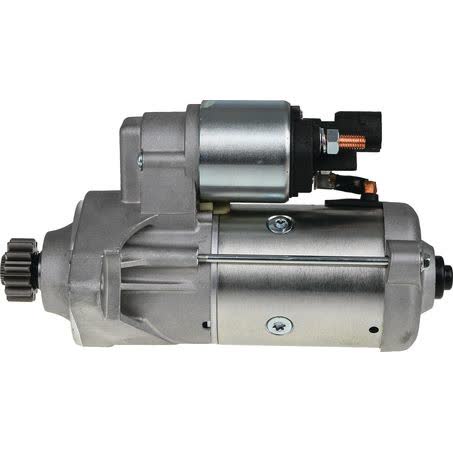

OEX Starter Motor 12V 13T CCW Valeo Style VXS938

The OEX VXS938 starter motor is a 12V unit with 13 teeth and counter-clockwise rotation, built in a Valeo style layout for applications that match those key dimensions and mounting details. It is a new starter motor, supplied each, with a 2kW power rating and a 2-hole starter mount type.

Important physical checks for this starter include a 119mm mount centre measurement, 79mm flange diameter, 47mm nose cone length, 243mm overall length, 35mm pinion diameter, and 41.5mm pinion at rest. Those dimensions matter just as much as voltage and tooth count when confirming a replacement starter.

The listed part number is VXS938, and the unit is identified as a Valeo suit unit make. OEX states the product is sourced from market leading original equipment manufacturers and aftermarket suppliers, made in ISO certified factories, and backed by a comprehensive nationwide warranty.

Warranty coverage is listed as 3 years for passenger use and 1 year for commercial use. As with any starter motor, the safest purchase is one matched by part number, rotation, tooth count, mounting style, and the specific measurements already listed on the vehicle or removed unit.

Key Features

• 12V starter motor
• 13-tooth pinion
• Counter-clockwise rotation
• 2kW power rating
• 2-hole starter mount
• New unit

Specifications

• Voltage: 12V
• Power rating: 2kW
• Number of teeth: 13
• Rotation: CCW
• Starter mount type: 2 hole
• Mount centres A: 119mm
• Flange diameter: 79mm
• Nose cone length: 47mm

Fitment guidance

• AUDI: Q3, Q3 2011, Q3 2012, Q3 2013, Q3 2014, plus other listed applications
• BMW: 3, 3 2000, 3 2001, 3 2002, 3 2003, plus other listed applications
• SKODA: SUPERB, SUPERB 2008, SUPERB 2009, SUPERB 2010, SUPERB 2011, plus other listed applications
• VOLKSWAGEN: CADDY, CADDY 2010, CADDY 2011, CADDY 2012, CADDY 2013, plus other listed applications

Application and Buying Notes

Before ordering, compare the part number VXS938 with the starter currently fitted or the number specified for the vehicle. The important matching points here are 12V, 13 teeth, CCW rotation, 2-hole mounting, 119mm mount centres, and the physical dimensions of 79mm flange diameter, 47mm nose cone length, and 243mm overall length.

A starter motor can look similar while still being incorrect in the pinion or mounting arrangement. For this OEX unit, the pinion diameter is 35mm and the pinion at rest is 41.5mm, so those measurements should be checked carefully against the removed unit where possible, especially if the vehicle has had previous repairs or a non-original replacement.

The unit is described as Valeo style and suits Valeo unit make, which helps narrow the application, but it is still best to verify fitment by specification rather than by appearance alone. The listed applications include multiple Audi, BMW, Skoda and Volkswagen models, but the safest confirmation remains the exact starter specification and part number match.

The product is new and carries different warranty coverage depending on use: 3 years for passenger vehicles and 1 year for commercial use. If the vehicle is used commercially or has a higher duty cycle, confirm that the warranty terms and the starter rating suit the intended application before purchase.

Before supply, the safest approach is to confirm the original unit details against the listed part number, voltage, output rating, mounting arrangement, and pulley configuration. That checking process is standard practice in the parts trade because visually similar units can still differ in service-critical ways.

For workshop, fleet, and equipment applications, accurate identification of part number VXS938 helps avoid unnecessary freight, additional labour, and vehicle or machine downtime. Where the application is not straightforward, the original unit, OEM reference, or workshop records should be used as the primary confirmation point.

Relevant published details for this unit include Type STARTER MOTOR, Unit of Measure EACH, Warranty 3yr Passenger 1yr Commercial, Mount Centres A 119mm, Number of Teeth 13, Pinion at Rest 41.5mm, Power Rating 2kW, Suits Unit Make Valeo, New / Reman. New, Wet / Dry Clutch Dry.

Additional published details for cross-checking include Product Group 1 ROTATING ELECTRICAL, Part No. VXS938, Brand OEX, Description OEX Starter Motor 12V 13Th CCW Valeo Style, Flange Diameter 79mm, Nose Cone Length 47mm, Overall Length 243mm, Pinion Diameter 35mm, Rotation CCW, Voltage 12.

OEX Starter Motor 12V 13Th CCW Valeo Style. Part number VXS938 should be checked first. Listed voltage is 12. These details form the core reference points used by parts interpreters when confirming the correct replacement.

For part number VXS938, the normal identification sequence is part number, electrical rating, mounting arrangement, connector or terminal style, and pulley or drive details. Using those checkpoints helps confirm that the listed unit matches the service requirement rather than only looking similar.

For a starter motor in workshop, fleet, trade, agricultural, or construction service, the listed voltage 12 should be checked carefully. Incorrect selection can affect installation time, return freight, and equipment availability.

Available application references include AUDI Q3, AUDI Q3 2011, AUDI Q3 2012, AUDI Q3 2013, BMW 3, BMW 3 2000. Even with application listings, final confirmation should still be based on the exact unit being replaced and the service requirements of the vehicle or machine.

The listed warranty is 3yr Passenger 1yr Commercial. Warranty terms should be considered alongside correct application and part identification, as warranty does not replace fitment confirmation.

Compatibility note: Confirm fitment using the VXS938 part number, 12V system voltage, 13-tooth count, CCW rotation, 2-hole mount type, and the listed measurements before ordering. Vehicle model names alone are not enough to verify this starter motor.

FAQ

What is the part number for this starter motor?

The part number listed is VXS938.

What voltage is the OEX VXS938 starter motor?

It is a 12V starter motor.

How many teeth does the pinion have?

The pinion has 13 teeth.

What rotation direction does this starter motor use?

It is counter-clockwise, shown as CCW.

What mounting style does it use?

It uses a 2-hole starter mount type, with mount centres A of 119mm.

What warranty is listed for this unit?

The listed warranty is 3 years for passenger use and 1 year for commercial use.
